| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/IS09001/SGS |
| Model Number: | YX17-126 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 60 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 350 sets per year |
| Decoiler: | Manual Or Hydraulic | Product Name: | Shutter Roll Forming Machine |
|---|---|---|---|
| Roller Material: | #45 Forged Steel With Chrome | Station: | 14 Stations |
| Drive: | Chain | Container Need: | 1X20GP |
| Steel Thickness: | 0.4-0.7mm | Main Motor: | 4kw |
| Hydraulic Power: | 3kw | ||
| Highlight: | roll former machine,corrugated sheet roll forming machine |
||
Shutter Roll Forming Machine
Profile:
All of our machine profile is customized, below profile is only for your reference.
1. Coil width: according to the final profile
2. Thickness: 0.4-0.7mm
Layout:

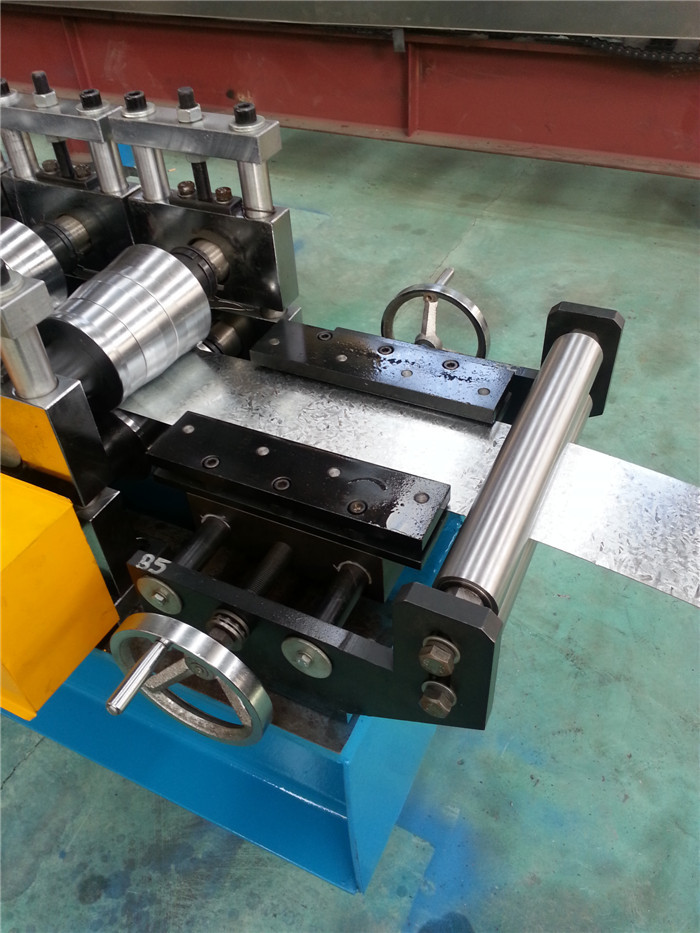

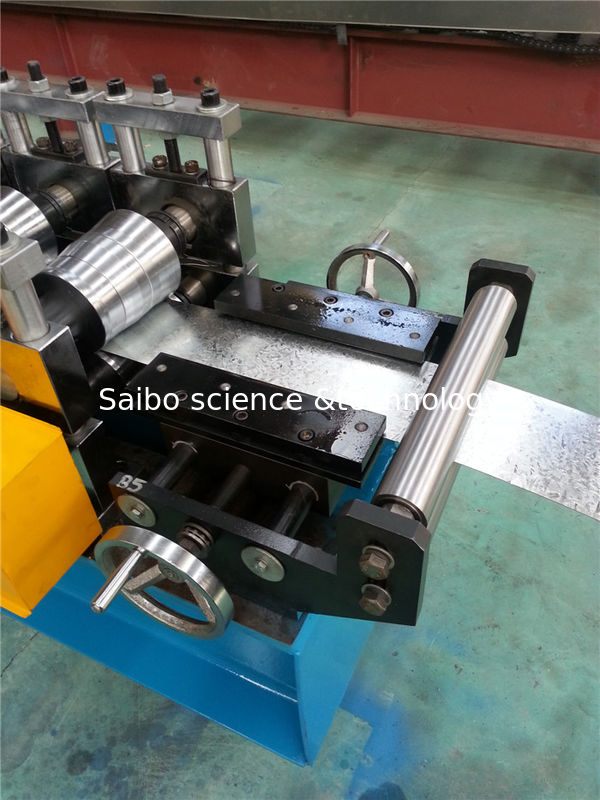

Manual de-coiler—Feeding—Roll Forming—Cutting—Out table
Specifications:
| Item NO |
Description |
Offered specification |
| 1 | Roll Forming Machine |
Shutter
|
| 2 | Coil width | According to the final profile |
| 3 | Rolling Speed | 12-15m/min(not include cutting time) |
| 4 | Rolling Thickness | 0.4-0.7mm GI |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 3T manual decoiler |
| 7 | Pre-cutting | By manual |

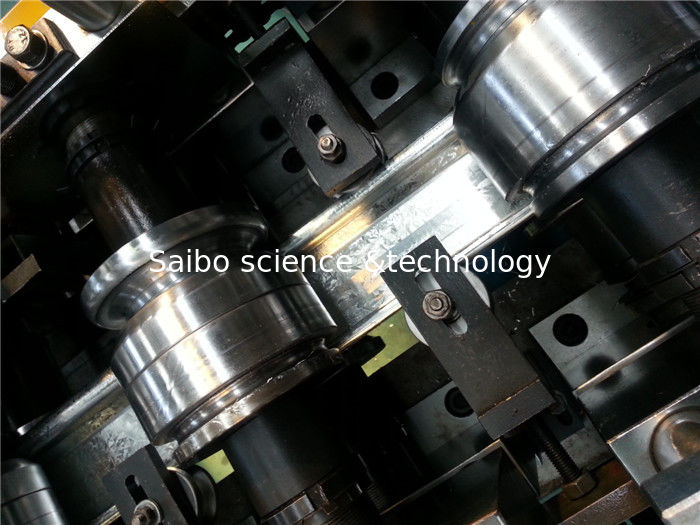

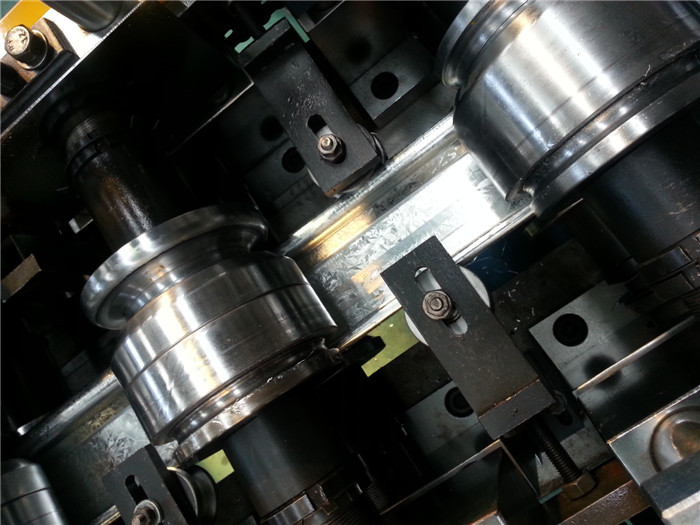

| 8 | Roller Stations | About 14 stations (according the final design) |
| 9 | Roller Material | 45# forge steel, coated with chrome |
| 10 | Shaft Material and DIA | ￠56mm, material is 45# forge steel |

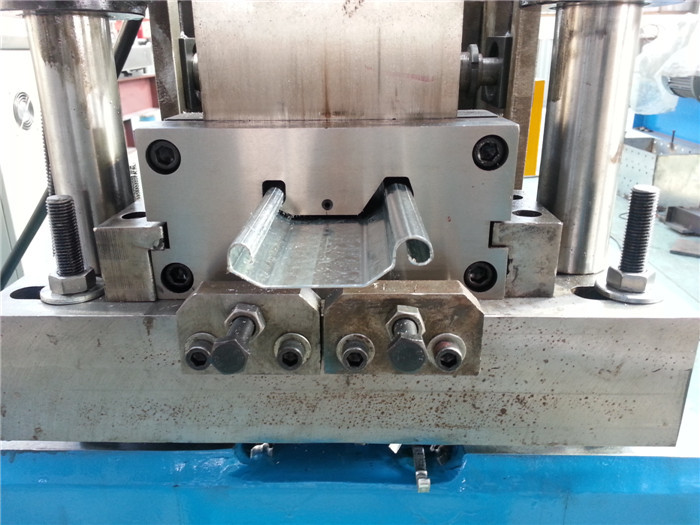

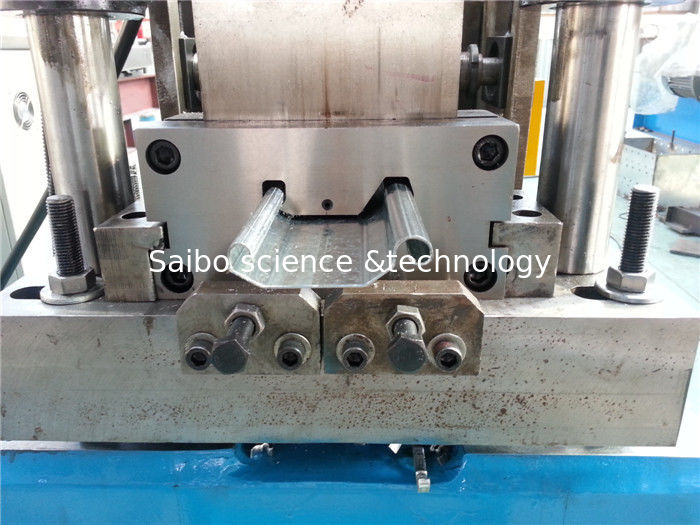

| 11 | Post cutting | Hydraulic cutting and punching at the same time after forming |
| 12 | Maim Motor Power | 4kw |
| 13 | Hydraulic Station Power | 3kw |
| 14 | Hydraulic Pressure | 10-12Mpa adjustable |
| 15 | Material Of Cutting | Cr12 quenching 58-62℃ |
| 16 | Structure Of The Stations | Wall panel |
| 17 | Tolerance | 3m+-1.5mm |
| 18 | Electric Source |
380V, 50HZ,3 phase According to customer’s require
|
| 19 | Way Of Drive | By chain |
| 20 | Color Of The Machine | Yellow and blue |
Main Features
1. Simple structure in linear type ,easy in installation and maintenance.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3. Running in a high automatization and intellectualization, no pollution
4. No need foundation, easy operation
Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
4. Installation and training
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
