Galvanized Steel Material Shutter Roll Forming Machine by Chain 14 stations

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX18-115
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 350 sets per year
Detail Information
Product Name: YX18-115 Shutter Roll Forming Machine Roller Material: #45 Forged Steel With Chrome
Station: 14 Stations Drive: ByChain
Steel Thickness: 0.4-0.7mm Main Motor: 4kw
Hydraulic Power: 3kw Coil Width: 175mm
Working Speed: 12-15m/min
High Light:

c channel roll forming machine

,

roll former machine


Product Description

Shutter Roll Forming Machine

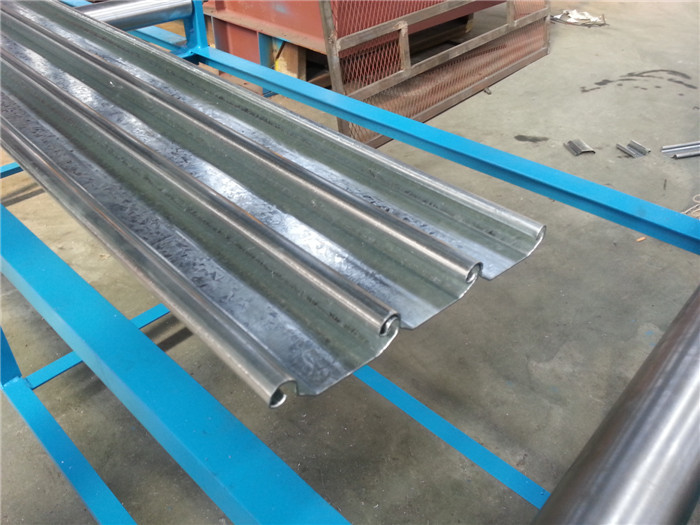

Profile:

All of our machine profile is customized, below profile is only for your reference.

1. Coil width: according to the final profile

2. Thickness: 0.4-0.7mm

Galvanized Steel Material Shutter Roll Forming Machine by Chain 14 stations 0

Layout:

Galvanized Steel Material Shutter Roll Forming Machine by Chain 14 stations 1

Manual de-coiler—Feeding—Roll Forming—Cutting—Out table



Specifications:

Item NO

Description

Offered specification

1 Roll Forming Machine

Shutter roll forming machine



2 Coil width 175mm
3 Rolling Speed 12-15m/min
4 Rolling Thickness 0.4-0.7mm GI or color steel
5 Control System PLC
6 Un Coiler Manual decoiler or hydraulic decoiler
7 Pre-cutting By manual
8 Roller Stations About 14 stations
9 Roller Material 45# forge steel, coated with chrome
10 Shaft Material and DIA ¢56mm, material is 45# forge steel
11 Post cutting Hydraulic cutting
12 Maim Motor Power 4kw
13 Hydraulic Station Power 3kw
14 Hydraulic Pressure 10-12Mpa adjustable
15 Material Of Cutting Cr12 quenching 58-62℃
16 Structure Of The Stations Guide rail
17 Tolerance 3m+-1.5mm
18 Electric Source

380V, 50HZ,3 phase

According to customer’s require



19 Way Of Drive By chain
20 Color Of The Machine Yellow and blue



Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation



Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.

4. Installation and training
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
