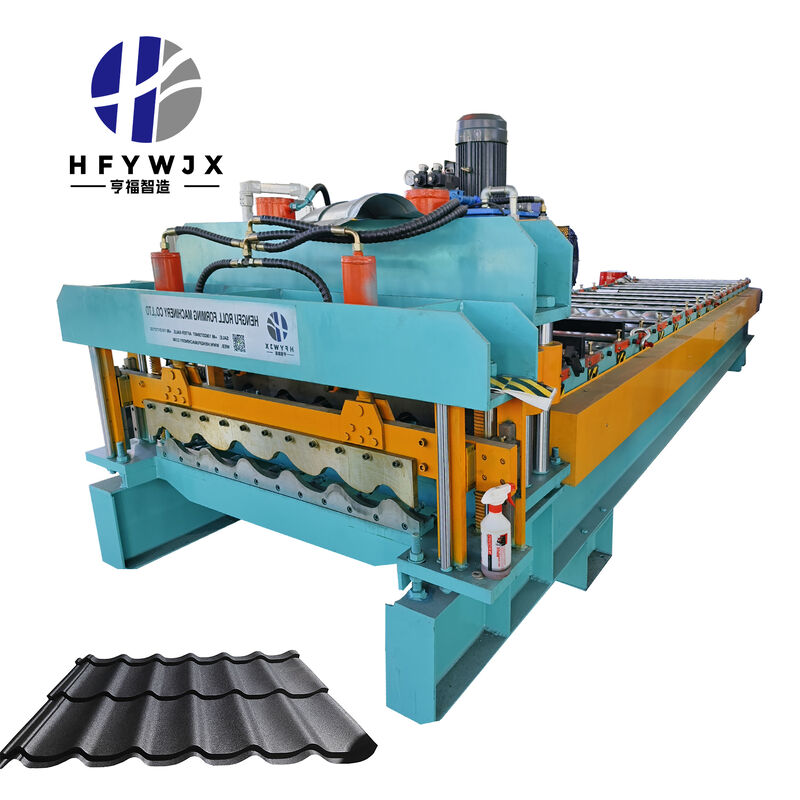

The roller table forming section of the 1100 partial arc roll forming machine performs the core forming work for colored steel tiles, powered by a specialized motor system. Power is transmitted through high-strength chains that drive each independent forming roller in synchronized rotation. This coordinated operation ensures continuous, smooth forming and conveying of colored steel plates, establishing a solid foundation for subsequent pressing processes.

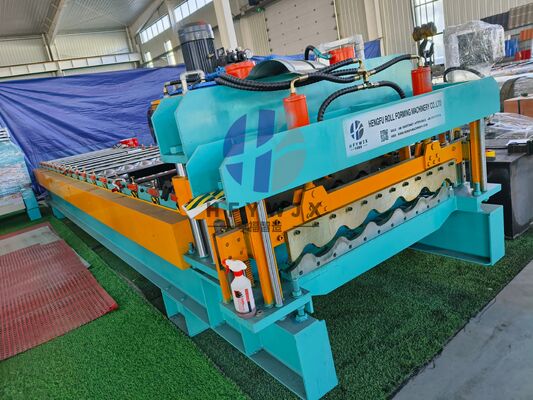

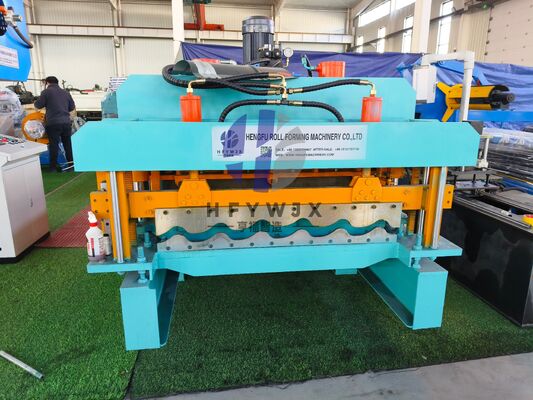

The pressing module shapes colored steel into the distinctive glazed tile style using hydraulic cylinders as the power source. These cylinders drive specialized pressing molds with stable, precise up-and-down movement. Under high-precision pressing action, flat colored steel plates are gradually formed into multiple continuous sections, producing finished products with standard, aesthetically pleasing glazed tile arc shapes that meet antique glazed tile molding requirements.

The cutting knife section handles fixed-length cutting of formed tiles, also driven by specially configured hydraulic cylinders. When colored steel tiles reach the preset length, the cutting knife performs quick, clean cuts that ensure uniform sizing and smooth, burr-free edges on every finished tile.

Antique glazed tiles produced by the 1100 partial arc equipment through roller rolling and die pressing offer exceptional appearance and styling advantages. They feature elegant aesthetics, refined simplicity, unique arc shapes, and outstanding decorative value with excellent visual appeal.

These superior characteristics make antique glazed tiles suitable for diverse applications including garden-style factories, tourist attractions, ancient architectural pavilions, hotels, high-end villas, exhibition halls, resorts, residential buildings, and various outdoor construction decoration projects, adding elegant antique charm to different architectural settings.

Technical Specifications

Model Number	1100
Condition	New
Usage	Roof
Machine Frame	350H Steel Frame
Forming Speed	4-5 M/min
Color	Customized
Drive Type	Chain Drive
Transmission Method	Electric
Number of Rolling Mill Sets	16 Row Molding
Spindle Diameter	Φ70mm (Solid Shaft)
Customization	Available
Feeding Method	Double Hand Rocking Feeding Rack (with Pressure Roller)
Specification	9000mm x 1800mm x 1700mm
Electrical Control System	Industrial Computer PLC
Origin	Cangzhou, Hebei
Warranty	1 Year
Transport Package	Plastic Film & Steel Wire Fixed
HS Code	8455221000

Material Specifications

Raw Materials	Galvanized Steel Plate, Color Steel Plate
Machine Frame	350H Steel Frame
Feed Width	1200mm

Product Gallery

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
