Intelligent Control 16-21 Roll Glazed Tile Roll Forming Machine 1110 Full Automatic

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model:

1110 Glazed Tile Production Line

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof

Production Speed:

4–12 M/min

Transmission Method:

Electric

Cutting Method:

After Forming, The Material Is Cut Using A Dual Li

Package Size:

900.00cm * 130.00cm * 170.00cm

Package Gross Weight:

10000.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

glazed tile roll forming machine 1110

21 roll glazed tile roll forming machine

1110 glazed sheet roll forming machine

Product Description

Intelligent Control Full Automatic 1110 Glazed Tile Production Line

Developed by Hebei Hengfu Pressing Machinery Manufacturing Co., Ltd., the 1110 glazed tile roll forming machine (Model YX24-222-1110) is a professional equipment for processing Q235 color steel and galvanized steel. It supports 1250mm width and 0.3-0.5mm thickness, with reliable performance and high product qualification rate.

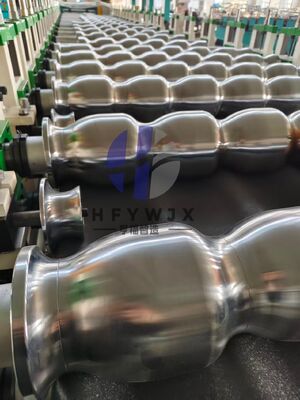

The machine is built with 400H standard steel frame and 16mm thick wall plates for strong stability. It has 16-21 rows of 45Cr rolls with quenching, tempering, fine turning and chrome plating. The 80mm solid spindle and 11kW servo motor with gear transmission provide strong power and smooth running.

This machine uses post-forming double linear guide electric shearing. Cr12Mov quenched and finely ground tools and molds ensure clean cutting and long service life. The PLC, inverter, touch screen, remote control and alarm system achieve high precision with length error ≤1mm.

The double hand-operated feeding frame with manual cutter makes operation convenient. The production speed is 4-12m/min, suitable for large-scale continuous production. It is widely applied in antique-style construction projects including factories, scenic areas, pavilions, hotels and villas.

Technical Specifications

Model	1110
Feeding Width	1250 mm
Suitable Material	Color steel sheet, Galvanized steel sheet
Material Standard	Q235
Material Thickness	0.3-0.5 mm
Machine Frame	400H standard steel
Wall Plate Thickness	16 mm
Forming Roll Stations	16-21 rows
Roll Material	45Cr (quenched / tempered / finely turned / chrome plated)
Main Shaft	Φ80 mm solid shaft
Main Motor	11 kW servo motor
Transmission	Gear box drive
Production Speed	4-12 m/min
Cutting Type	Post-forming cutting, double linear guide electric shearing

Product Gallery

Frequently Asked Questions

Can the machine produce stainless steel sheets? What are the requirements for the equipment?

Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Can you provide semi-automatic or fully automatic receiving tables?

Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
