| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

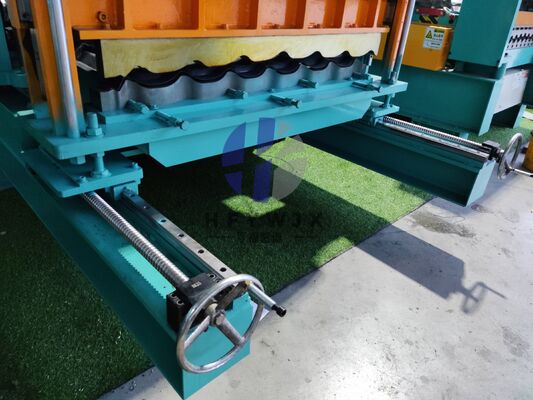

The 1100 Partial Arc Glazed Tile Roll Forming Machine is engineered for precision manufacturing of steel building materials with traditional glazed tile aesthetics. This advanced system combines roller forming, hydraulic pressing, and cutting technologies to deliver high-quality roofing solutions.
The manufacturing sequence begins with colored steel coil entering the roller forming system for basic profile shaping, progresses to the pressing section for arc segment stamping, and concludes with precise length cutting according to production specifications.

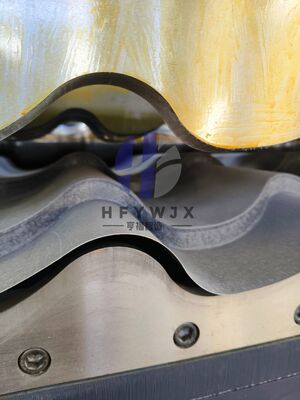

The antique-style glazed tiles produced feature elegant appearance, smooth curves, and classic traditional design. These lightweight yet strong tiles offer excellent load-bearing performance and durability, making them ideal for:
| Model NO | 1100 |
|---|---|
| Condition | New |
| Usage | Roof |
| Machine Frame | 350H steel frame |
| Forming Speed | 4-5M/min |
| Type of Driven | Chain drive |
| Transmission Method | Electric |
| Number of Rolling Mill Sets | 16 row molding |
| Spindle Diameter | Φ70mm (Solid shaft) |
| Feeding Method | Double hand rocking feeding rack (with pressure roller) |
| Specification | 9000mm x 1800mm x 1700mm |
| Electrical Control System | Industrial Computer PLC |
| Origin | Cangzhou, Hebei |
| Warranty | 1 year |
| Transport Package | Plastic Film & Steel Wire Fixed |
| HS Code | 8455221000 |
