With Film System Ridge Cap Roll Forming Equipment Drive by Chain 0-15m/min

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX 120-366
Minimum Order Quantity: 1 set
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: negotiation
Detail Information
Main Power: 4kw Hydraulic Power: 5.5kw
Steel Thickness: 0.4-0.6mm Station: 7 Stations+4 Stations Of Side Rollers
Decoiler: Manual Machine Structure: Guide Pillar
Machine Frame: 350H Beam Welding Drive: By Chain
High Light:

Metal Roof Forming Machine


Arch Sheet Roll Forming Machine

Product Description

Technical data of Cap ridge roll forming machine


Cap ridge forming machine to make ridge cap suitable for steel roofing sheet top.Your ridge can be designed here.

Here are some popular ridge machines for your reference, stop to cut machine, working speed about 12-15m/min.

standard ridge with flat leg, which need to cut the leg according to roofing trapezoidal sheets during installing/

special ridge cutted according to roofing trapezoidal sheets, which can easily attached on roofing without futher cut during installing, which improve work efficiency greatly, and make great match to roofing sheets to water proof.

Saibo ridge cap forming machines include 3 ton manual decoiler, forming machine with post cut, PLC controller , hydraulic station, run out table. Mitsubishi or siemens control system allow you user friendly, you only put in the length and pieces , roll forming machine will automatically work.

Specification of the material

No Specification of the material



Suitable Material Colored Steel plate, Galvanized steel



Width of the raw material 333mm
3 Thickness 0.4-0.7mm


Machine Detailed Parameters

Roller material ASTM1045 chrome plated surface with chrome
Roller station 7 stations+ 4 stations of side rollers
Shaft diameter ¢56mm material: SAE1045 with tempering
Machine structure guide pillar
Machine frame 350H beam welding
Feeding mode by manual
Main motor 4kw
Hydraulic power 5.5kw
Material of blade and press mould Cr12, 58-62 HRC hardness
Cutting system hydraulic post cutting
Suitable material Color steel, 0.4-0.6mm
Driven system by chain
Voltage 460V, 50HZ, 3P


Specification of Components

No   Technical Specification & Remark

Manual Un-coiler


  • Width of feeding: 500mm
  • Capability: 3 Ton
  • Bound of expand &fight: 420mm—510mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
  • Quantity:

Main Roll Forming Machine



  • Roll station: about 8 stations
  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢56mm material: SAE1045 with tempering
  • Main motor: 3kw
  • To avoid accidents, the driven parts of the machine will have the cover

Machine structure:


  • Main frame by 350H beam welding
  • Machine structure: wall panel
  • Drive by chain

Hydraulic cutting system


  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Power by hydraulic,3KW
  • Working pressure: 12-16Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product

Hydraulic System





  • Hydraulic power: 3kw
  • Working pressure: 10-12Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil
  • Quantity :1

Computer Control Cabinet



  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
    • Unit of length: millimeter
    • PLC brand: Panasonic

Out table


  • Jointed by steel tube
  • One out table with one support roller
  • Quantity: 3 units

Spare Parts


  • Bearing: 2 pieces.
  • Limit switch: 2 pieces
  • Relay: 2 pieces.
  • Oil tube: 1 piece
  • Screws and nuts: some.
  • Chain: 1 piece
  • Tools: spanner, hex spanner and adjustable wrench and other correlative adjust machine tools




Maintenance and safety


1. There should be an earth wire independently connected to the ground.


2. Keep cleans all the electric components. Clean them once a month.


3. Do not open the door of the electric box except for cleaning and adjustment.


4. While doing the monthly cleaning, check the insulation and connecting conditions of each electric component. Make sure there is no heat generation or oxidization.


5. The machine: 415V/50HZ, operating parts: AC24V, Please refer to electric principle drawing and table for maintenance.


6. Do not modify system parameter unless the operator is specialized in controlling system


7. Once the system does not work properly, please send for specialized technicians or electricians for maintenance.

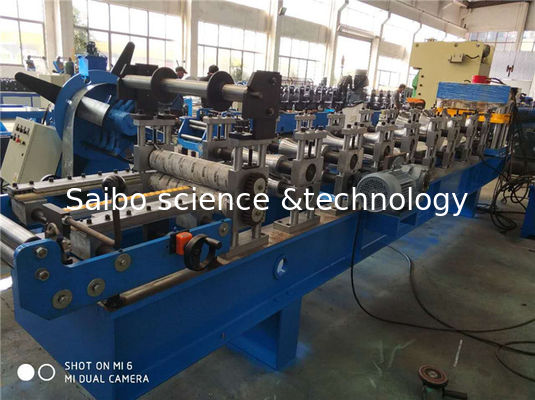

Machine picture for your reference:


With Film System Ridge Cap Roll Forming Equipment Drive by Chain 0-15m/min 0


With Film System Ridge Cap Roll Forming Equipment Drive by Chain 0-15m/min 1
