CZ Purlin Roll Forming Machine With PLC Control System

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: CZ
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: 300 sets per year
Detail Information
Product Name: CZ Purlin Roll Forming Machine Power: 20.5kw
Size: CZ Steel Thickness: 1.5-3.0mm
Decoiler: Manual Station: 16 Stations
Roller Material: Gcr15 Drive: Chain
Container Need: 1X40GP Material: Galvanized Steel
High Light:

CZ Purlin Roll Forming Machine

,

PLC Control Roll Forming Machine


Product Description

CZ Purlin Roll Forming Machine with PLC Control System No need to Change Cutters



1.Main specification

No Specification of the material

1



Suitable Material Carbon steel and Galvanized steel

2



Width of the raw material Based on the purlin sizes.
3 Thickness 1.5mm-3.0mm



2.Specification of Components

No   Technical Specification & Remark
1

Manual Un-coiler





  • Width of feeding: 500mm
  • Capability: 3 Ton
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
  • Color: blue
2

Leveling part





  • Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
  • Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
  • Diameter of flattener shaft:¢70mm, material is SAE 1045, hardening and tempering
4

Main Roll Forming Machine





  • Roll station:16 stations+ one station of rectify
  • Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface
  • Shaft diameter: ¢70mm material: SAE1045
5

Machine structure:





  • Main frame by 350H beam welding
  • Machine structure: wire electrode cutting system
  • Drive by chain
6

Hydraulic cutting system





  • Machine adopt hydraulic post cutting system.
  • Cutting power by hydraulic, 5.5KW
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Cutting motion: The main machine will stop when cutting, after the motion the machine will continue automatically.
  • Material of blade:Cr12 with heat treatment 58-60°
  • Tolerance of length: 3000mm+/- 1.5mm
7

Hydraulic System











  • Hydraulic power: 5.5kw
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil





8

Computer Control Cabinet









  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC brand: Panasonic
9

Out table





  • Jointed by steel tube
  • Size: about 2.0m long*0.8mwide*0.6-1mhigh
  • One out table with three support roller
  • Quantity: 2 units



3.Profile drawing:


CZ Purlin Roll Forming Machine With PLC Control System 0



4.The Chart of Process Flow

CZ Purlin Roll Forming Machine With PLC Control System 1

Manual Un-coiler—Leveling —Roll Forming—Cutting—out table

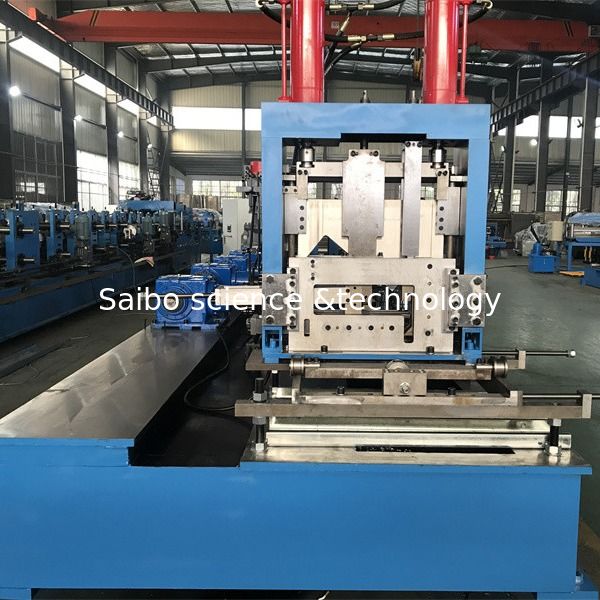

5. Machine pictures for reference

CZ Purlin Roll Forming Machine With PLC Control System 2

CZ Purlin Roll Forming Machine With PLC Control System 3

6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
