Hydraulic Decoiler U Purlin Roll Forming Machine 5T For Guard Rail Drive By Gear Box

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: U purlin
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 65 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 280 sets per year
Detail Information
Roller Material: Gcr15, 58-62,HRC Hardness And Chrome Plated Surface Station: 9 Stations +1 Station Of Rectify
Drive: Gear Box Steel Thickness: 3.0-5.0mm
Main Motor Power: 55KW Hydraulic Motor: 11KW
Punching Station: 1 Unit Diameter Of Shaft: 100mm
High Light:

Hydraulic Decoiler Purlin Roll Forming Machine

,

5.0mm Guard Rail Roll Forming Machine

,

55KW Guard Rail Roll Forming Machine


Product Description

U Purlin Roll Forming Machine



Main technology

  • Heavy duty uncoiler with coil car
  • Flatten system
  • punching to make holes
  • Roll forming machine
  • Gear box with coupling drive
  • Hydraulic post cutting



Profile:

All of our machine profile is customized, above profile is only for your reference.



Hydraulic Decoiler U Purlin Roll Forming Machine 5T For Guard Rail Drive By Gear Box 0

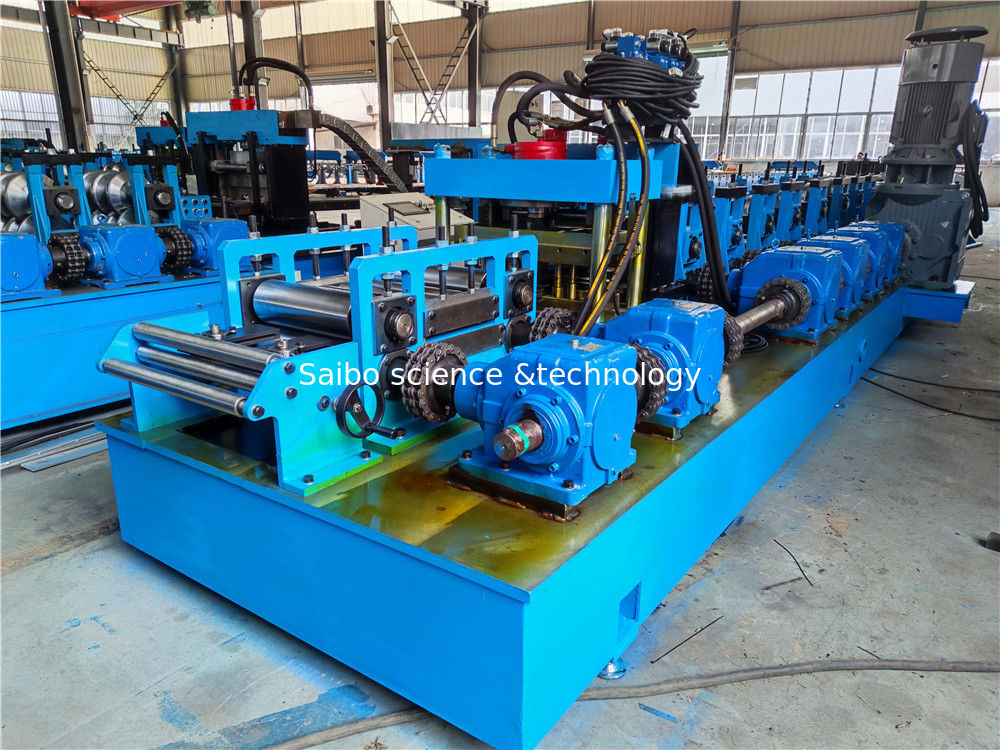

Machine photos for reference

Hydraulic Decoiler U Purlin Roll Forming Machine 5T For Guard Rail Drive By Gear Box 1

Hydraulic Decoiler U Purlin Roll Forming Machine 5T For Guard Rail Drive By Gear Box 2



Layout:

Hydraulic decoiler—Leveling—Punching—Roll Forming—Cutting—Out table



Specifications:

Item NO



Description



Offered specification

1 Roll Forming Machine

U purlin



2 Material Width According to the final profile
3 Rolling Speed 15m/min
4 Rolling Thickness 3.0-5.0 mm
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 5 ton hydraulic de-coiler with coil car
7 Leveling Station 1 station (three rollers over four)
8 Punching hydraulic power 11kw
9 Punching One set
10 Roller Stations 9 stations (according the final design)
11 Roller Material

Gcr15, HRC58-62 coated with chrome

12 Shaft Material and DIA ¢100mm, material is 45# forge steel
13 Maim Motor Power 55kw
14 Hydraulic Station Power 11kw
15 Hydraulic Pressure 25-30Mpa
16 Cutting mode Hydraulic cutting
17 Material Of Cutting Cr12 quenching 58-62℃
18 Structure Of The Stations Wire electrode cutting
19 Tolerance 3m+-1.5mm
20 Electric Source

380V, 50HZ,3 phase

According to customer’s require

21 Way Of Drive By gearbox
22 Color Of The Machine Yellow and blue
23 How to change the profile Change the last three roller stations which is in one cassette

Product detailes

Hydraulic Decoiler U Purlin Roll Forming Machine 5T For Guard Rail Drive By Gear Box 3

Flattener.

  • The quantity of leveler rolls must be planned according to thickness 3.0-5.0mm to 3.0 mm.
  • Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
  • Diameter of flattener shaft: diameter100mm, material is SAE 1045, hardening and tempering

Punching and pre-cutting

  • Adopt Hydraulic punching
  • Base on customer provide punching drawing, this machine need adopt one unit hydraulic punching system
  • The punches and dollies will be CR-12, hardness HRC 58-62
  • Pre-cutting: install after feeding, change the size no need to change the cutter
  • Hydraulic power: 11KW




Hydraulic Decoiler U Purlin Roll Forming Machine 5T For Guard Rail Drive By Gear Box 4
Hydraulic Decoiler U Purlin Roll Forming Machine 5T For Guard Rail Drive By Gear Box 5

Forming section.

  • Main motor power : 55 kw
  • Roller Material : GCR15, HRC58-62℃ ,coated with chrome
  • Shaft DIA : ¢100mm, material : 45# forge steel
  • Roller Stations : about 18 stations
  • Rolling Speed :15m/min
  • Machine Voltage :380V, 50HZ, 3 phase.

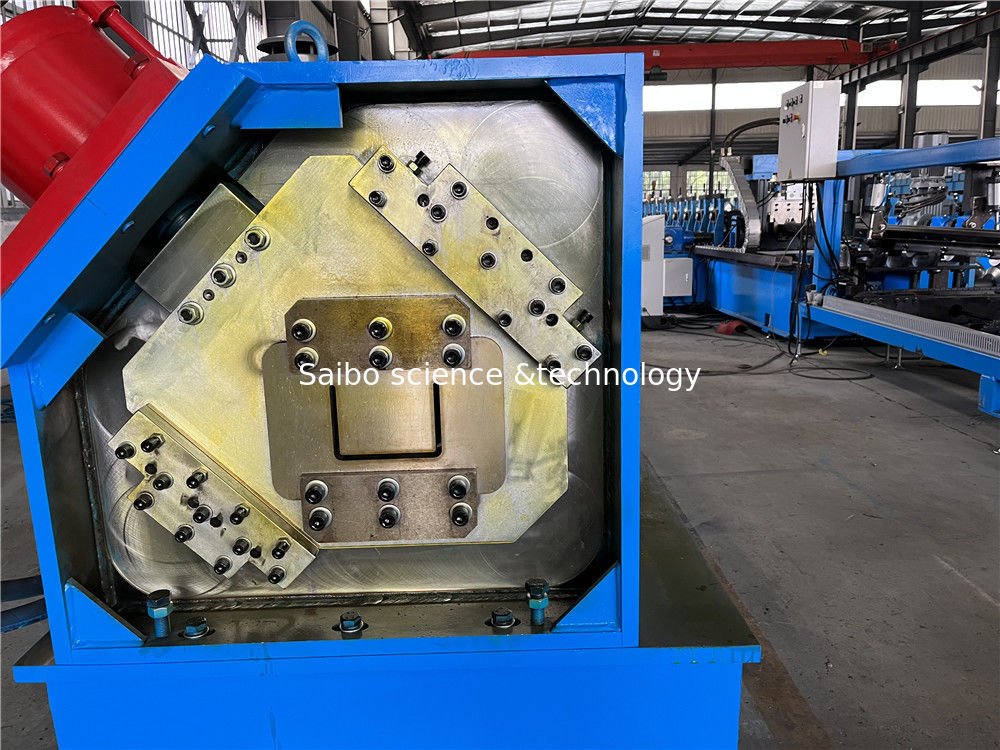

Cutting.

  • Machine adopt hydraulic cutting system
  • Hydraulic working pressure: 35Mpa adjustable
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12 with heat treatment 58-60°
  • Length measuring: Automatic encoder length measuring, brand: Omron
  • Tolerance of length: 3000mm+/- 1.5mm


Track cutting table length:about 2.5-3m

Hydraulic Decoiler U Purlin Roll Forming Machine 5T For Guard Rail Drive By Gear Box 6
