| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/IS09001/SGS |
| Model Number: | 2&3 Waves |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 60 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 sets per year |
| Product Name: | Guard Rail Roll Forming Machine | Usage: | Highway Guardrail |
|---|---|---|---|
| Steel Thickness: | 2.5-3.0mm, 345Mpa | Decoiler: | 5T Hydraulic |
| Roller Material: | Gcr15 With Chrome, HRC58-62 | Station: | 15 Stations |
| Drive: | Gear Box | Container Need: | 1X40GP+1X20GP |
| High Light: | 3 Waves Guardrail Roll Forming Machine,High Afficiency Guardrail Roll Forming Machine,3.0mm Guard rail Roll Forming Machine |
||
2&3 Waves Guard Rail Roll Forming Machine
Saibo Science & Technology manufactures roll formers that can make different kind of road crash barrier.
Saibo Science & Technology designers, engineers, and manufactures collaborate to produce quality roll forming lines for the road crash barrier and Highway soundproof panels industry. Whether at home in China, or abroad, we provide full installation, training, and ongoing service to all of our clients.
Profile:
1. Coil width: 485mm/ 755mm
2. Thickness: 2.5-3.0mm, 345Mpa
Layout:
Hydraulic decoiler—Leveling—Punching—Roll Forming—Rectify—Cutting—Out table
Specifications:
| Item NO |
Description |
Offered specification |
| 1 | Roll Forming Machine |
2& 3 waves guardrail
|
| 2 | Material Width | 485mm/ 755mm |
| 3 | Rolling Speed | 12-15m/min(not include cutting & punching time) |
| 4 | Rolling Thickness | 2.5-3.0 mm |
| 5 | Control System | PLC (Panasonic) as list in the note |
| 6 | Un Coiler | 5 ton hydraulic de-coiler |
| 7 | Roller Stations | 15 stations (according the final design) |
| 8 | Leveling Station | 1 station (three rollers over four) |
| 9 | Punching | Two sets |
| 10 | Roller Material |
GCR15, HRC58-62℃ coated with chrome |
| 11 | Shaft Material and DIA | ￠100mm, material is 45# forge steel |
| 12 | Maim Motor Power | 45kw |
| 13 | Hydraulic Station Power | 22kw |
| 14 | Hydraulic Pressure | 25Mpa |
| 15 | Material Of Cutting | Cr12Mov quenching 58-62℃ |
| 16 | Structure Of The Stations | Wire electrode cutting |
| 17 | Tolerance | 3m+-1.5mm |
| 18 | Electric Source |
380V, 50HZ,3 phase According to customer’s require
|
| 19 | Way Of Drive | By gearbox |
| 20 | Color Of The Machine | Yellow and blue |
| 21 | Container Need | 1 x40 feet & 1 x20 feet |

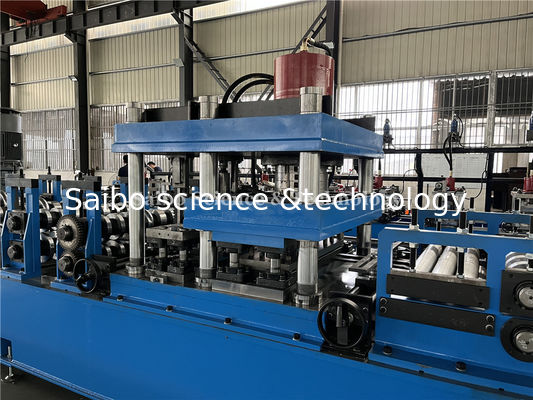

Picutres for reference
Main Features
1. Simple structure in linear type ,easy in installation and maintenance.
2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3. Running in a high automatization and intellectualization, no pollution
4. No need foundation, easy operation
