Fully Automatic Cable Tray Making Machine High Output 200~1250mm Feed Width

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO.:

Cable Tray Forming Machine

Warranty:

1 Year

Certification:

Security Properties:

Stable And Reliable

Environmental Protection:

Sustainable Development

HS Code:

8455221000

Accuracy:

High Accuracy

Economy:

High Efficiency

Production Capacity:

500ppieces/Year

Package Size:

2500.00cm * 300.00cm * 150.00cm

Package Gross Weight:

6000.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

automatic cable tray making machine

automatic cable tray machine

1250mm cable tray machine

Product Description

Cable Tray Manufacturing Machine Fully Automatic Roll Forming Line

High Output Efficiency, Stable Operation and Durable Structure

Product Overview

The Automatic Mechanical Cable Tray High-Speed Metal Forming Machine represents a complete productivity upgrade for manufacturers in the cable management industry. Designed to simplify complex production tasks, it transforms traditional multi-step processes into highly coordinated and efficient operations, enabling businesses to transition from fragmented manufacturing to streamlined, scalable production.

From a business perspective, this machine supports faster project delivery through stable high-speed production and reliable forming accuracy. This capability allows manufacturers to shorten lead times and handle increased order volumes without overloading production capacity—particularly valuable in fast-paced infrastructure and energy sectors where timing is critical to competitiveness.

The machine also contributes significantly to product standardization by ensuring uniform shaping and consistent punching quality. This results in cable trays that are easier to install and more compatible across different projects, enhancing end-user satisfaction and strengthening a company's reputation for dependable products.

Developed by Dongguang Hengfu Roll Forming Machine Co., Ltd. with a clear understanding of market demands, this equipment delivers measurable business benefits through efficiency, reliability, and ease of integration. For companies pursuing long-term growth, this machine offers strategic advantages by supporting a more efficient, competitive, and future-ready production model.

Technical Specifications

Model NO	Cable tray forming machine
Condition	New
Feed width	200~1250mm
Molding process	about 28 processes
Transmission method	Chain wheel chain transmission
Spindle diameter	Φ 70mm
Forming frame	H400 steel welding
Electric control system	PLC
Punching working method	Punching with a punch press
Automatic Grade	Automatic
Transport Package	Container
Customized	Customized
Origin	Cangzhou, Hebei
Warranty	1 year

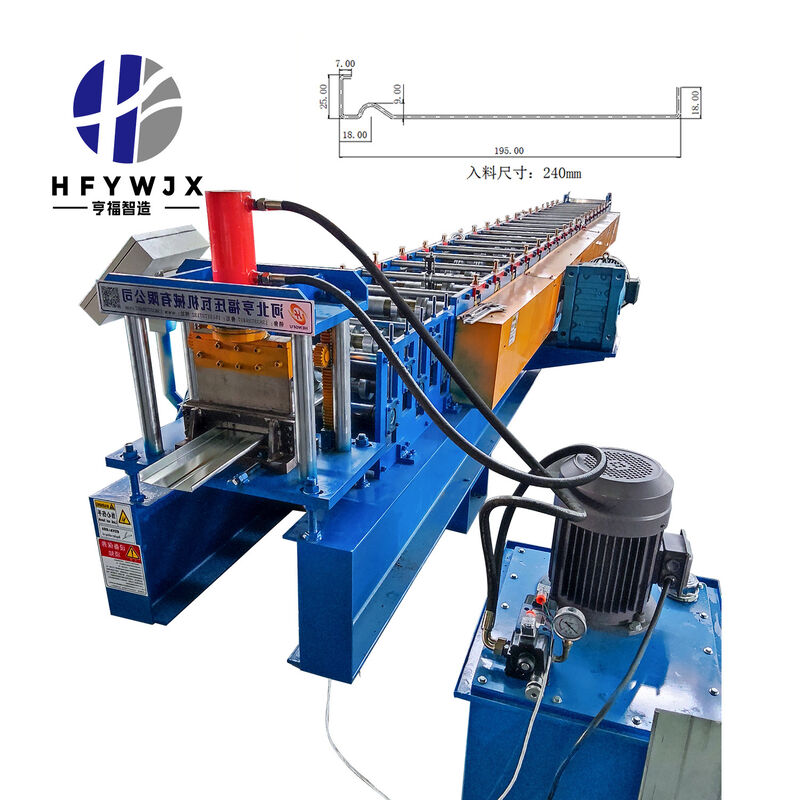

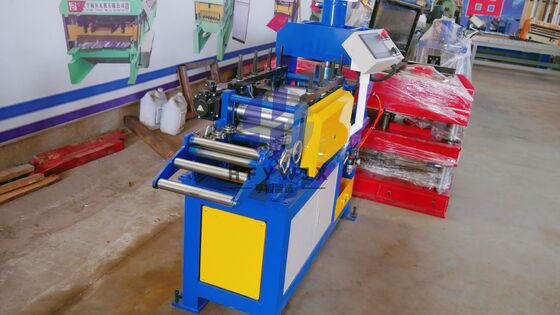

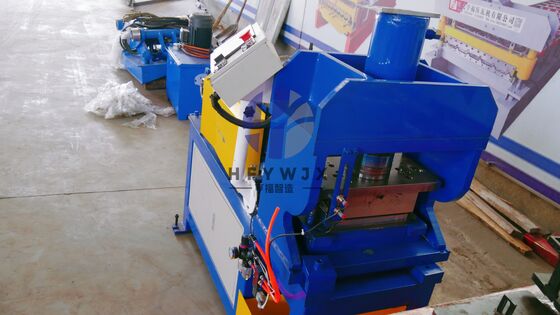

Product Images

Frequently Asked Questions

Does the machine require a foundation?

It simply requires a level concrete floor; no complex foundation is necessary.

Does the machine require disassembly for transport?

The core structure remains intact; only the auxiliary components are removed to ensure that precision is maintained.

There are no professional maintenance personnel available locally; what should we do in the long run?

We provide lifetime remote video guidance; most issues do not require on-site repair.

Are customers able to visit the factory to test the machine and observe its performance firsthand?

We welcome customers—or a designated third party—to visit our factory to inspect the machine and conduct trial production runs using their own materials.

What checks need to be performed before starting the machine?

Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
