Detail Information

Product Name:	Standing Seam Roll Forming Machine	Power:	5.5KW+4kw
Steel Thickness:	0.3-0.8mm	Decoiler:	45# Forge Steel, Surface With Chrome
Station:	About 15 Stations	Formimg Speed:	0-15m/min
Color:	Bule And Yellow	Shaft Diameter:	65mm
Blade Material:	Gcr12， HRC58-62	Coil Width:	610/760mm
Highlight:	Standing Seam Roofing Roll Forming Machine , Hydraulic Pre-cutting Roll Forming Machine , Hydraulic Pre Cutting standing seam machine

Product Description

Roof Panel Double Layer Roll Forming Machine

1. Specification of the materi

1	Suitable Material	Colored Steel plate, Galvanized steel
2	Width of the raw material	According to final profile
3	Thickness	0.3-0.8mm

2. Machine Detailed Parameters

1	Roll Forming Machine	Standing seam roll forming machine
2	Machine structure	Wire electrode cutting structure
3	Total power	Motor power-5.5kw Hydraulic power-4kw
4	Roller stations	About 15 stations
5	Productivity	12-15m/min
6	Drive system	By chain,1.0 inch
7	Diameter of shaft	￠65mm solid shaft
8	Voltage	415V 50Hz 3phases (Customized)
9	Color Of The Machine	Bule and yellow
10	Deliver time	70 days
11	Terms Of Payment	30%T/T 70% pay before shipment

3. The Chart of Process Flow

Hydraulic Uncoiler—Roll Forming—Cutting—Out table
Hydraulic Pre Cutting SSR Standing Seam Roofing Roll Forming Machine 0

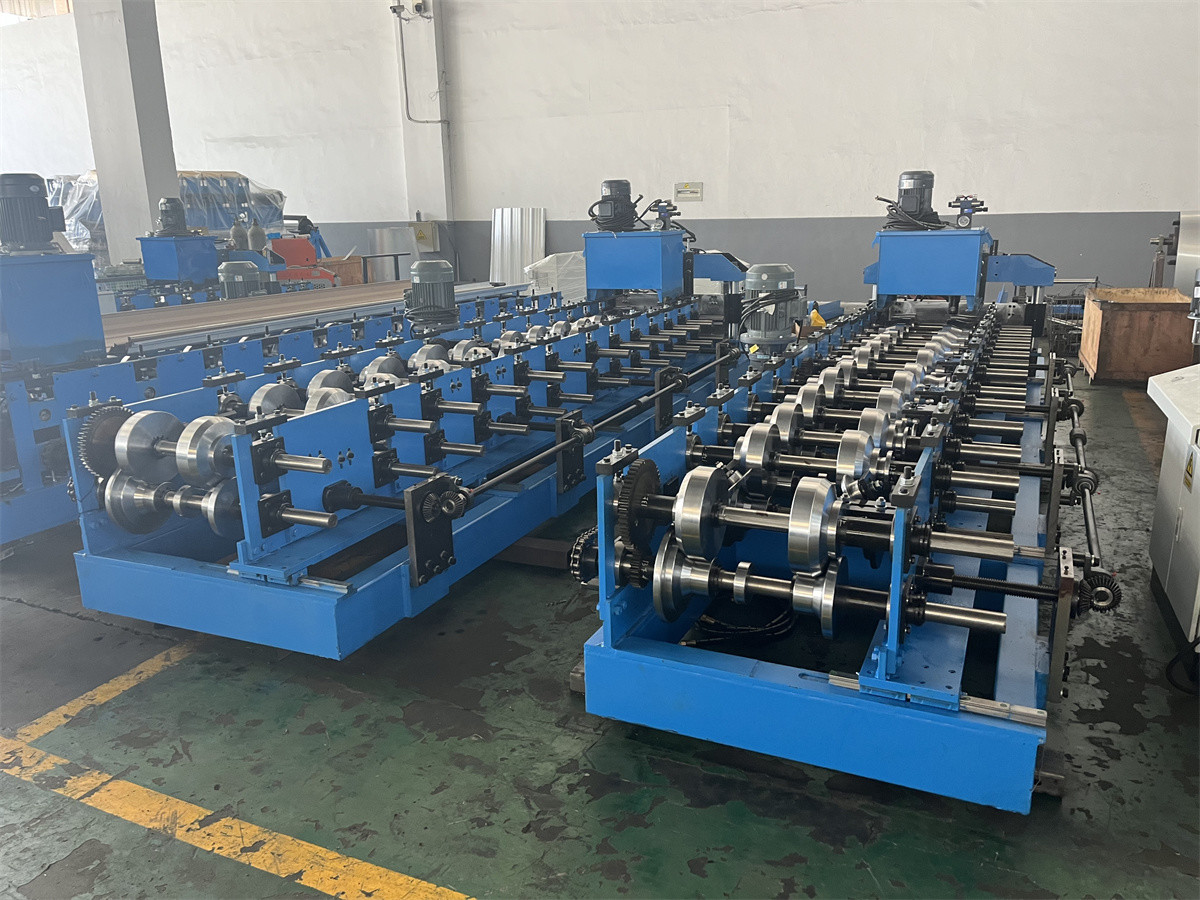

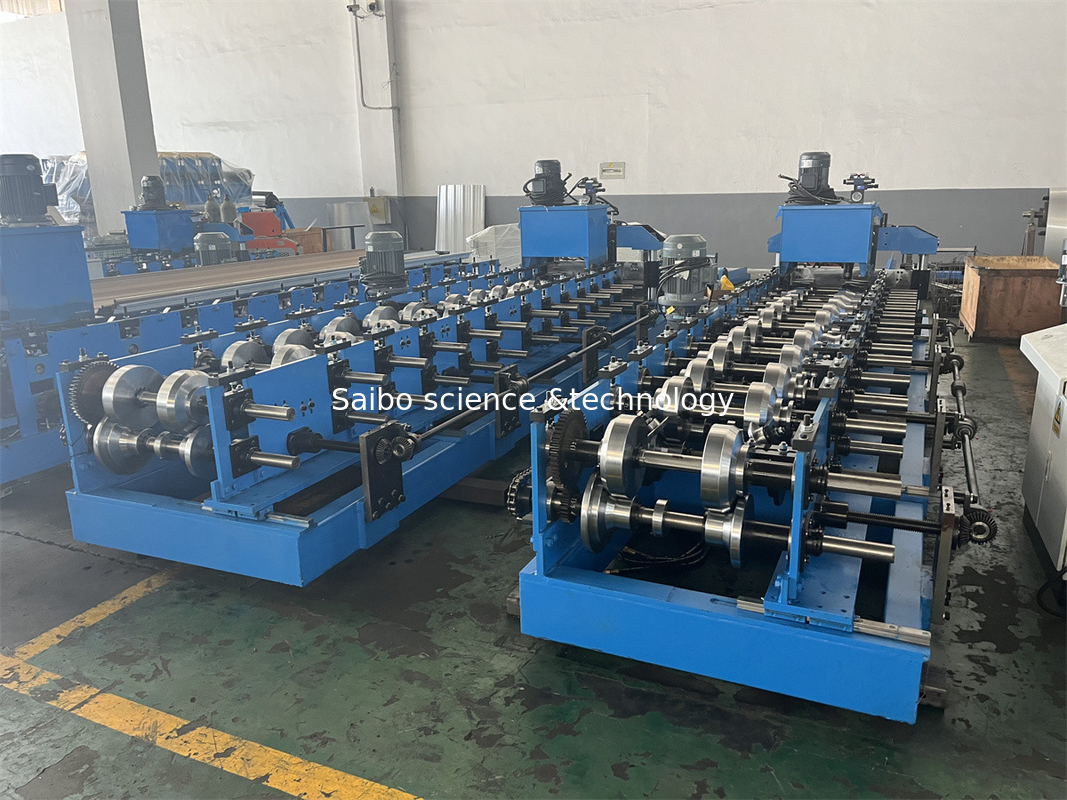

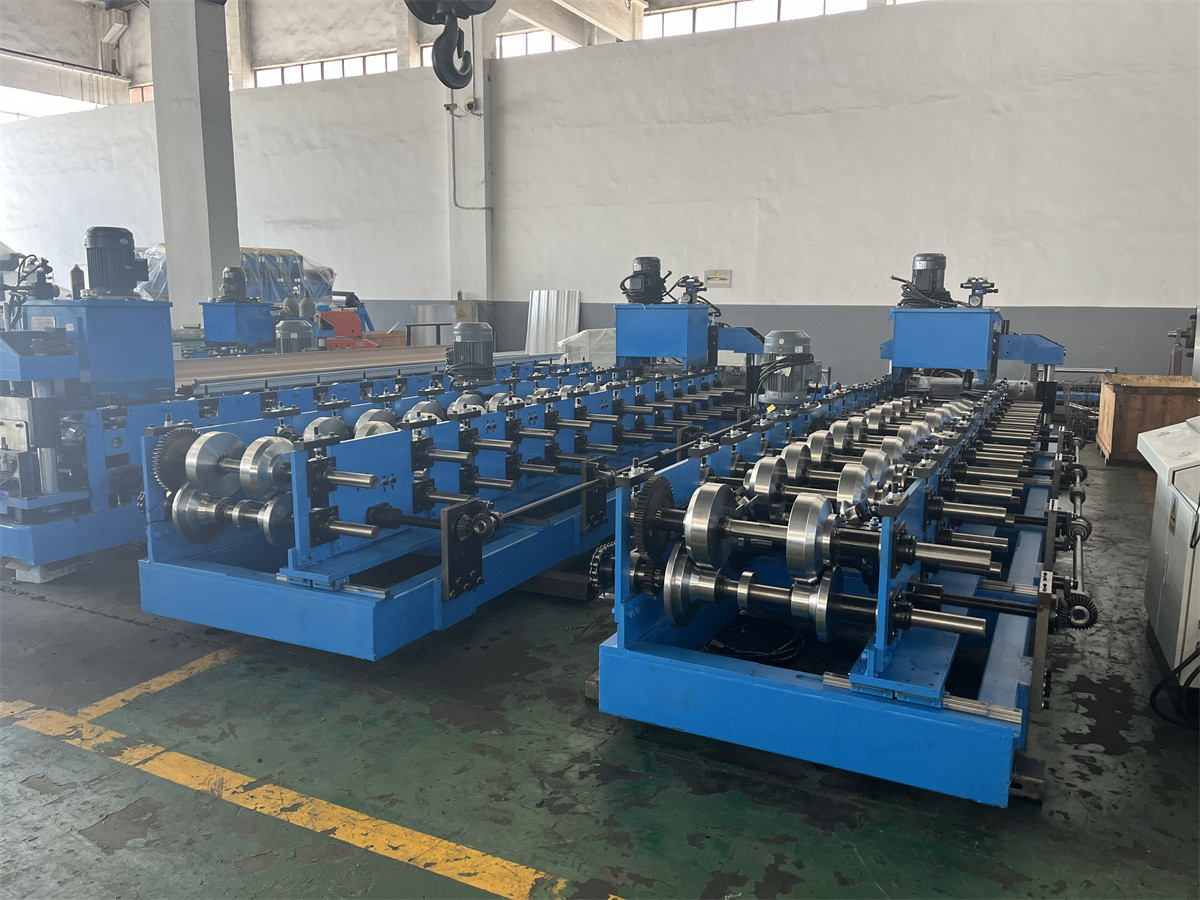

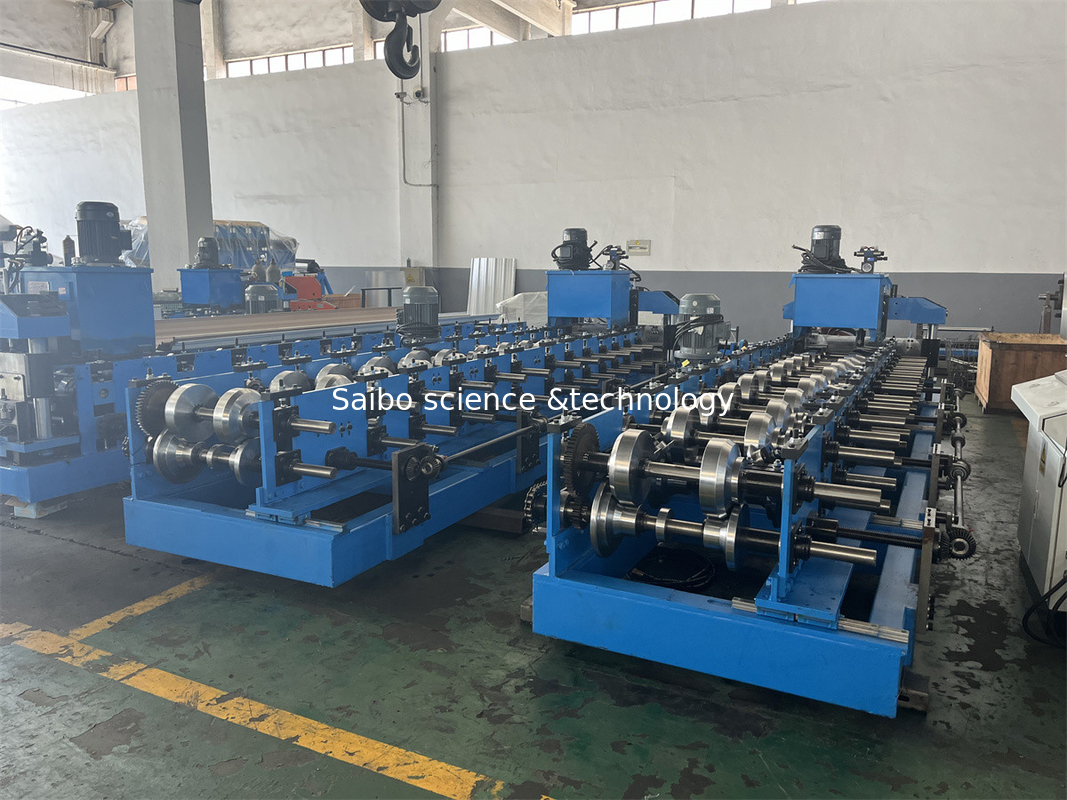

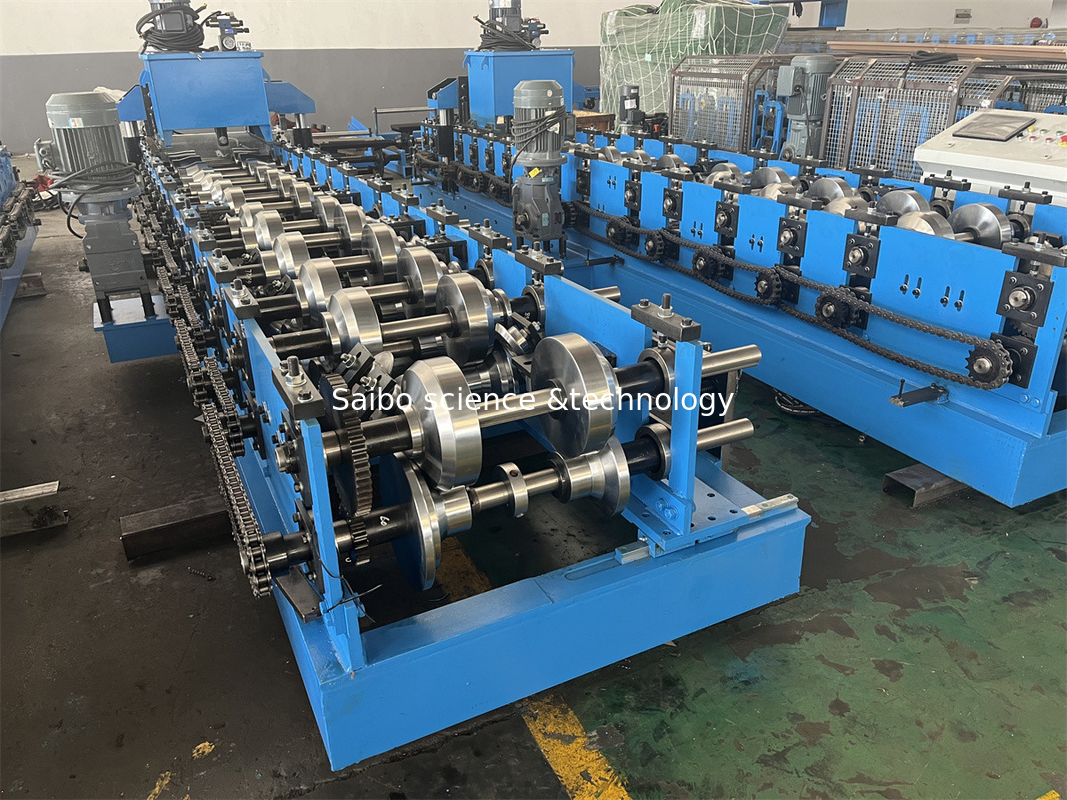

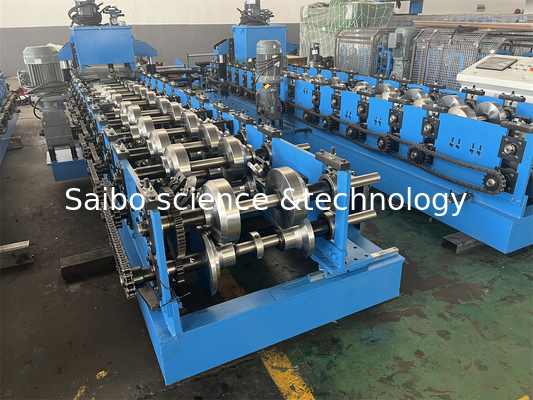

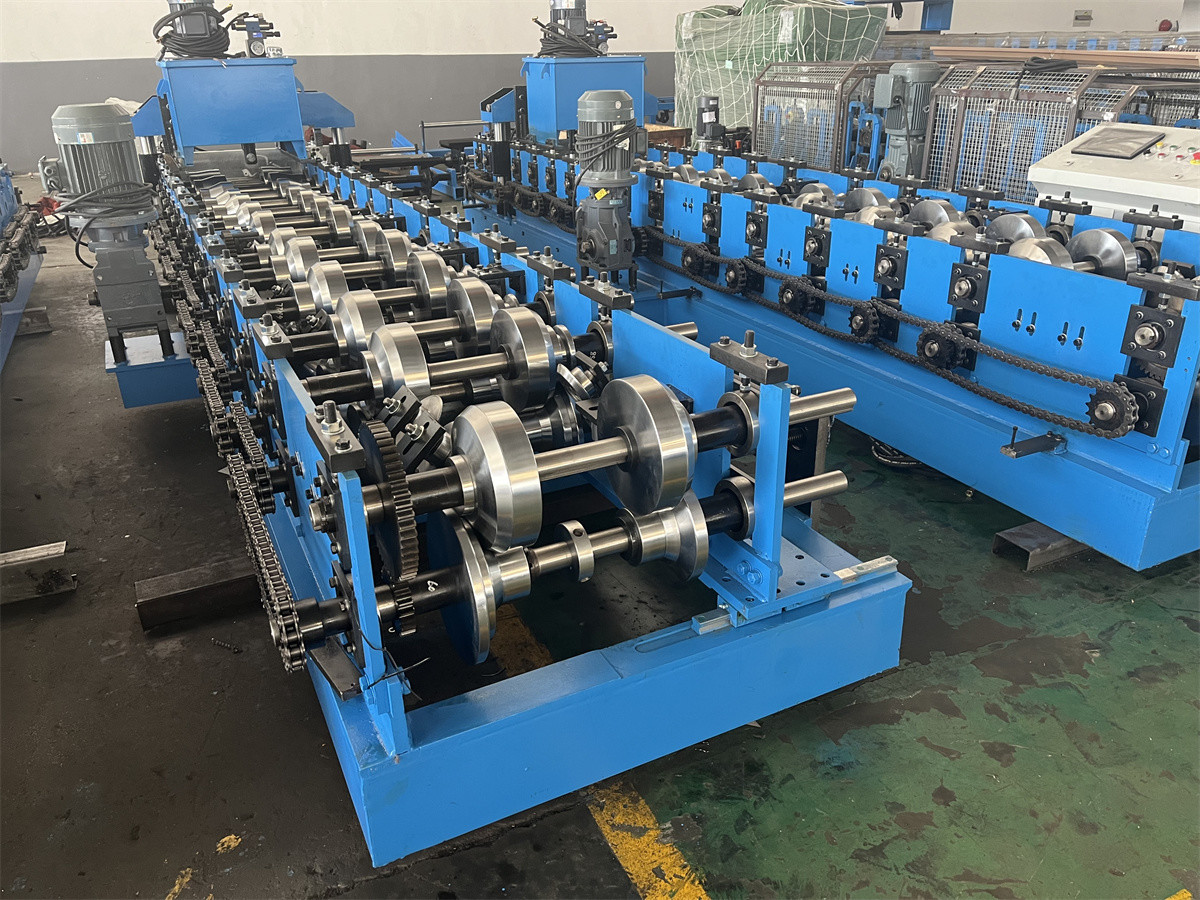

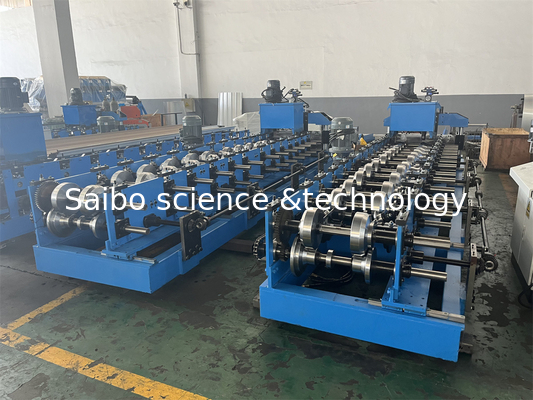

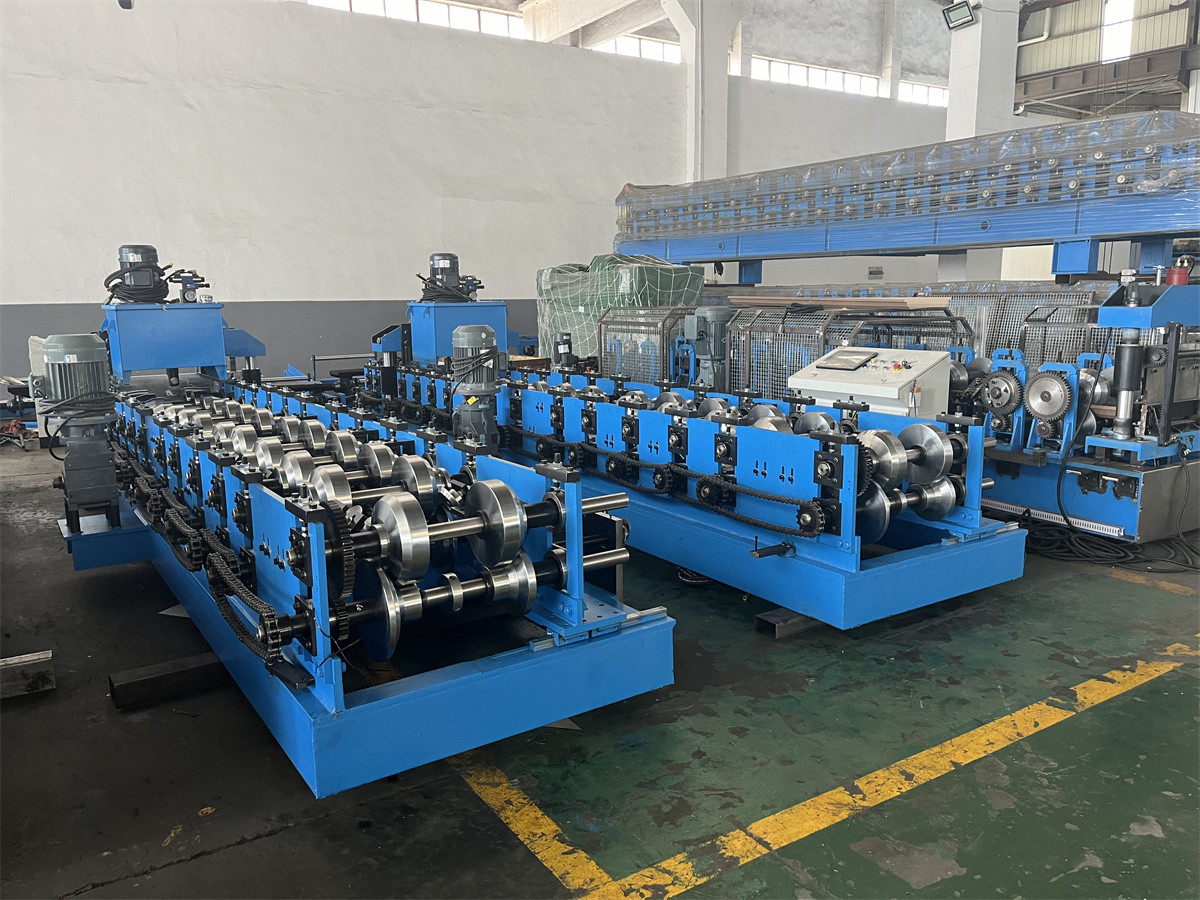

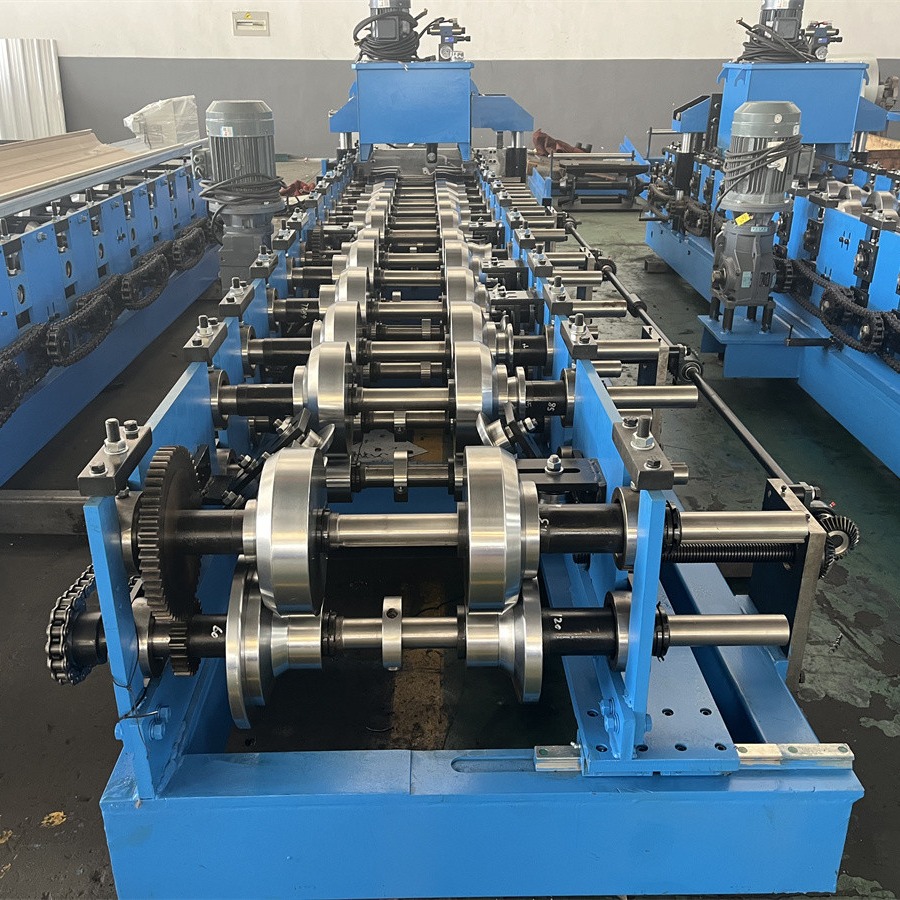

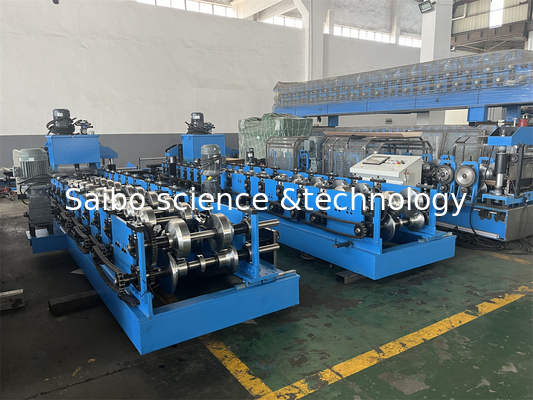

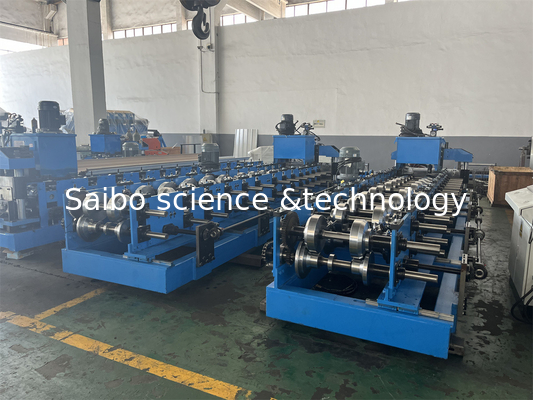

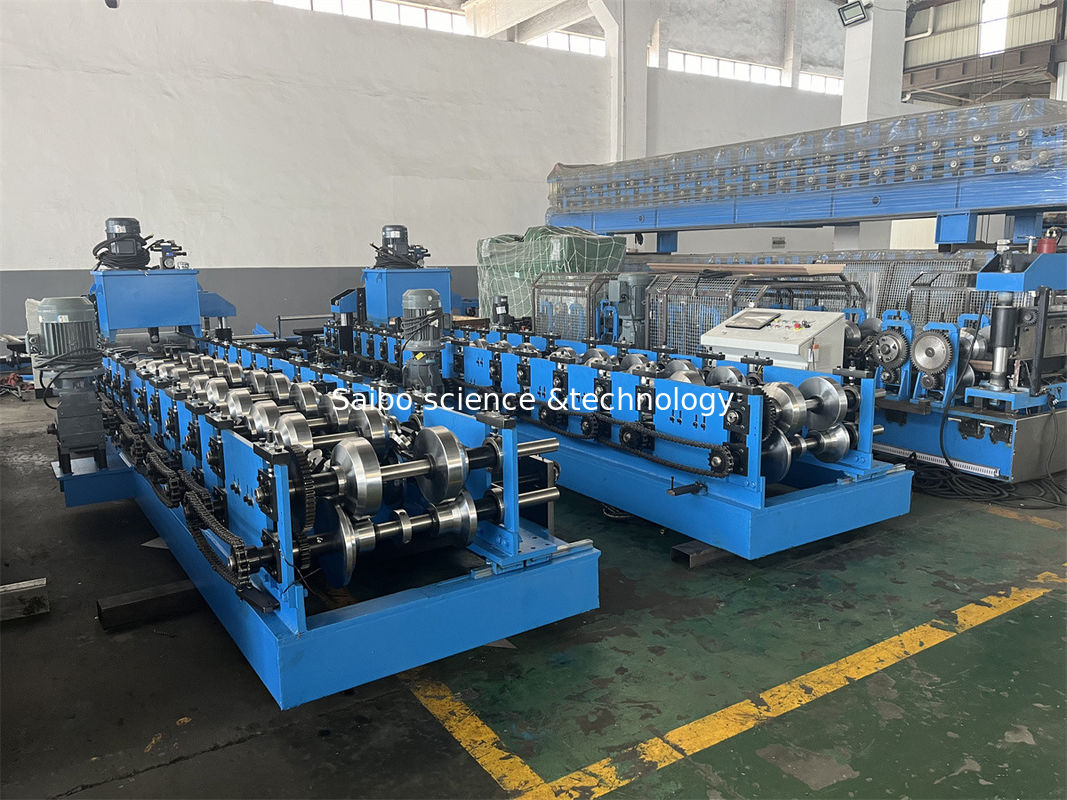

4.Machine photos reference

Hydraulic Pre Cutting SSR Standing Seam Roofing Roll Forming Machine 2

5. Specification of Components

(1) 5T Hydraulic Un-coiler

Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 470-520mm
Maximal out diameter: 1500mm
Working speed: 0--20m/min adjustable
Main motor power: 5.5KW AC motor
Hydraulic power: 4kw

(2) Main Roll Forming Machine

Roller material:ASTM1045 chrome plated surface with chrome
Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
Main frame by 350H beam welding
Machine structure: wall board

(3) Hydraulic cutting system

Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,4KW
Working pressure: 12Mpa adjustable
Length measuring: Automatic encoder length measuring
Tolerance of length: +/- 1.5mm for each piece end product

(4) Computer Control Cabinet

Programmable setting of profile length and quantity
Operating system language: English and Chinese
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

Place of Origin:	China
Brand Name:	Saibo
Certification:	CE/ISO
Model Number:	LYSAGHT KLIP-LOK 406

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Suitable for ocean shipment
Delivery Time:	70 working days after received deposit
Payment Terms:	T/T or L/C
Supply Ability:	300 sets per year
