| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/ISO |
| Model Number: | Roofing Panel |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 70 working days after received deposit |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 300 sets per year |
| Product Name: | Roofing Roll Forming Machine | Power: | 5.5KW+4kw |
|---|---|---|---|
| Steel Thickness: | 0.5-0.7mm | Decoiler: | 6T Hydraulic Decoiler |
| Roll Station: | About 15 Stations | Roller Material: | ASTM1045 Chrome Plated Surface With Chrome |
| Shaft Diameter: | 70mm | Drive System: | By Chain |
| High Light: | Roofing Wall Panel Roll Forming Machine,914mm wall panel roll forming machine,Chain Drive metal wall panel machine |
||
Roofing Roll Forming Machine line
1). To design and make the best roll forming machine
2). Choose the best material and components, and adopting our 30+ years experience;
3). The machine working speed can be 20m/min;
4). Very easy to install and operate.
1. Specification of the material
| 1 | Suitable Material | PI/ PPGI |
| 2 | Width of the raw material | 914mm |
| 3 | Thickness | 0.5-0.7mm |
2. Machine Detailed Parameters
| 1 |
Roll Forming Machine
|
Roofing roll forming machine |
| 2 |
Machine structure
|
Wall board structure |
| 3 | Total power |
About 9.5kw |
| 4 |
Roller stations
|
15 stations |
| 5 |
Productivity
|
0-20m/min |
| 6 |
Drive system
|
By chain |
| 7 |
Diameter of shaft
|
￠70mm solid shaft |
| 8 |
Voltage
|
380V 60Hz 3phases (Customized) |
| 9 |
Color Of The Machine
|
Bule and yellow |
| 10 |
Deliver time
|
60 days |
| 11 |
Terms Of Payment
|
30%T/T 70% pay before shipment |
3. Profile drawing
4. The Chart of Process Flow
Hydraulic Decoiler—Roll Forming—Cutting—Out table

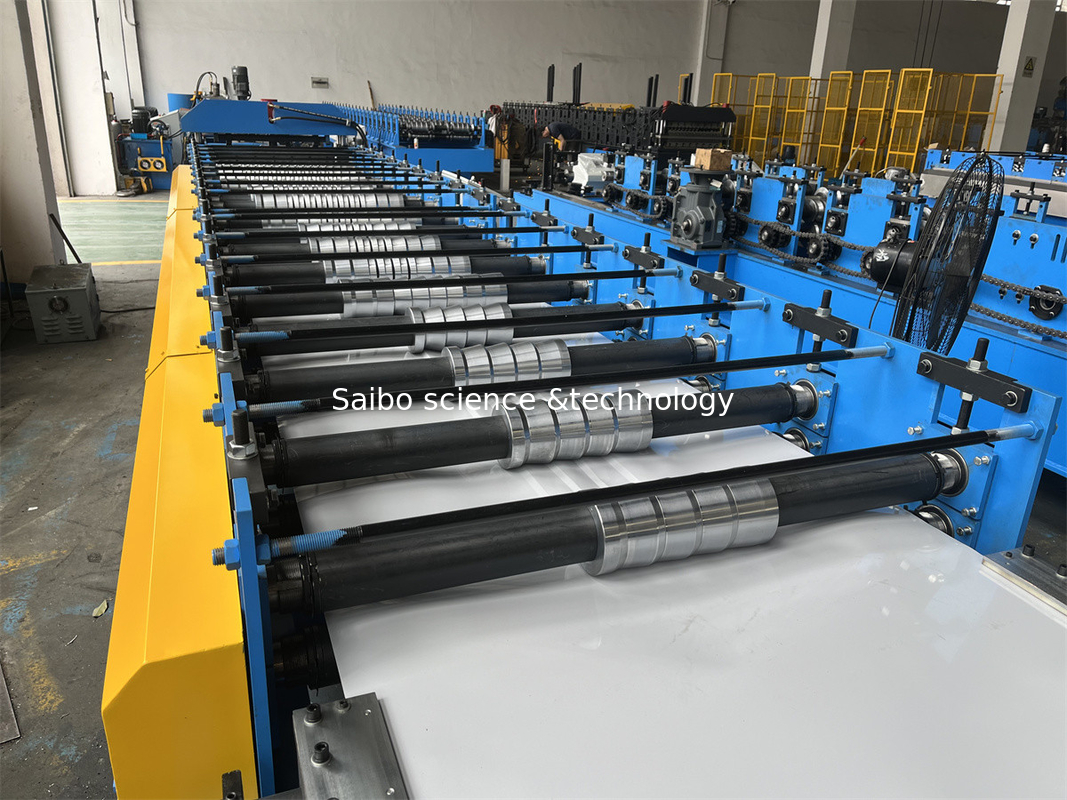

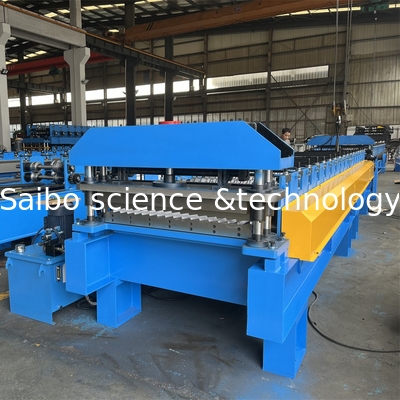

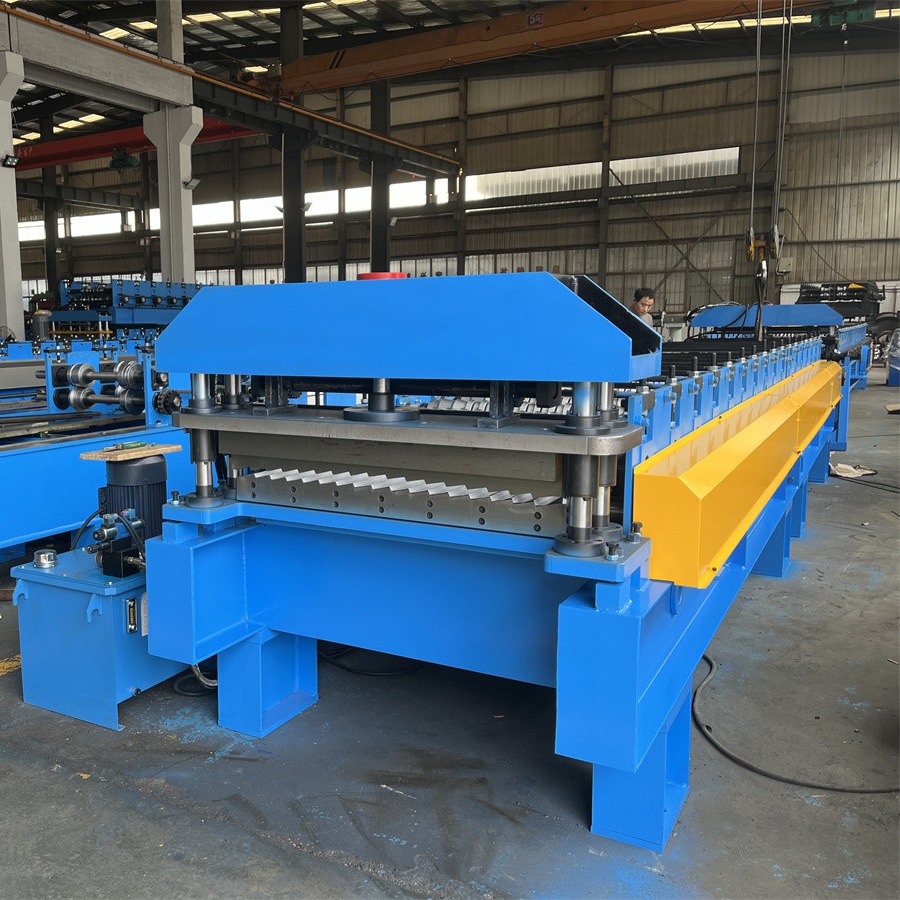

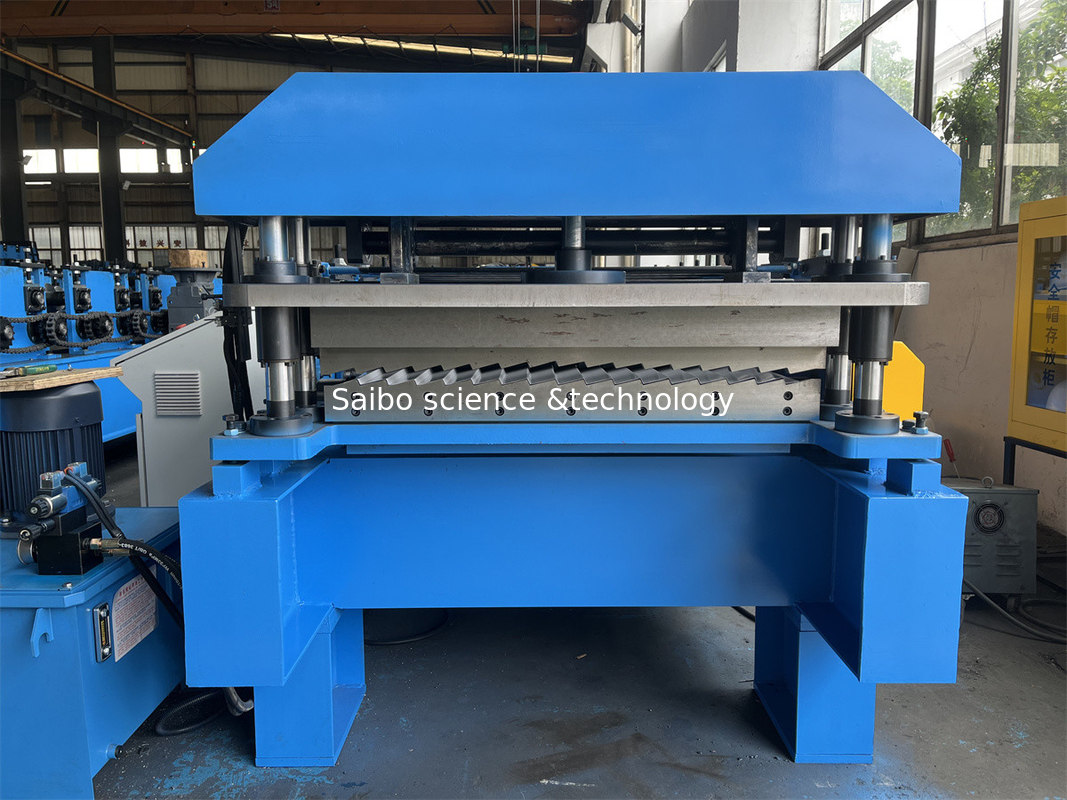

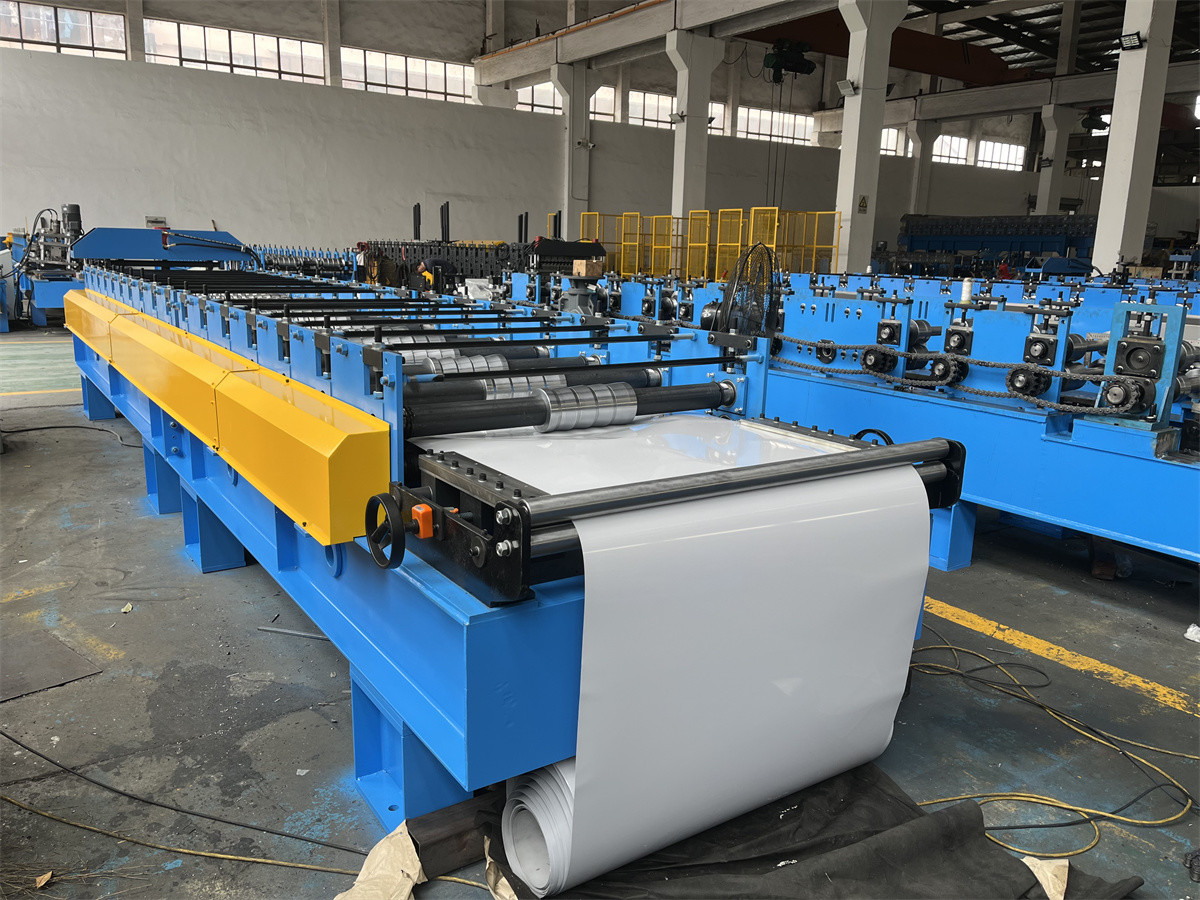

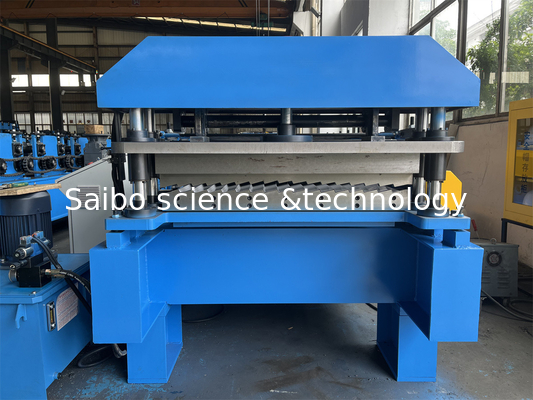

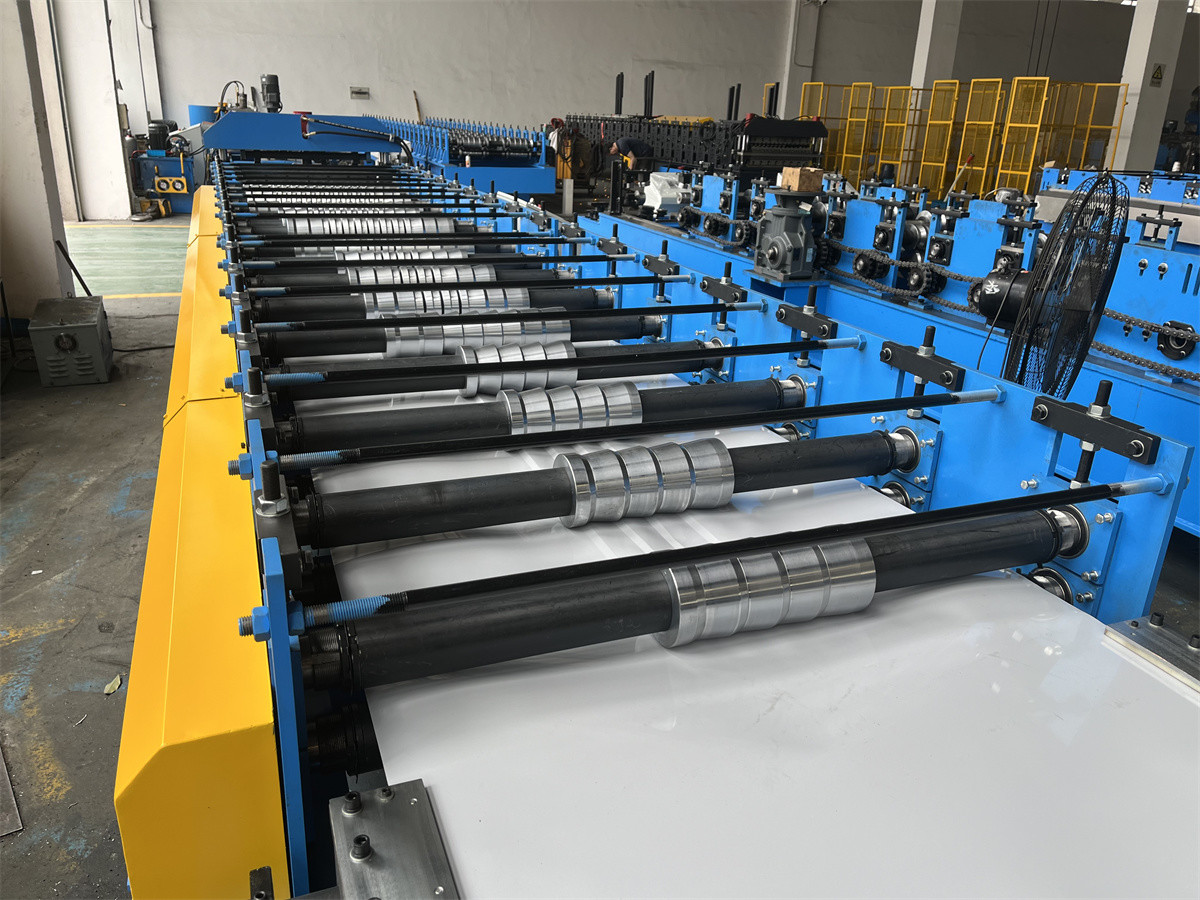

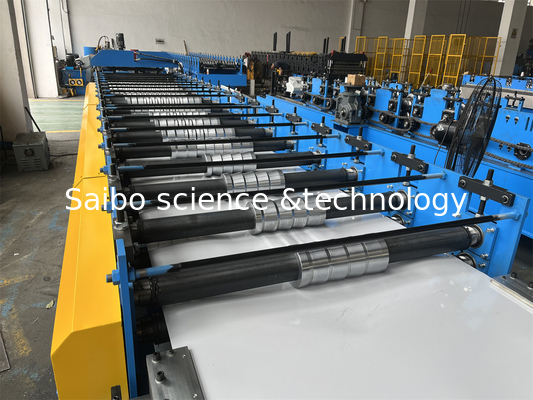

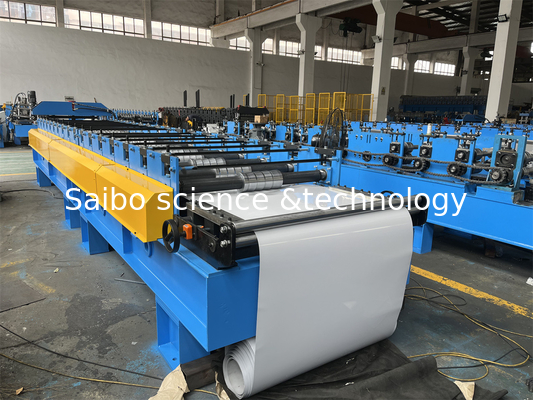

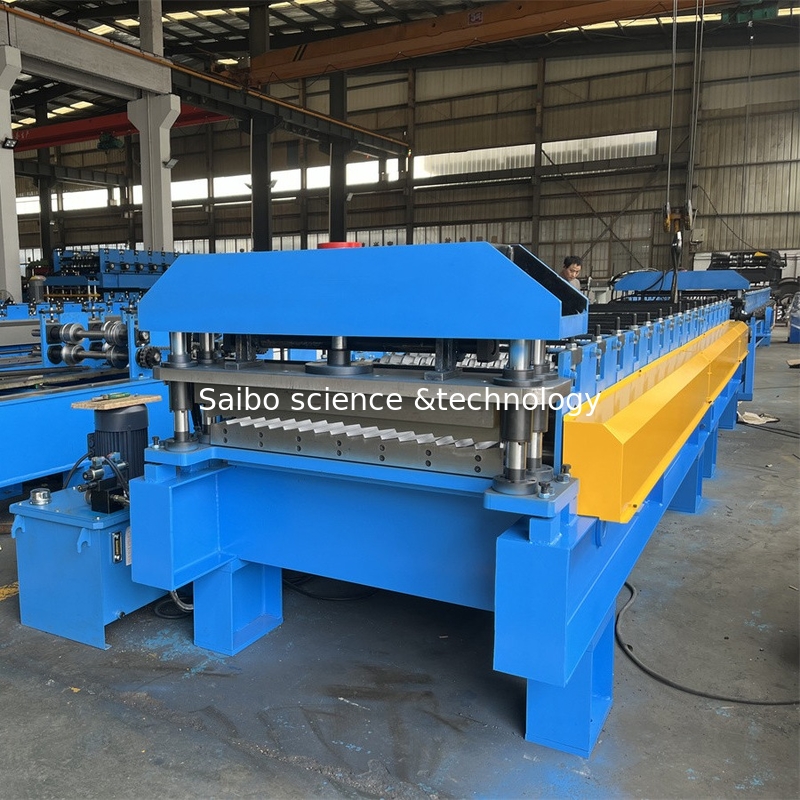

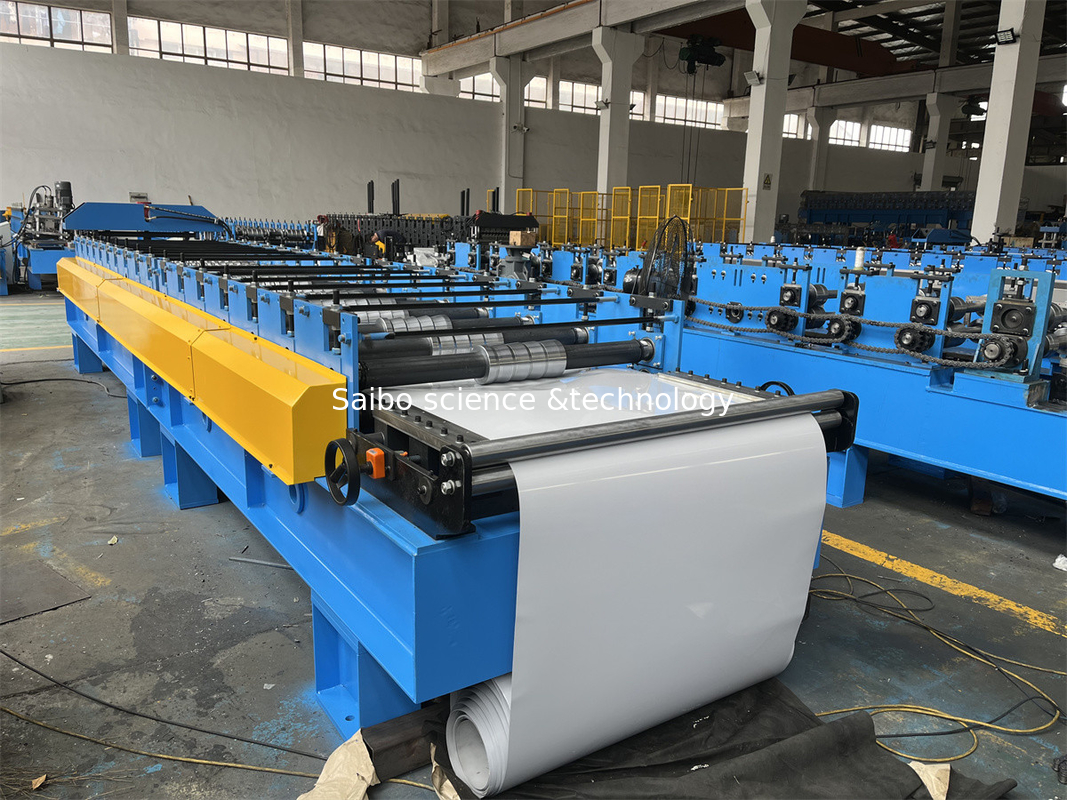

5. Machine photos for reference
6. Specification of Components
(1) 5T Hydraulic Un-coiler
(2) Main Roll Forming Machine
(3) Machine Structure

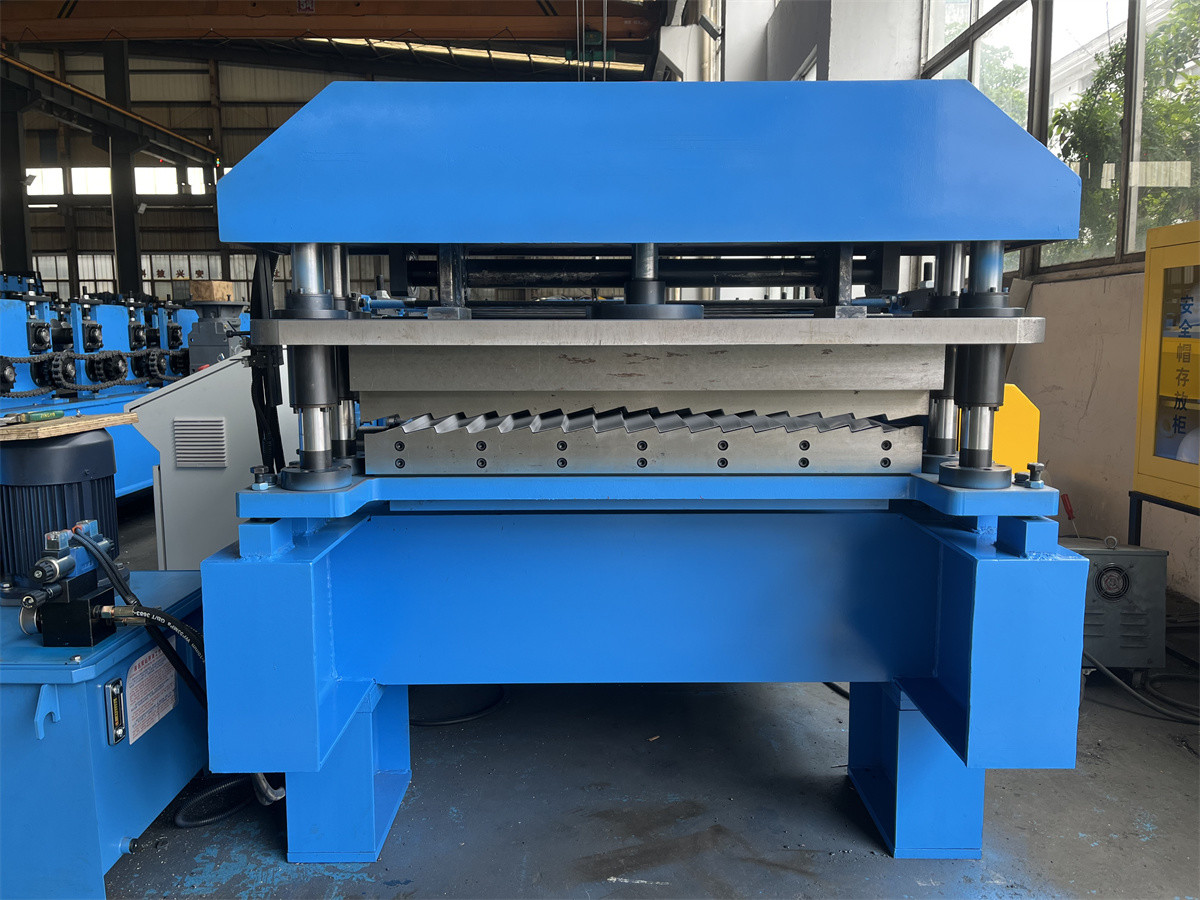

(4) Hydraulic cutting system
(5) Computer Control Cabinet
7. FQA
Q1. What are the main key points for selecting right machines?
