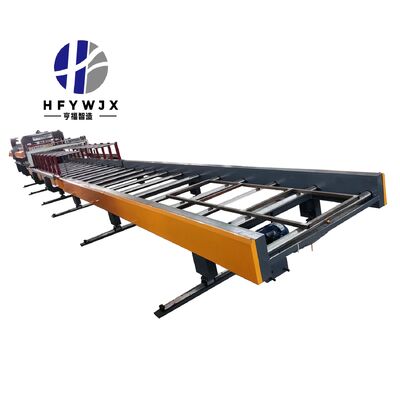

This fully automatic palletizing machine is a high-efficiency industrial stacking device specially designed for integration with metal sheet and color steel tile production lines. Utilizing electric drive and 1-inch chain transmission, it delivers stable power output with minimal failure rates.

The machine enables continuous automatic stacking operations, eliminating manual handling to significantly reduce labor costs while enhancing workplace safety and production stability. Built for long-term operation in demanding industrial environments, it reliably meets high-intensity factory production requirements.

Robust Construction & Performance

Main frame constructed from 280mm channel steel for solid structure and exceptional rigidity
Superior shock resistance for stable operation
6-ton load capacity for heavy-duty applications
Processing length range: 1500mm to 6000mm
Feeding width: 600mm to 950mm
Maximum stacking height: 300mm

These flexible size specifications ensure compatibility with various conventional metal sheet and profile products, maintaining stable stacking performance across different material specifications.

Intelligent Control System

Equipped with an independent touch-screen control cabinet and PLC control system, this palletizer delivers intelligent operation capabilities. Users can quickly set parameters, adjust stacking modes, and fine-tune positioning accuracy to ensure neat, orderly stacking results.

The precision control system effectively prevents material deviation, surface wear, and collision damage, significantly improving finished product appearance quality and stacking uniformity.

Technical Specifications

Model NO	Fully automatic palletizing machine
Condition	New
Usage	Palletizing
Rack	280mm channel steel
Use length range	1500mm-6000mm
Color	Customized
Type of Driven	Chain drive
Transmission Method	Electric
Maximum palletizing height	0mm-300mm
Control system	Separate touch screen electric control box
Customized	Customized
Specification	12500mmX2000mmX1500mm
Origin	Cangzhou, Hebei
Warranty	1 year
Transport Package	Plastic Film & Steel Wire Fixed
Production Capacity	400sets/year

Product Images

Frequently Asked Questions

Can machines be customized according to our drawings?

Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.

What is the structure of the machine frame?

It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.

Do you have customers for your equipment in our country?

Yes, we have established customers in the Middle East, North Africa, and various European countries.

What are the available cutting methods?

Hydraulic Flying Shear or Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)

Can a laminating machine be added?

Yes, it allows for an integrated production line combining lamination and forming.
