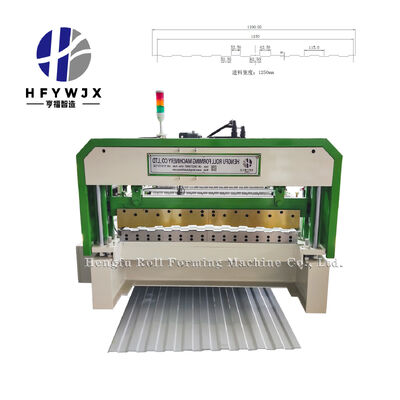

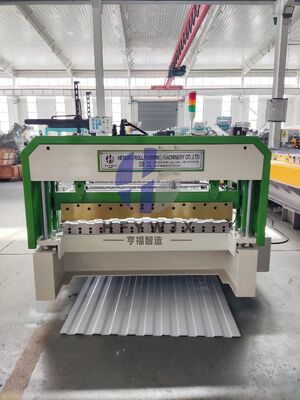

High Precision C8 Corrugating Machine with PLC Control System for 0.3-0.8mm Thickness Roofing Sheets

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model NO:

C8 Roll Forming Machine

Usage:

Roof, Wall, Floor

Thickness:

0.3-0.8mm

Customized:

Customized

Control System:

PLC

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

c8 trapezoidal roll forming machine

c8 trapezoidal sheet roll forming machine

plc trapezoidal roll forming machine

Product Description

C8 Galvanized Steel Sheet Roll Forming Machine for Metal Roofing Panels

The C8 corrugating machine manufactured by Dongguang Hengfu Roll Forming Machine represents a new generation of high-efficiency roll forming equipment, specifically engineered to meet the growing demands of modern construction industries. Designed for the production of C8 profile corrugated metal sheets, this machine integrates advanced automation technology with precision engineering to deliver outstanding performance, consistency, and durability.

From coil decoiling, material feeding, and roll forming to hydraulic cutting and automatic stacking, the entire production process is seamlessly connected, ensuring continuous and stable operation with minimal manual intervention.

Key Features

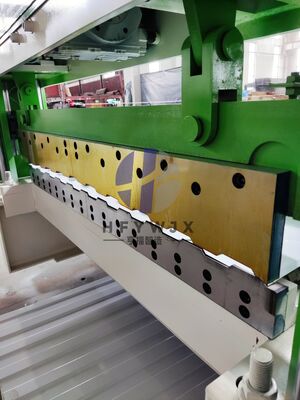

Patented linear guide rail cutting system for enhanced precision and stability
Reduced vibration and smoother motion compared to conventional systems
Extended lifespan of critical components
High-speed production capabilities while maintaining quality standards
CNC-machined forming rollers with advanced heat treatment
Excellent wear resistance and long-term accuracy

Technical Specifications

Category	Item	Specification
Material	Raw Material	PPGI or Galvanized steel
	Thickness	0.3-0.8 mm
	Material Width	1 m (can be customized)
Product	Coils Weight	5T
Product	Shaft OD	70mm
Machine	Rolled Material	45 Steel
	Machine Frame	350H Steel Frame
	Machine Size	Approx. 11500mm x 1800mm x 1600mm
	Machine Weight	Approx. 6.5 ton
	Machine Color	As customer request
Power	Working Speed	0-35 meter/min
	Motor	China brand
	Main Power	7.5 KW Servo motor
	Voltage	380v 50hz 3PH (or customized)
Control System	Labour	1 person
Control System	Language	Chinese, English or customer requirements

Frequently Asked Questions

Q1: Are you a trading company or a factory?

A1: We are a manufacturer located in Cangzhou, Hebei. We have our own product design team. Welcome to visit our factory and inspect the quality of our machines on-site.

Q2: Do you have after-sales support?

A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.

Q3: Do you sell only standard machines?

A3: No, most of our machines are built according to customers specifications, using top brand components.

Q4: What will you do if the machine is broken?

A4: We provide 12 months free warranty and free technical support for the whole life of any machine. If the broken parts can't be repaired, we can send new parts to replace the broken parts freely, but you need to pay the express cost. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply technical support for the entire life of the equipment.

Q5: Can you finish the machine during the delivery time?

A5: We will finish the machine in time according to determined lead time.
