C8 Trapezoidal Roll Forming Machine with PLC Control System for High Speed 35m/min Metal Sheet Equipment 0.3-0.8mm Thickness

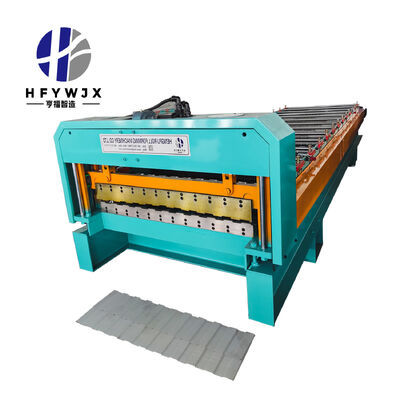

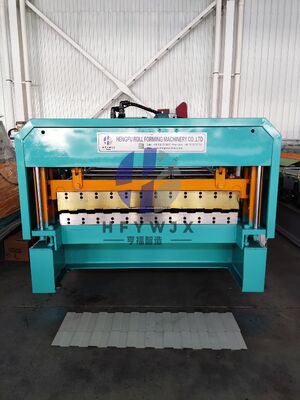

The C8 corrugated sheet forming machine produced by Dongguang Hengfu Roll Forming Machine is a complete, integrated production line designed for high efficiency, precision, and durability. The system typically consists of several key components, including a decoiler (manual or hydraulic), a feeding and leveling unit, a roll forming system with multiple forming stations, a hydraulic cutting device featuring a patented linear guide rail system, and an automatic stacking system.

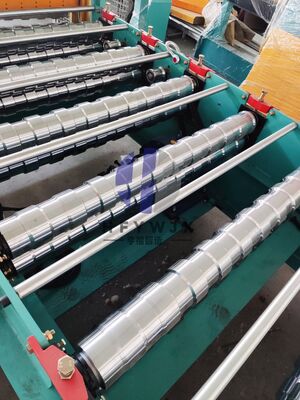

During operation, the raw material coil is first unwound and fed into the leveling system, ensuring smooth and accurate entry into the roll forming section. The material then passes through a series of precision rollers, gradually forming the characteristic C8 corrugated profile. The advanced drive system, powered by a high-quality motor and gearbox, ensures synchronized movement across all forming stations, resulting in consistent and high-quality output.

The patented linear guide rail cutting system plays a critical role in enhancing production efficiency and product accuracy. It allows for high-speed, stable cutting with precise length control, reducing waste and improving overall productivity. Compared with conventional cutting systems, this design significantly reduces vibration and mechanical stress, ensuring longer service life and lower maintenance requirements.

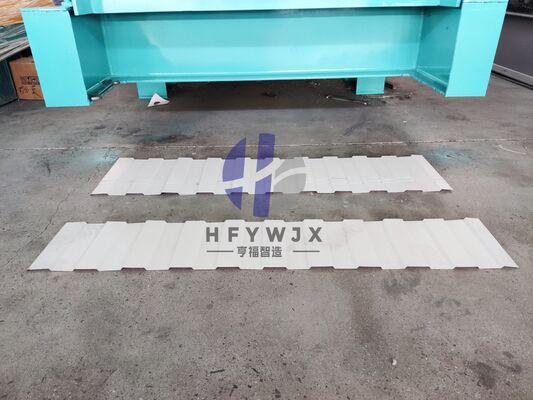

The finished panels are lightweight yet strong, offering excellent corrosion resistance, durability, and drainage performance. These characteristics make them ideal for a wide range of applications, including industrial buildings, commercial structures, warehouses, and residential roofing.
