| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

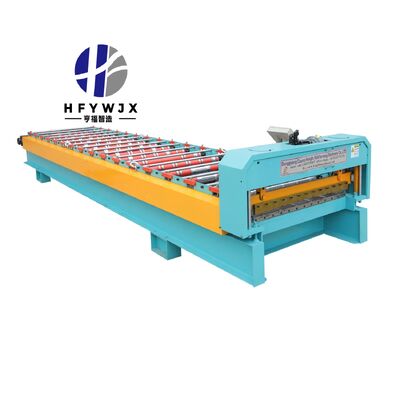

The entire machine frame is constructed from high-strength I-beams and premium steel sections, ensuring a robust and durable structure. The 890 type roll forming machine is typically welded with 250# I-beams, providing exceptional load-bearing capacity and long-term stability. This heavy-duty frame effectively supports all machine components, minimizes vibration during operation, and guarantees smooth and precise forming performance even under continuous production conditions.

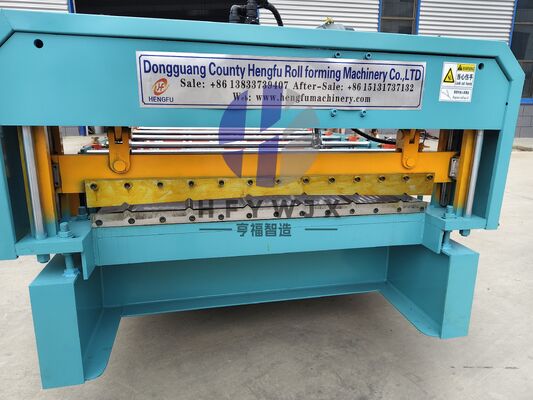

The machine is equipped with a high-performance hydraulic system, including both profiling and shearing hydraulic cylinders.
This dual-cylinder design ensures high efficiency, stable operation, and consistent product quality, making it ideal for large-scale production.
The PLC control system serves as the core of the entire machine, enabling fully automatic operation. By integrating advanced programming, the system can receive and process signals from various sensors, including pulse encoders and limit switches. It precisely controls motors, hydraulic solenoid valves, and other key components according to preset parameters.
This ensures accurate synchronization of forming, feeding, and cutting processes, significantly improving production efficiency while reducing manual intervention and operational errors.
| Model NO. | 890 |
|---|---|
| Condition | New |

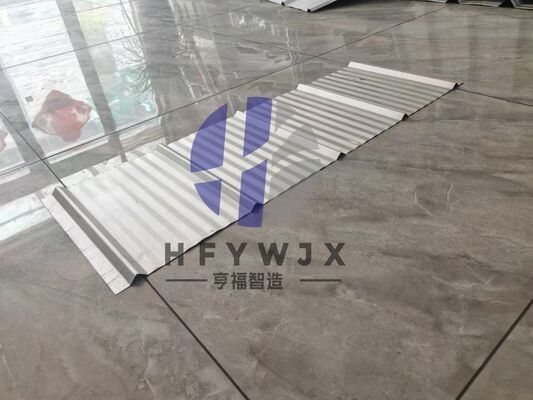

| Usage | Roof, Wall |
| Feeding Width | Φ1250mm |
| Machine Frame | 350H steel frame |
| Forming Speed | 0-40m/Min |
| Color | Customized |
| Type of Driven | Chain Transmission |
| Transmission Method | Electric |

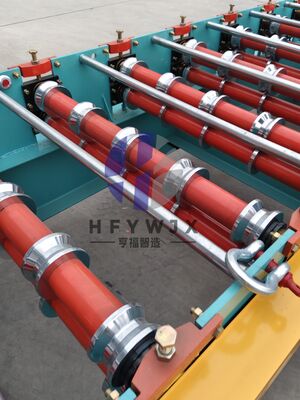

| Number of rolling mill sets | 16 row molding |
| Spindle diameter | Φ70mm (Solid shaft) |
| Customized | Customized |
| Feeding method | Double hand rocking feeding rack |
| Specification | Φ9000mm*Φ1300mm*Φ1400mm (L*W*H) |
| Origin | Cangzhou, Hebei |
