Integrated Design Steel C And Z Purlin Machine PLC Control System Full Automatic

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, SGS

Customized:

Customized

Condition:

New

Control Type:

Artificial

Automatic Grade:

Automatic

Transmission Mode:

1.2-1.5-Inch Chain Drive

Cutting Material:

Infinite Shear

Transport Package:

Plastic Film & Steel Wire Fixed

Specification:

9300mm*1400mm*2000mm

Package Size:

930.00cm * 140.00cm * 200.00cm

930.00cm * Package Gross Weight:

6500.000kg

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

c and z purlin machine plc control

integrated c and z purlin machine

integrated c z purlin forming machine

Product Description

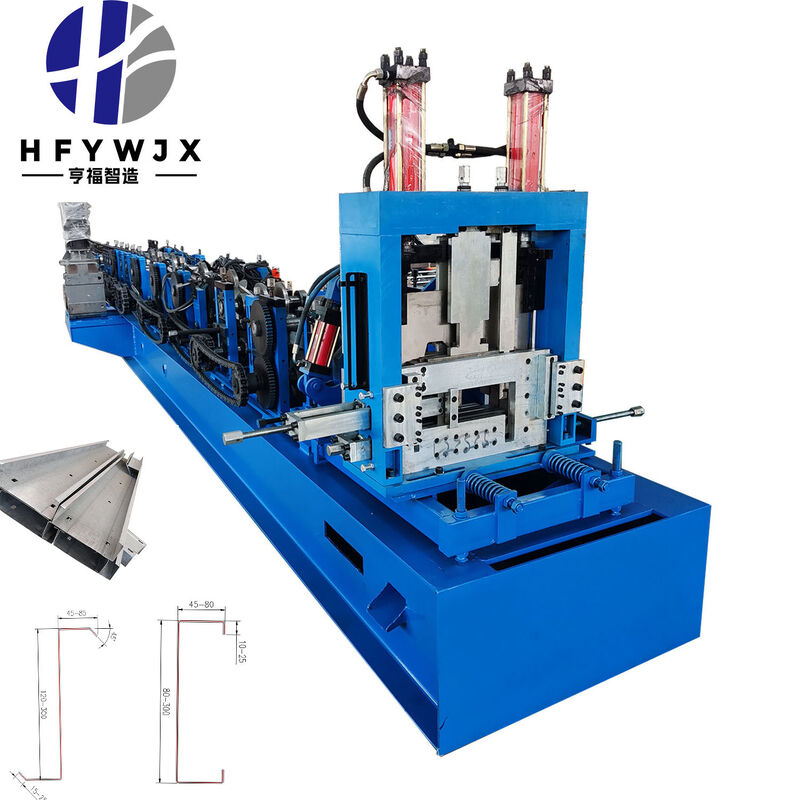

High-Speed Intelligent Integrated CZ Steel Equipment

CZ steel equipment is a cold-formed steel equipment used in the production of "C-type, Z-type" steel structures in the steel structure industry. The finished products produced by this machinery and equipment are "C/Z-shaped steel (purlins)", which are mostly used for supporting the beams and wall beams of buildings, factories and workshops.

As a single roll forming unit, it can produce various specifications of CZ type purlin products, mainly consisting of passive loading, leveling device, punching device forming host, hydraulic station and computer control system for shearing after forming, and can be customized to high standards according to customer needs.

Key Features

Equipped with 13 sets of CZ exchange modules for easy switching
Manual 180-degree rotation eliminates complex disassembly and mold replacement
Electric button adjustment for flexible parameter changes
Free specification changes to meet diverse production needs
Easy operation reduces technical threshold and labor costs
Space-saving integrated design maximizes production efficiency

Production Benefits

Saves conversion time and reduces production waste
Improves production efficiency and reduces material loss
Convenient for processing both large and small orders
Handles mass production and small-batch customization
Shortens production preparation cycle
Enhances market competitiveness through cost reduction

Technical Specifications

Model NO	CZ steel equipment
Condition	New
Color	Blue or According to Customers' request

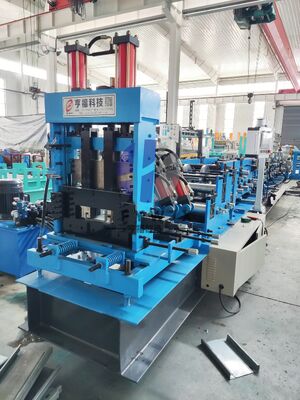

Cutter Type	Hydraulic Cutting

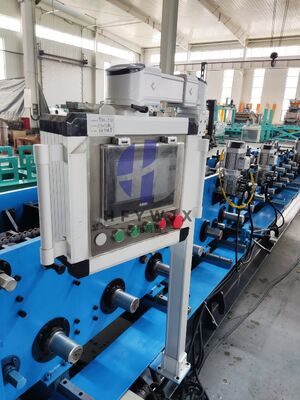

Control System	Controlled by PLC
Transmission Method	Hydraulic Pressure
Automation	Full-Automatic
Type of Driven	Chain Transmission
Machine Frame	500H steel and 450H rigid welding
Shaft Material	45#
Specification	9300mm1400mm2000mm
Type	Cold Roll forming machine
Customized	Customized
Warranty	1 year
Place of Origin	Hebei, China
Production Capacity	400/Set

Performance Parameters

Parameter	Q195, Q235, Q345
Forming speed	25/min (according to the number of holes)
Cutting method	Infinite shear system
Cutting blade material	Cr12MoV
Roll material	GCr15
Hydraulic station	Hydraulic station power 22KW

Product Gallery

Frequently Asked Questions

How should the machine be stored when not in use for an extended period?

Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.

Can it be integrated into a complete color steel production line?

Yes, it can form a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.

Can a laminating machine be added?

Yes, it allows for an integrated production line combining lamination and forming.

Can you provide semi-automatic or fully automatic receiving tables?

Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
