| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

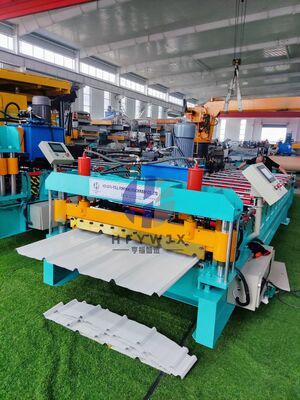

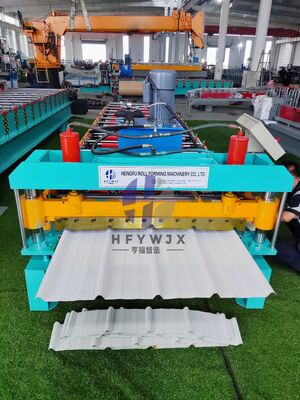

The 1040 Type Trapezoidal Roof Tile Roll Forming Machine is specially designed for producing high-quality trapezoidal roofing sheets. It is widely used in industrial buildings, warehouses, agricultural structures, and residential roofing systems due to its excellent strength, waterproof performance, and modern appearance.
This machine is built with a strong 300H steel frame, ensuring excellent rigidity and stability during continuous operation. The heavy-duty structure reduces vibration and guarantees precise forming accuracy, even under high-speed production conditions.
With a forming speed of 0-40 meters per minute, the 1040 trapezoidal roll forming machine offers efficient production capacity while maintaining consistent panel quality. It is suitable for large-scale manufacturing, helping reduce labor costs and improve overall productivity.

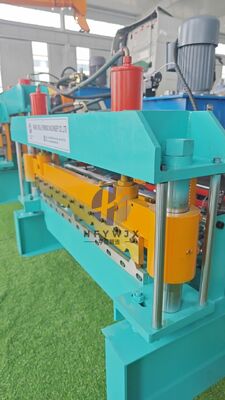

The machine supports a feeding width of 1200mm and is equipped with 13 rows of forming rollers, ensuring accurate and smooth trapezoidal profile shaping. The rollers are made for long service life and high precision, producing clean and uniform roof tiles.
It adopts a chain drive system with electric transmission, providing stable and reliable operation. The Φ70mm solid shaft spindle enhances machine strength and durability, ensuring long-term performance with minimal maintenance requirements.
Overall, the 1040 trapezoidal roof tile roll forming machine is a reliable and cost-effective solution for modern roofing production. With stable structure, customizable design, and efficient output, it is an ideal choice for manufacturers seeking high-quality roof panel production.
| Model NO | 1040 |
|---|---|
| Condition | New |
| Usage | Roof |
| Feeding Width | 1200mm |
| Machine Frame | 300H steel frame |
| Forming Speed | 10-15M/min |
| Color | Customized |
| Type of Driven | Chain drive |
| Transmission Method | Electric |
| Number of rolling mill sets | 13 row molding |
| Spindle diameter | Φ70mm (Solid shaft) |
| Customized | Customized |
| Feeding method | Iron plate feeding rack |
| Specification | 7000mm x 1300mm x 1500mm |
| Origin | Cangzhou, Hebei |
| Warranty | 1 year |
| Usage | Building |
