| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

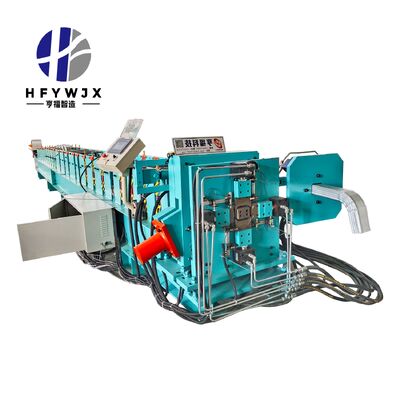

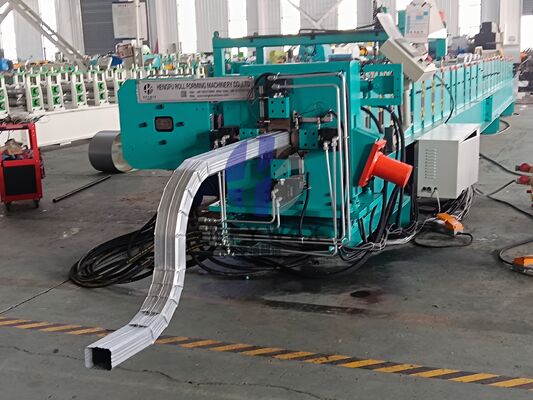

The downpipe making machine is a key piece of equipment for producing rainwater downpipes. It is widely used in industrial workshops, warehouses, commercial buildings and residential housing, providing reliable drainage solutions for various construction projects.
With a reasonable structure and stable performance, the machine has an overall dimension of about 10500mm × 1000mm × 1500mm. It is equipped with a heavy-duty frame and thick wall panels to ensure smooth operation under long working hours.
| Product Name | Downpipe Forming Machine |
|---|---|
| Overall Dimensions | Approx. 10500mm x 1000mm x 1500mm |
| Machine Frame | 400H steel frame |
| Wall Panels | 16mm thick |

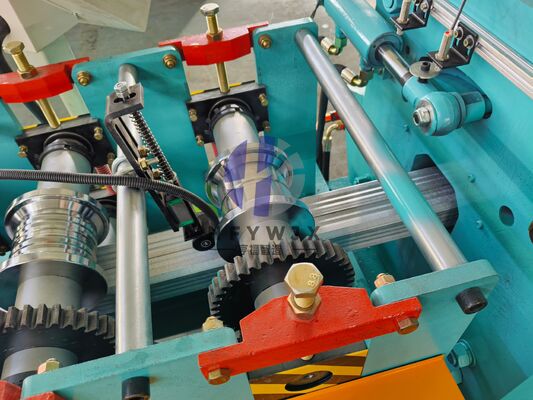

| Number of Roll Sets | 24 main rolls |
| Roll Material | 45# steel, rough-machined, precision-machined, and electroplated with hard chrome plating |
| Spindle Material | 45# Steel |
| PLC | Delta, Chinese and Russian languages |
The core structure remains intact; only the auxiliary components are removed to ensure that precision is maintained.
Hydraulic Flying Shear
Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
The entire machine comes with a 12-month warranty, excluding wear parts.
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.

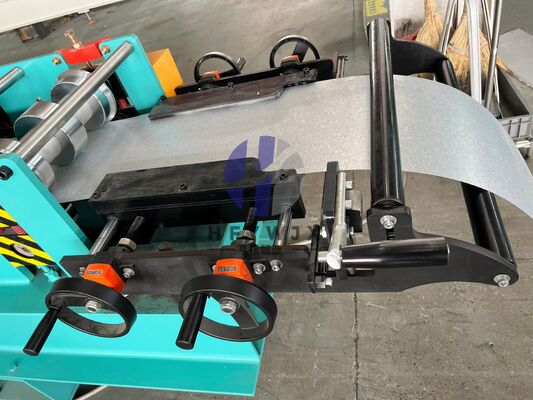

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
