Continuous Downpipe Roll Forming Machine With PLC Control And 24 Main Roll Sets

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Colored Steel

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof, Wall

Transmission Method:

Electric

Material Thickness:

0.4-0.6mm

Model NO.:

Downpipe Forming Machine

Control System:

PLC Control

Transport Package:

Plastic Film & Steel Wire Fixed

Package Size:

1050.00cm * 100.00cm * 150.00cm

Package Gross Weight:

7000.000kg

Specification:

10500mmx1000mmx1500mm

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

continuous downpipe roll forming machine

continuous downspout roll forming machine

plc downpipe roll forming machine

Product Description

Continuous Production Efficient Downpipe Forming Machine

The Downpipe Forming Machine (also known as Downspout Roll Forming Machine) is a highly specialized piece of industrial equipment, purpose-built to manufacture high-quality metal rainwater downpipes in a wide range of profiles, including round, square, and rectangular shapes. This machine is an essential solution for roofing drainage systems, serving residential, commercial, and industrial building projects worldwide with reliable, consistent performance.

Engineered for durability and precision, this downpipe forming machine boasts a robust construction designed for long-term, heavy-duty operation. It features a sturdy 400H steel frame and 16mm thick wall panels, ensuring exceptional structural rigidity and stability during continuous production. The machine is equipped with 24 main roll sets, crafted from 45# steel that undergoes rough machining, precision finishing, and hard chrome electroplating, delivering outstanding wear resistance and dimensional accuracy. The spindles are also made from high-quality 45# steel, further enhancing the machine's overall strength and reliability. For intelligent operation, it is fitted with a Delta PLC control system that supports both Chinese and Russian languages, making it user-friendly for operators across different regions. With overall dimensions of approximately 10500mm x 1000mm x 1500mm, it is optimized for efficient factory floor integration.

This downpipe forming machine integrates multiple key processes into a single, seamless continuous production line, including decoiling, roll forming, cutting, and optional pipe bending functions. This all-in-one design eliminates the need for separate equipment, streamlines production workflows, and significantly boosts operational efficiency. Paired with its robust frame, precision-engineered rollers, and advanced control system, the machine guarantees stable, uninterrupted production, precise dimensional accuracy for every downpipe, and a smooth, flawless surface finish on the final products.

The machine is highly versatile, compatible with a wide range of common metal materials used in downpipe manufacturing, including galvanized steel, pre-painted steel, aluminum, and copper. It fully supports customized profile sizes tailored to specific customer requirements, allowing for flexible production to meet diverse project specifications, regional building codes, and unique design needs. Whether for standard residential drainage systems or large-scale industrial roofing projects, this downpipe forming machine delivers adaptable, high-quality output.

Technical Specifications

Product Name	Downpipe Forming Machine
Overall Dimensions	Approx. 10500mm x 1000mm x 1500mm
Machine Frame	400H steel frame
Wall Panels	16mm thick
Number of Roll Sets	24 main rolls
Roll Material	45# steel, rough-machined, precision-machined, and electroplated with hard chrome plating
Spindle Material	45# Steel
PLC	Delta, Chinese and Russian languages

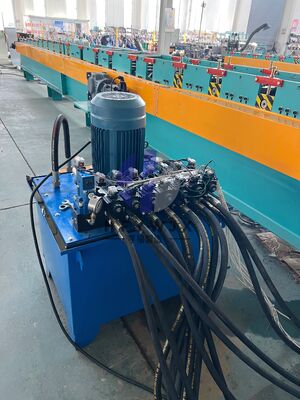

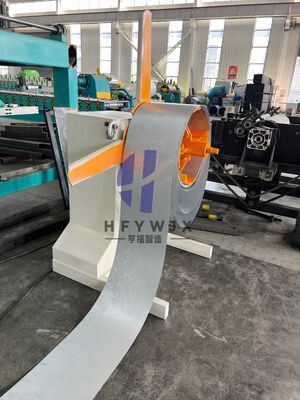

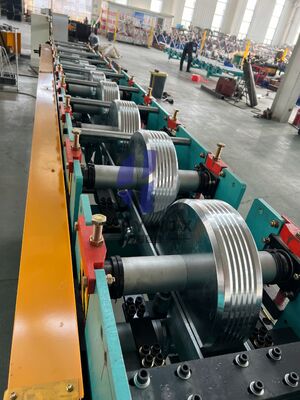

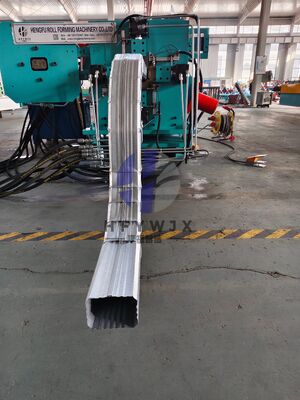

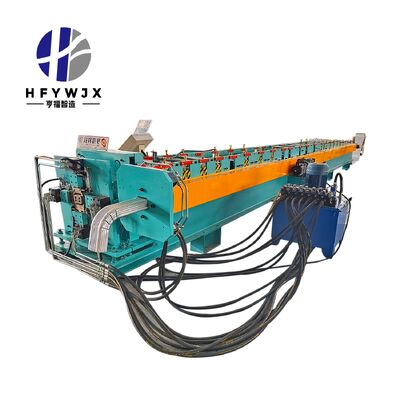

Product Images

Frequently Asked Questions

Q: How many people are required to operate the machine?

A: It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

Q: What are the available cutting methods?

A: Hydraulic Flying Shear
Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)

Q: Can it be connected to an automatic stacker?

A: Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.

Q: What checks need to be performed before starting the machine?

A: Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.

Q: How long is the warranty period?

A: The entire machine comes with a 12-month warranty, excluding wear parts.
