High Performance Fence Roll Forming Machine with Non-stop Flying Shear Cutting, 16 Rows Rollers, and Automatic Stacking

Detail Information

Product Description

Detail Information

Raw Material:

Galvanized Steel / PPGI Color Coated Steel Coil

Processable Thickness:

0.3‑0.6mm

Feeding Width:

138mm

Finished Panel Width:

111mm

Running Speed:

20‑23 M/min

Forming Passes:

16 Rows Rollers

Cutting Mode:

Non‑stop Flying Shear

Length Tolerance:

±2mm

Matching Auxiliary Equipment:

1.5t Decoiler, Labeler, Conveyor, Automatic Stacker

Power Supply:

380V 50Hz Three‑phase

Total Weight:

Around 8000kg

Highlight:

Non-stop Flying Shear Cutting Fence Roll Forming Machine

16 Rows Rollers Metal Fence Production Line

Automatic Stacking Steel Security Fence Post Line

Product Description

High Performance Metal Palisade Picket Roll Forming Line Automatic Steel Security Fence Post Production Line

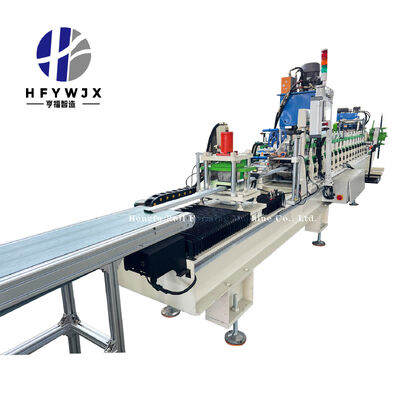

This complete-set fence roll forming machine is designed and built by Dongguang Hengfu Roll Forming Machinery Co., Ltd. It is a fully automated turn-key solution for manufacturing corrugated metal fence panels. The whole production sequence includes decoiling, material guiding, progressive roll forming, non-stop flying shear cutting, automatic labeling, material transfer and automatic stacking. Operators can switch among manual, automatic and reverse modes according to actual production requirements. It runs steadily with galvanized and color-coated steel coils for mass production.

Finished Fence Panel Applications

The corrugated metal fence panels produced by this equipment serve dual purposes of safety protection and exterior decoration.

Residential projects such as villas and housing communities use them as stylish boundary fences to secure private courtyards
Industrial plants, storage warehouses and logistics yards install these panels as robust perimeter barriers
Municipal roadside protection and scenic area isolation applications
Agricultural sites like farms and orchards use them to partition planting and breeding areas

Benefiting from multi-angle folded cross-section, the fence panels obtain excellent stiffness and impact-resistant performance. The coated surface delivers reliable anti-rust capacity for long-term outdoor exposure. Modular installation on-site saves plenty of welding work and shortens construction cycles, while maintenance work after installation is minimal. Therefore, it is well accepted by metal profile processors and outdoor construction contractors.

Equipment Highlights

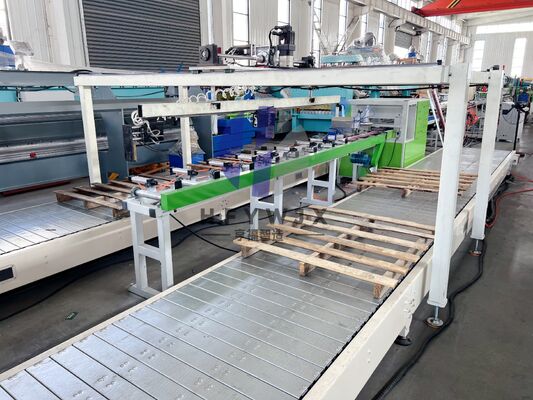

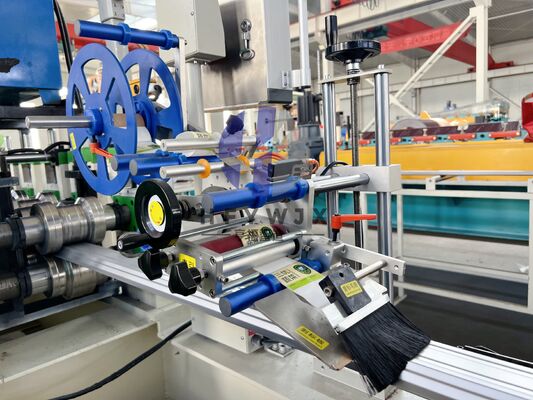

This full line comes with a comprehensive range of auxiliary machines: 1.5-ton hydraulic double-head decoiler, forming main unit, flying shear cutting device, pneumatic positioning conveyor, two-set automatic labeling machines and 3-meter automatic stacker, which greatly reduces manual workload.

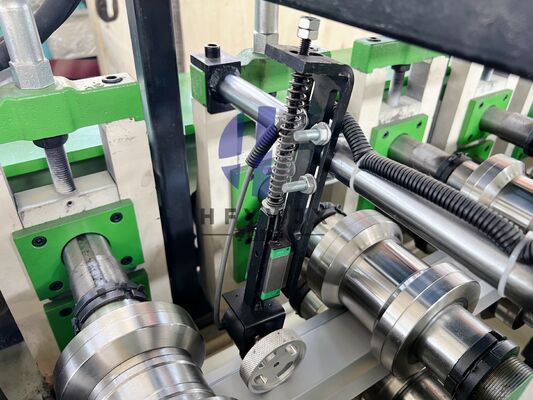

The main forming frame is constructed from heavy-duty 350H welded steel with post-weld anti-corrosion treatment and thick wall plates. 16 groups of hard-chrome plated forming rollers and solid 56mm main shafts are driven by stable chain drive system. It can sustain long-hour continuous operation and keep the original coating of steel strips intact without scratches.

Non-stop flying shear is one of its core strengths. Cutting proceeds without stopping the whole line, which boosts productivity and prevents profile distortion. Hardened Cr12 cutting blades realize clean burr-free cuts and require little routine maintenance. Equipped with Delta PLC touch screen supporting Chinese and English, the machine is fitted with wireless remote controller and three-color warning light for easy operation and real-time status feedback. Dust-proof organ bellows and cable drag chains effectively protect internal moving components and wiring.

Each production line undergoes full-function linkage test inside our factory prior to shipment. Modular design facilitates disassembly and container loading for oversea delivery. If you intend to start fence-profile manufacturing or upgrade old production facilities, this high-automation fence roll forming machine will be your dependable option.

Technical Specifications

Item	Specification
Equipment Name	Fence roll forming machine
Raw Material	Galvanized steel / PPGI color coated steel coil
Processable Thickness	0.3-0.6mm
Feeding Width	138mm
Finished Panel Width	111mm
Running Speed	20-23 m/min
Forming Passes	16 rows rollers
Cutting Mode	Non-stop flying shear
Control System	Delta PLC touch screen, Chinese & English
Length Tolerance	±2mm
Matching Auxiliary Equipment	1.5t decoiler, labeler, conveyor, automatic stacker
Power Supply	380V 50Hz three-phase
Total Weight	Around 8000kg

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
