High Speed 30m/min C16 Roof Panel Roll Forming Machine with Double Linear-Guide Hydraulic Cutting and 23 Rows Rollers

Detail Information

Product Description

Detail Information

Raw Material:

PPGI Color Coated Steel Coil

Processable Thickness:

0.3‑0.6mm

Input Coil Width:

1200 / 1250 mm

Finished Effective Width:

1030 mm

Production Speed:

0‑30 m/min

Forming Passes:

23 Rows Rollers

Cutting Mode:

Double Linear‑guide Hydraulic Cutting

Cutting Blade Material:

Cr12MoV

Control System:

Split PLC Touch Screen

Length Tolerance:

±1 mm

Power Supply:

380V 50Hz Three‑phase

Main Motor Power:

7.5 kw

Overall Dimension:

12000×1800×1600 mm

Total Machine Weight:

About 7.4 T

Highlight:

High Speed 30m/min Trapezoidal Roll Forming Machine

Double Linear-Guide Hydraulic Cutting C16 Roof Panel Roll Forming Machine

23 Rows Rollers Metal Roof Sheet Forming Equipment

Product Description

High Speed C16 Trapezoidal Sheet Machine Automatic High Precision Low Rib Metal Wall Panel Cold Roll Former

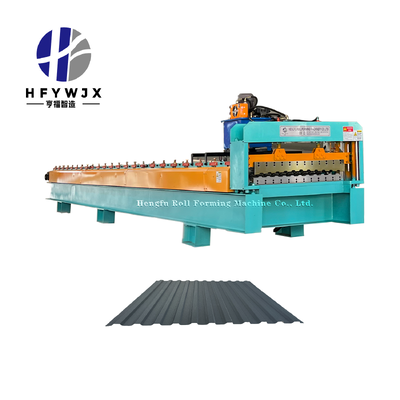

Manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd., this C16 roof panel roll forming machine is an automatic metal roof sheet forming equipment. It completes the full-process production including decoiling, material guiding, multi-pass roll forming, fixed-length cutting and finished-sheet output. It processes color-coated steel coils to produce YX12-103-1030 corrugated roof panels with adjustable high-speed output to satisfy large-batch building material production demands.

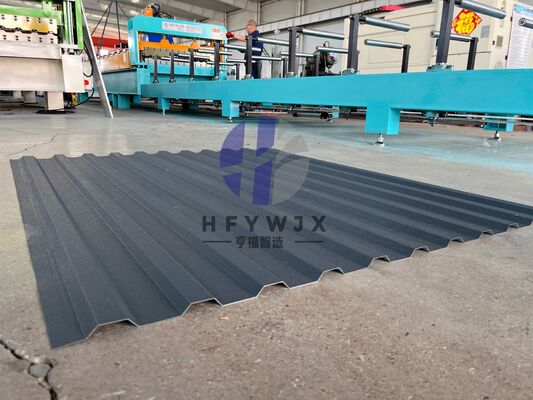

Application of Finished C16 Roof Panels

The C16 corrugated metal sheets produced by this machine are widely-used building materials for roofing and wall cladding.

Serve as main roof covering for workshops, warehouses, agricultural barns and large-size industrial plants, providing reliable waterproofing and weather resistance
Applied as exterior wall cladding for temporary prefab houses, storage sheds and market buildings
Feature good compression resistance and anti-corrosion performance with color-coated surface that withstands sun exposure and rain erosion for long-term outdoor service
Light-weight and easy-to-install features help shorten construction cycles and lower overall project costs for building contractors

Machine Performance & Advantages

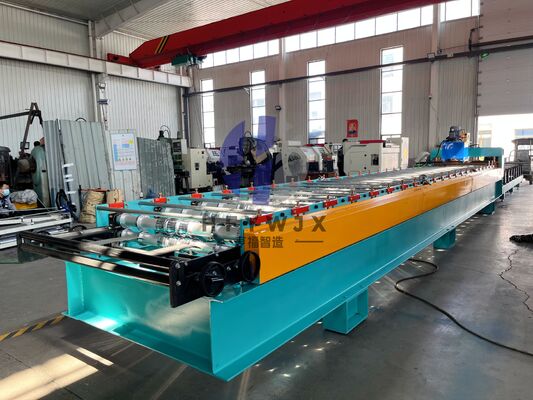

This roll forming machine adopts heavy-duty 350H steel welded frame with wall-plate structure, fitted with 14 mm thick carbon-steel wall boards. A total of 23 forming stations with precisely processed rollers are equipped. The rollers are made of 45# steel, going through rough-turning, fine-turning, outer-circle grinding and electroplating quenching treatment. The solid 70 mm main shafts and 1-inch chain transmission guarantee stable continuous high-speed operation without scratching the protective coating of raw steel strips.

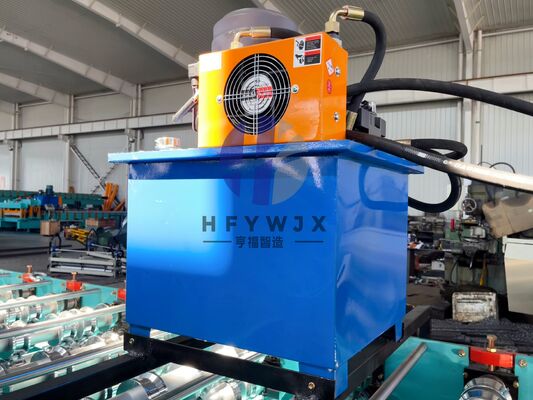

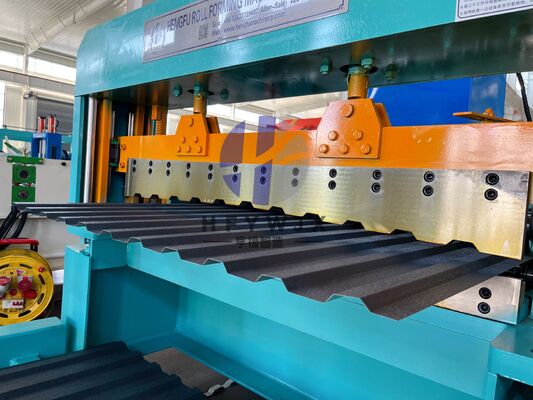

It adopts double linear-guide hydraulic cutting system. The cutting blade is made of Cr12MoV alloy steel, delivering burr-free clean cuts with low maintenance requirement. The split cantilever PLC touch screen works together with rotary counter for accurate fixed-length cutting. The length tolerance can be controlled within ±1 mm. Wireless remote control is available for convenient on-site operation.

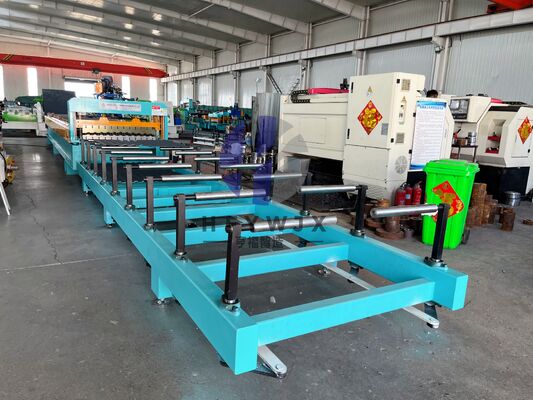

Every machine will complete full trial-run inspection inside our factory before shipment. Compact overall layout supports container loading for overseas shipping. Whether you are expanding existing building-material product lines or investing in new metal sheet production, this stable-running C16 roof panel roll forming machine is a practical production solution for your workshop.

Technical Specifications

Item	Specification
Equipment Name	C16 Roof Panel Roll Forming Machine
Raw Material	PPGI color coated steel coil
Processable Thickness	0.3-0.6mm
Input Coil Width	1200 / 1250 mm
Finished Effective Width	1030 mm
Production Speed	0-30 m/min
Forming Passes	23 rows rollers
Cutting Mode	Double linear-guide hydraulic cutting
Cutting Blade Material	Cr12MoV
Control System	Split PLC touch screen
Length Tolerance	±1 mm
Power Supply	380V 50Hz three-phase
Main Motor Power	7.5 kw
Overall Dimension	12000×1800×1600 mm
Total Machine Weight	About 7.4 T

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
