Heavy Duty C16 Roof Sheet Roll Forming Machine with 23 Rows Rollers for 0.3-0.6mm Thickness and Split PLC Touch Screen

Detail Information

Product Description

Detail Information

Processable Thickness:

0.3‑0.6mm

Input Coil Width:

1200 / 1250 mm

Production Speed:

0‑30 m/min

Forming Stations:

23 Rows Rollers

Control System:

Split PLC Touch Screen

Length Tolerance:

±1 mm

Main Motor Power:

7.5 kw

Overall Dimension:

12000×1800×1600 mm

Total Weight:

Approximately 7.4 T

Highlight:

23 rows rollers C16 Roof Sheet Roll Forming Machine

0.3-0.6mm processable thickness Trapezoidal Roll Forming Machine

Split PLC touch screen Roof Panel Roll Forming Machine

Product Description

Durable C16 Roof Sheet Roll Forming Machine Heavy Duty Automatic Micro Wave Trapezoidal Profile Making Roller

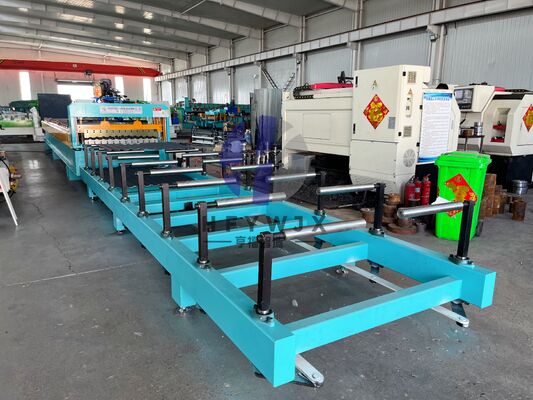

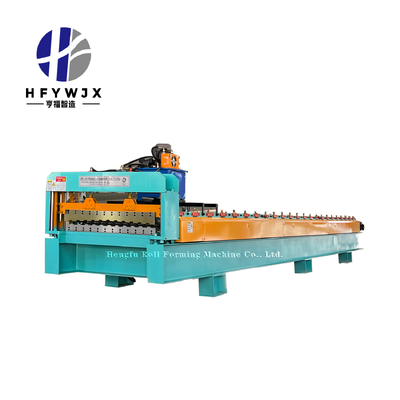

Produced by Dongguang Hengfu Roll Forming Machinery Co., Ltd., the C16 roof panel roll forming machine is an automatic roll‑former dedicated to manufacturing YX12‑103‑1030 corrugated metal roof sheets. It completes the full production workflow including decoiling, feeding guidance, multi‑station roll forming, fixed‑length hydraulic cutting and finished sheet output. Working with color‑coated steel coils, this machine supports adjustable running speed to meet different batch‑size production demands for building‑material manufacturers.

Applications of Finished C16 Roof Panels

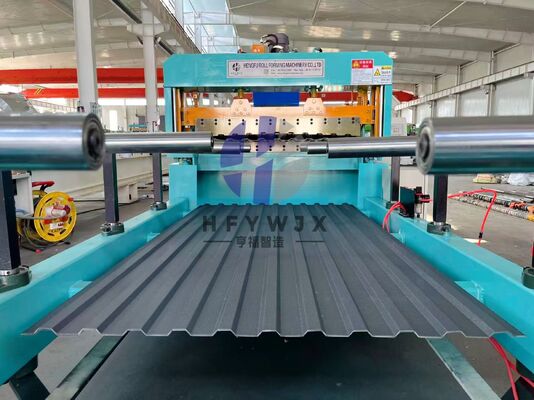

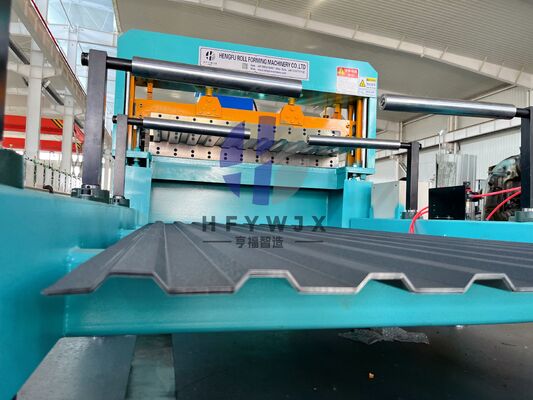

The corrugated metal sheets produced by this equipment are widely‑used industrial building panels for roofing and wall cladding.

Mainly applied as roof covering for large‑span factories, warehouses, workshops and farm buildings, offering good waterproof performance and weather resistance
Serves as exterior wall cladding for prefabricated houses, storage sheds and market buildings
Corrugated profile structure achieves decent load‑bearing strength while keeping light‑weight
Color‑coated surface resists UV rays and rain corrosion for long‑time outdoor service
Simple on‑site installation helps cut construction time and overall project investment for contractors

Machine Features and Advantages

Heavy‑duty 350H steel welded wall‑plate frame with 14 mm thick carbon‑steel wall boards

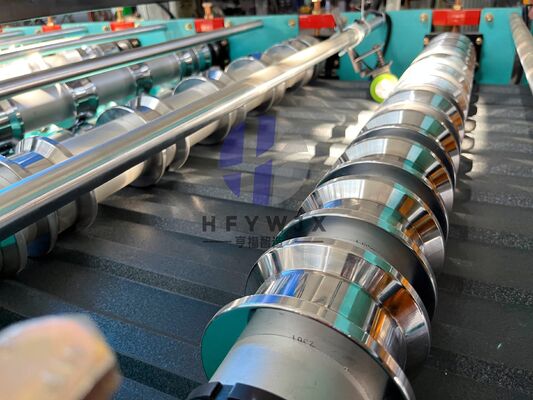

23 forming passes with forming rollers made of 45# steel, processed by rough‑turning, fine‑turning, outer‑circle grinding and electroplating quenching treatment
Solid 70 mm main shafts together with 1‑inch chain transmission ensure stable high‑speed continuous operation without scratching the coating on steel strips

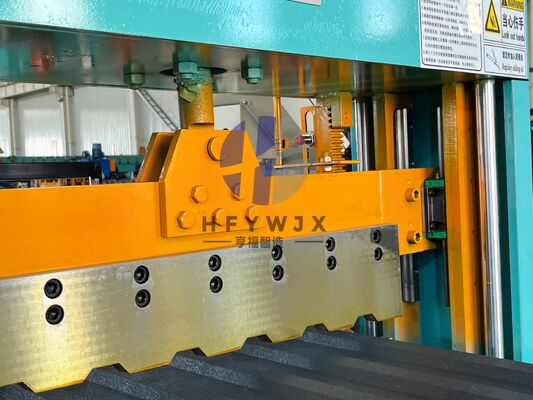

Double linear‑guide hydraulic cutting system with Cr12MoV alloy steel blades for clean burr‑free cuts and low maintenance
Split‑type PLC touch screen cooperates with rotary counter for precise length control (±1 mm error)
Wireless remote control available for convenient field operation
Complete factory trial‑run test before delivery with integrated structure suitable for container loading

Technical Specifications

Equipment Name	C16 Roof Panel Roll Forming Machine
Raw Material	PPGI color coated steel coil
Processable Thickness	0.3‑0.6mm
Input Coil Width	1200 / 1250 mm
Finished Effective Width	1030 mm
Production Speed	0‑30 m/min
Forming Stations	23 rows rollers
Cutting Mode	Double linear‑guide hydraulic cutting
Blade Material	Cr12MoV
Control System	Split PLC touch screen
Length Tolerance	±1 mm
Main Motor Power	7.5 kw
Power Supply	380V 50Hz three‑phase
Overall Dimension	12000×1800×1600 mm
Total Weight	Approximately 7.4 T

Product Gallery

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
