High Precision C16 Roll Forming Machine with 23 Rows Rollers for 0.3-0.6mm Trapezoidal Metal Panels and Double Linear-Guide Hydraulic Cutting

Detail Information

Product Description

Detail Information

Raw Material:

PPGI Color Coated Steel Coil

Processable Thickness:

0.3‑0.6mm

Input Coil Width:

1200 / 1250 mm

Finished Effective Width:

1030 mm

Production Speed:

0‑30 m/min

Forming Stations:

23 Rows Rollers

Cutting Mode:

Double Linear‑guide Hydraulic Cutting

Length Tolerance:

±1 mm

Main Motor Power:

7.5 kw

Power Supply:

380V 50Hz Three‑phase

Overall Dimension:

12000×1800×1600 mm

Total Weight:

Approximately 7.4 T

Highlight:

23 rows rollers Trapezoidal Roll Forming Machine

0.3-0.6mm processable thickness C16 Roll Forming Machine

Double linear-guide hydraulic cutting Metal Wall Cladding Forming Machine

Product Description

Advanced C16 Metal Wall Cladding Forming Machine High Precision Automatic Non-Scratch Trapezoidal Sheet Roller

Manufactured by Dongguang Hengfu Roll Forming Machinery Co., Ltd., this C16 roll forming machine is a fully-automatic forming equipment for YX12-103-1030 trapezoidal metal panels. The complete production workflow includes decoiling, material guiding, multi-station roll forming, fixed-length hydraulic cutting and finished panel output. It works with PPGI color-coated steel coils, and supports adjustable running speed from 0-30 m/min to satisfy diverse batch-production requirements for building-material manufacturers.

Applications of Finished C16 Trapezoidal Panels

The trapezoidal metal panels produced by this machine are widely-used multi-purpose building sheets for roofing and wall cladding.

Ideal roofing material for industrial workshops, warehouses, farm barns and large-span factory buildings, delivering reliable waterproofing and weather resistance
Suitable as exterior wall cladding for prefabricated houses, storage sheds and market buildings
Trapezoidal rib-reinforced profile provides high structural rigidity while remaining lightweight
Color-coated surface offers excellent anti-corrosion performance for long-term outdoor exposure
Quick modular on-site installation shortens construction cycles and reduces overall project costs

Machine Features and Advantages

Heavy-duty 350H welded steel wall-plate frame with 14 mm thick carbon-steel wall boards

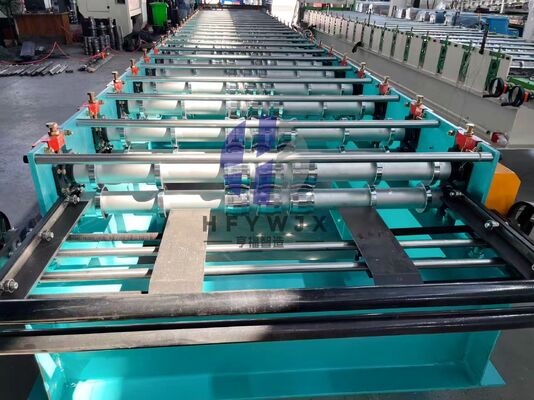

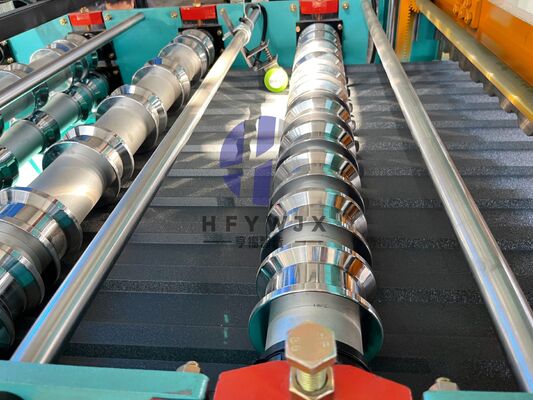

23 forming passes with rollers made of 45# steel, processed through rough-turning, fine-turning, outer-circle grinding and electroplating quenching treatment
Solid 70 mm main shafts and 1-inch chain-driven transmission for stable high-speed continuous operation without scratching protective coatings
Double linear-guide hydraulic cutting system with Cr12MoV alloy steel blades for clean, burr-free cutting edges and low maintenance
Split-type PLC touch screen with rotary counter for precise length control (±1 mm tolerance)
Wireless remote control for convenient field operation
Full-load trial-run inspection before shipment
Integrated layout for easy container loading and overseas delivery

Technical Specifications

Item	Specification
Equipment Name	C16 Roof & Wall Panel Roll Forming Machine
Raw Material	PPGI color coated steel coil
Processable Thickness	0.3-0.6mm
Input Coil Width	1200 / 1250 mm
Finished Effective Width	1030 mm
Production Speed	0-30 m/min
Forming Stations	23 rows rollers
Cutting Mode	Double linear-guide hydraulic cutting
Blade Material	Cr12MoV
Control System	Split PLC touch screen
Length Tolerance	±1 mm
Main Motor Power	7.5 kw
Power Supply	380V 50Hz three-phase
Overall Dimension	12000×1800×1600 mm
Total Weight	Approximately 7.4 T

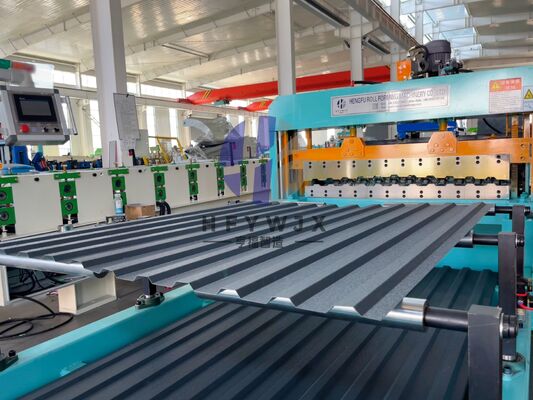

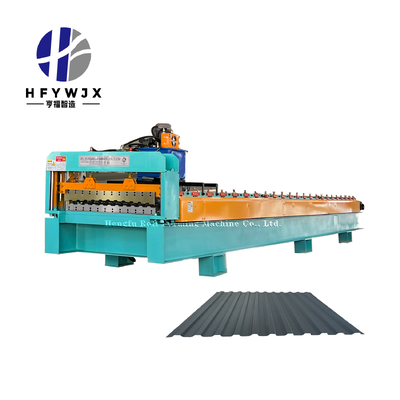

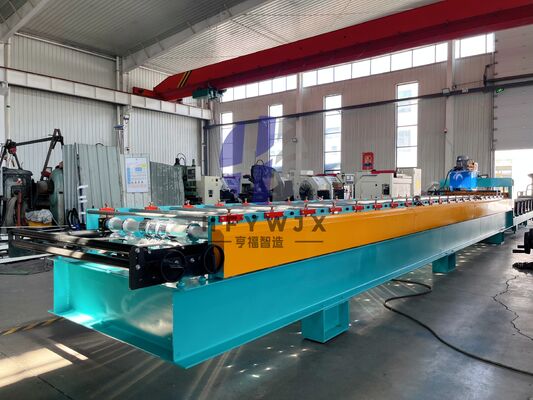

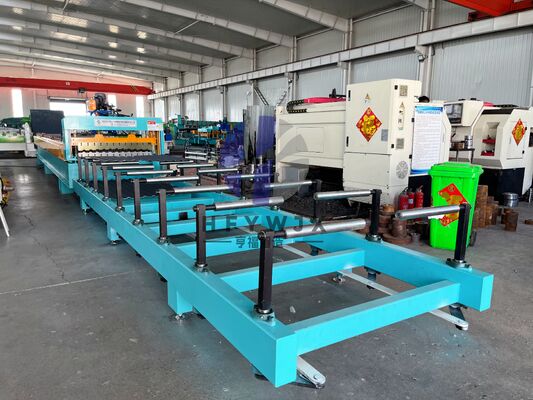

Product Gallery

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.

What's the delivery time?

Normally it takes about 45 days.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Can you finish the machine during the delivery time?

We will complete production on time according to the confirmed lead time.

Do you have after-sale support?

Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Any other service?

We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
