Manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd.

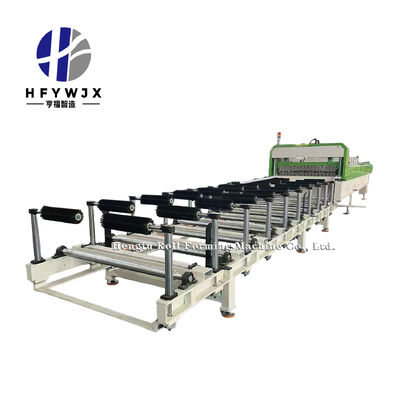

The YX15‑227‑1135 roll forming production line is a high‑performance automatic roof panel manufacturing solution designed for customers who value stability, efficiency, and long‑term return on investment. It integrates coil feeding, precision roll forming, fixed‑length cutting, and finished panel output into one smooth production process. With Dongguang Hengfu's professional manufacturing strength behind it, this machine is built to help roof panel producers improve output, stabilize quality, and reduce unnecessary operating costs.

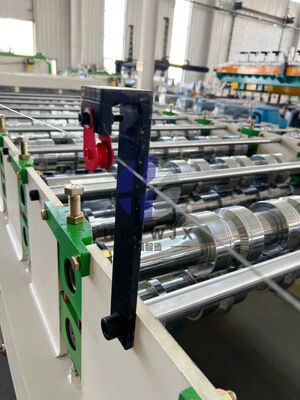

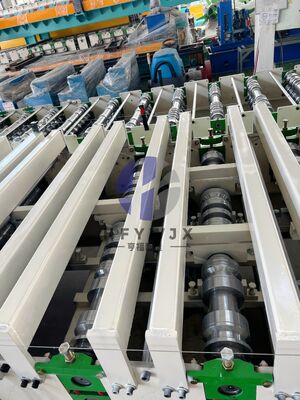

This machine is built with a strong welded steel frame and industrial‑grade structure, giving it excellent rigidity and vibration resistance. Even during long‑hour continuous production, the frame remains stable and less likely to deform, helping to maintain consistent forming accuracy. High‑quality forming rollers are precisely machined and surface‑treated to improve hardness and wear resistance, extending service life and supporting more stable panel quality over time.

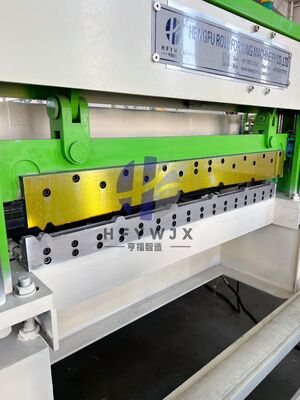

Equipped with an advanced servo drive system, the YX15‑227‑1135 delivers stable production speed and excellent control accuracy. The cutting unit runs smoothly and produces clean, neat edges with fewer burrs, reducing secondary trimming work and improving finished product quality. Better dimensional repeatability also makes installation easier and helps ensure more reliable roof system performance.
The machine adopts a mature PLC control system with an intuitive touch screen, allowing operators to set panel length, production quantity, and running speed quickly. It supports fully automatic continuous production, reduces manual adjustment, and lowers the skill requirement for operators. With clear status display and convenient parameter setting, daily operation becomes easier, safer, and more efficient.
Dongguang Hengfu focuses on building machines that can handle real industrial demands. The YX15‑227‑1135 is designed with a reliable mechanical structure, stable transmission system, and well‑organized electrical control, which together help reduce unexpected downtime and maintenance pressure. For production customers, greater stability means better schedule control, higher output, and stronger profitability.
This production line offers an excellent balance of speed, quality, durability, and ease of operation. It is not only capable of high output but also designed to remain stable and low‑maintenance in daily use. For many roof panel manufacturers, this kind of cost‑effective equipment can support faster capital recovery and more sustainable business growth.
The YX15‑227‑1135 is suitable for producing high‑quality color steel roof panels, which are widely used in industrial workshops, warehouses, commercial buildings, agricultural facilities, and various construction roofing projects. Its stable forming quality, neat profile shape, and reliable size accuracy help customers meet different market and project requirements.
| Item | Specification |
|---|---|
| Model | YX15‑227‑1135 |
| Effective Forming Width | 1135 mm |
| Incoming Coil Width | 1250 mm |
| Applicable Material | Color‑coated steel sheet |
| Processing Thickness | 0.3–0.5 mm |
| Material Yield Strength | ≤350 MPa |
| Forming Stations | 16 rows |
| Main Motor | 7.5 kW servo motor |
| Cutting Motor | 3.8 kW servo motor |
| Production Speed | 0–35 m/min |
| Length Tolerance | ±1 mm |
| Control System | PLC + touch screen |
| Power Supply | 380 V / 50 Hz, 3‑phase |
| Overall Dimension | 10000 × 1800 × 1600 mm |
| Total Weight | About 8.5 tons |
Dongguang Hengfu Roll Forming Machine Co., Ltd. is an experienced manufacturer of roll forming equipment, committed to delivering practical, reliable, and high‑performance machines. The company follows strict quality management from raw material inspection and precision machining to assembly and pre‑delivery testing. Every machine is carefully built and fully tested before shipment to ensure stable performance when it reaches the customer's factory.
Dongguang Hengfu also provides flexible solution support, including optional auxiliary equipment such as a heavy‑duty decoiler and brush‑type automatic stacker. This allows customers to build a more complete and efficient production line according to their actual needs.
When you choose Dongguang Hengfu, you are not just buying a machine—you are choosing a manufacturer that understands roll forming production and stands behind its equipment. With solid engineering, stable quality, and customer‑oriented service, Dongguang Hengfu helps customers achieve higher productivity and better business results.
Q: How should the machine be stored when not in use for an extended period?
A: Disconnect the power, clean the machine, apply anti‑rust oil, cover it with a dust cover, and store it in a dry environment.
Q: How many people are required to operate the machine?
A: It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Q: How long is the warranty period?
A: The entire machine comes with a 12‑month warranty, excluding wear parts.
Q: Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?
A: Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
Q: What checks need to be performed before starting the machine?
A: Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
