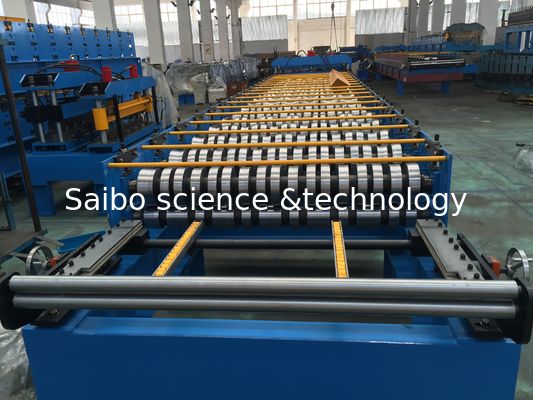

Galvanized Steel Steel Tile Roll Forming Machine 0.4-0.6mm Thickness

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX40-190-950
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Tile Roll Forming Machine Power: 5.5KW+5.5kw
Decoiler: Hydraulic Station: 19 Stations
Steel Thickness: 0.4-0.6mm Roller Material: 45# Forge Steel, Chrome Plated Surface With Chrome
Drive: By Chain Productivity: 2-4m/min
High Light:

Roofing Tile Forming Machine

,

Cold Roll Forming Machine


Product Description

1. Specification of the material



(1). Suitable Material: Colored Steel plate, Galvanized steel



(2). Width of the raw material: 1250mm

(3). Thickness: 0.4-0.6mm





2. Machine Detailed Parameters

1 Roll Forming Machine YX40-190-950



2 Machine structure



Wall panel structure



3 Total power

Motor power-5.5kw

Hydraulic power-5.5kw
4

Roller stations



About 19 stations
5

Productivity



2-4m/min
6

Drive system



By chain
7

Diameter of shaft



¢70mm solid shaft
8 Voltage



380v 50Hz 3phase
9

Color Of The Machine



Yellow and blue
10

Container need



40GP container
11

Deliver Time



70 days
12

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

Galvanized Steel Steel Tile Roll Forming Machine 0.4-0.6mm Thickness 0





4. The Chart of Process Flow

Galvanized Steel Steel Tile Roll Forming Machine 0.4-0.6mm Thickness 1

5. Specification of Components

(1) 5T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Main motor power: 5.5KW AC motor
  • Hydraulic power: 4kw



(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: wall panel



(4)Pressing System:

  • Pressing after forming: Press the sheet after roll forming to required length
  • Hydraulic drive uses the same hydraulic unit with cutting
  • Material of mold:Cr12, 58-62 HRC hardness
  • Pressing by hydraulic, 5.5KW



(5) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(6) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

Galvanized Steel Steel Tile Roll Forming Machine 0.4-0.6mm Thickness 2
