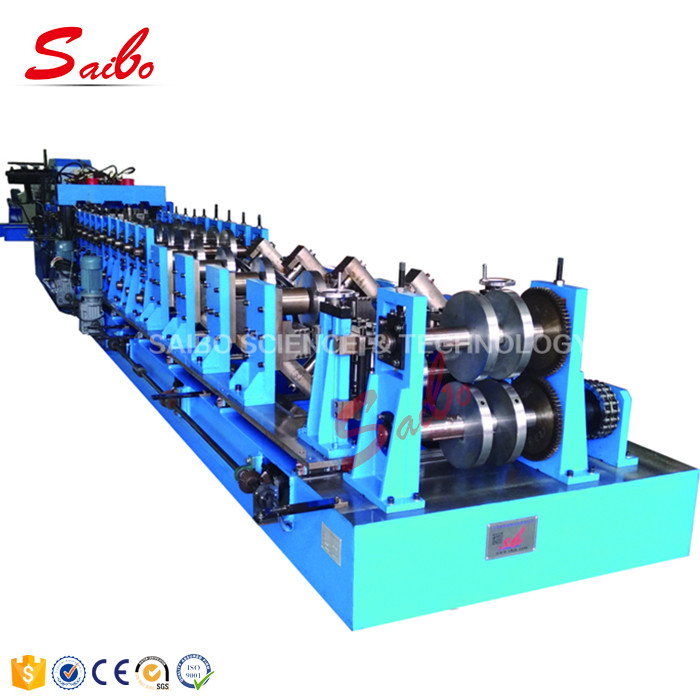

Hydraulic Decoiler C Z Purlin Roll Forming Machine For Steel Constructions 100-400 Size

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: 100-400
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Supply Ability: 300 sets per year
Detail Information
Product Name: C/Z Purlin Roll Forming Machine Power: 15KW+5.5KW+1.5kwX3
Size Of Purlin: 100-400 Steel Thickness: 1.5-3.0mm
Decoiler: Manual Or Hydraulic Station: 16 Stations
Roller Material: Cr12 With Chrome Treatment Drive: Chain
Container Need: 1X40GP Or 1X40GP+1X20GP
High Light:

Rolling Shutter Strip Making Machine


Corrugated Iron Sheet Making Machine

Product Description

main speficication:

  • Steel thickness (t): from 1,5 mm to (at least) 3,0 mm;
  • Profile height (h): from 100 mm to (at least) 400 mm;
  • Flange width (b): from 40 mm to (at least) 80 mm;
  • Flange height (c): from 12 mm to (at least) 20 mm;
  • Maximum hole diameter deviation: +2 mm/-0 mm



2. The Chart of Process Flow

Hydraulic Decoiler C Z Purlin Roll Forming Machine For Steel Constructions 100-400 Size 0



No   Technical Specification & Remark

5T hydraulic decoiler


  • Steel coil width: 550 mm;
  • Internal diameter of coil: variable, from 470 mm to 520 mm
  • Maximum coil weight: 5000 Kg;
  • Main motor power: 5.5KW
  • Hydraulic power: 4kw

Leveling part


  • Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
  • Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
  • Flattener roller: material is SAE 1045, hardening and tempering

Punching and pre-cutting system


  • Base on customer provide punching drawing, this machine need adopt two units hydraulic punching system before roll forming.
  • Cutting will be flat cutting so no need to change the cutting blade when make different sizes.
  • Hydraulic power: 5.5kw


Main Roll Forming Machine



  • Thickness range: 1.5-3.0mm
  • Main motor power:15kw
  • Adjust flange and width: by 1.5kwX3
  • Roll station: 16 stations
  • Shaft diameter: ¢76mm material: SAE1045 with quenching and tempering
  • Chain driving



Correction adjust system


  • Correction of the product sheet to be straight.

Hydraulic System


  • Hydraulic power: 5.5kw
  • Working pressure: 20Mpa adjustable
  • Solenoid valve: 3 groups
  • Hydraulic oil: 46# hydraulic oil

Computer Control Cabinet



  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC brand: Panasonic

Out table


  • Support the product come out from the machine
  • out table length: 2m
  • Quantity: 2 units


4. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
