Thin Type Ceiling Roll Forming Machine Double Line Chrome Surface 0 - 15m / Min Productivity

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Double Low Roll Forming Machine
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Stud Panel Roll Forming Machine Power: 5.5KW+4kw
Size Of Purlin: Double Low Roll Forming Machine Steel Thickness: 1.5mm
Decoiler: Manual Or Hydraulic Station: 10 Stations
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Size Of Line: About 4mx2.1x1.6m
Drive: By Chain Container Need: 1X20GP
High Light:

Pipe Roll Forming Machine

,

Stud Roll Forming Machine


Product Description

Drive by Chain Stud Roll Forming Machine Normal Speed Double Line



1. Specification of the material

1 Suitable Material Colored Steel plate, Galvanized steel,G550
2 Width of the raw material According to the final profile
3 Thickness 1.5mm



2. Machine Detailed Parameters

1 Roll Forming



Double row roll forming machine



2 Machine structure



Wire-electrode cutting structure
3 Total power

Motor power-5.5kw

Hydraulic power-4kw
4 Roller stations

About 10 stations



5

Productivity



0-15m/min
6

Drive system



By chain
7

Diameter of shaft



¢56mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Container need



20GP container
10

Color Of The Machine



Yellow and blue

11

Deliver Time



70 days
12

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing



Profile1:

Thin Type Ceiling Roll Forming Machine Double Line Chrome Surface 0 - 15m / Min Productivity



Profile2:

Thin Type Ceiling Roll Forming Machine Double Line Chrome Surface 0 - 15m / Min Productivity



4. The Chart of Process Flow

Thin Type Ceiling Roll Forming Machine Double Line Chrome Surface 0 - 15m / Min Productivity





5. Specification of Components

(1) 3T Manual Un-coiler

  • Adopt automatic hydraulic system for expand
  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual

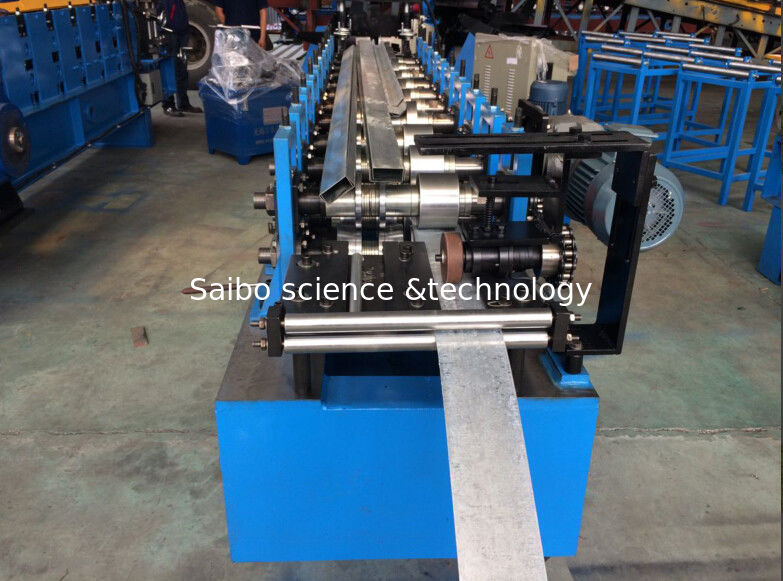

(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢56mm material: SAE1045 with quenching and tempering



(3) Machine Structure:

  • Main frame by 350H beam welding
  • Machine structure: Wire-electrode cutting

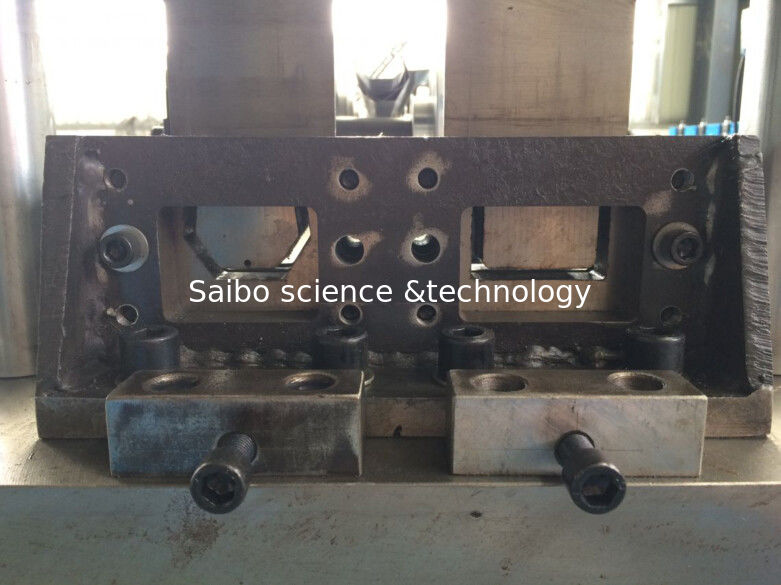

(4) Hydraulic Cutting System

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

FAQ

1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .



2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.



3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.



5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.



6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.
