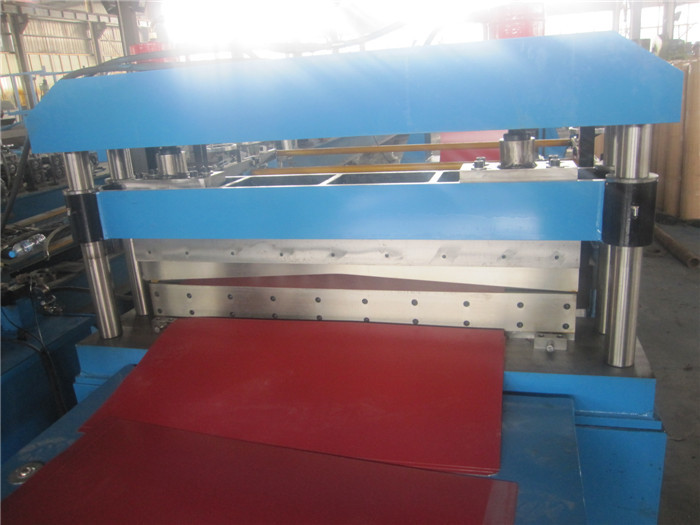

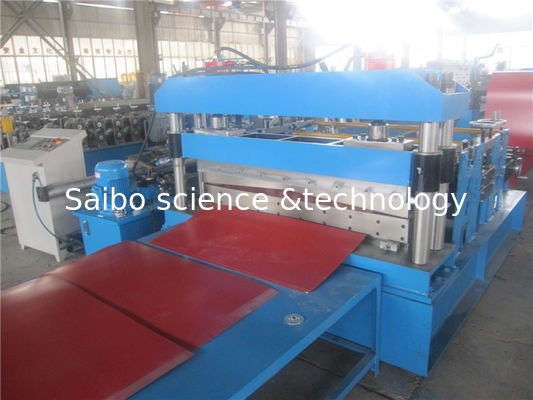

Color Steel Cut To Length Machine 1500mm Coil Width For Wall Panel

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX1500
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 50 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400 sets per year
Detail Information
Product Name: Cut To Length Machine Steel Thickness: 1.5mm
Decoiler: Manual Power: 7.5KW+5.5KW
Roller Material: #45 Forged Steel With Chrome Station: 2 Stations
Drive: Single Chain Shaft: ¢85mm
Highlight:

Wire Cut To Length Machine

,

Simple Slitting Machine


Product Description

Cut To Length Machine



Raw Material:

All of our machine profile is customized, above raw material is only for your reference.

1. Coil width: 1500mm

2. Thickness: 1.5mm



Layout:

Color Steel Cut To Length Machine 1500mm Coil Width For Wall Panel 0

Manual de-coiler—Feeding—Cutting—Out table



Specifications:

Item NO



Description



Offered specification

1 Roll Forming Machine

Cut to Length Machine



2 Coil width 1500mm
3 Rolling Speed 12-15m/min(not include cutting time)
4 Rolling Thickness 1.5mm GI, color steel
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 5T manual de-coiler
7 Roller Stations 2 stations for feeding
8 Roller Material Rubber roller
9 Shaft Material and DIA ¢85mm, material is 45# forge steel
10 Post cutting Hydraulic cutting slitting
11 Maim Motor Power 7.5kw
12 Hydraulic Station Power 5.5kw
13 Hydraulic Pressure 12-16Mpa adjustable
14 Material Of Cutting Cr12Mov quenching 58-62℃
15 Structure Of The Stations Wall panel
16 Tolerance 3m+-1.5mm
17 Electric Source

380V, 60HZ,3 phase

According to customer’s require



18 Way Of Drive By chain
19 Color Of The Machine Yellow and blue
20 Size of the machine L*W*H about 2.0m*1.7m*1.2m
21 Container Need 1x20 feet


Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation
