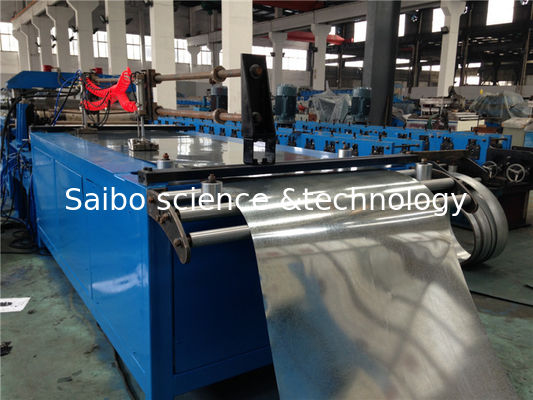

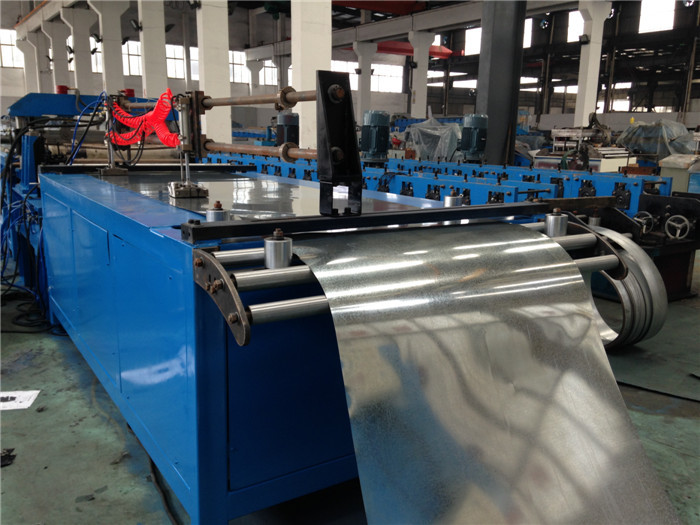

High Speed Cut To Length Machine 3KW Servo Motor 0.15-0.5MM Thickness

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX1000
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per year
Detail Information
Product Name: Cut To Length Machine Steel Thickness: 0.15-0.5mm
Decoiler: Manual Power: 3KW+5.5KW
Roller Material: #45 Forged Steel With Chrome Drive: Single Chain
Shaft: ¢85mm Leveling: Two Rollers Over Three
High Light:

Metal Sheet Cutting Machine

,

Simple Slitting Machine


Product Description

Cut To Length Machine



Raw Material:

All of our machine profile is customized, above raw material is only for your reference.

1. Coil width: 1000mm

2. Thickness: 0.15-0.5mm



Layout:

High Speed Cut To Length Machine 3KW Servo Motor 0.15-0.5MM Thickness 0

Hydraulic de-coiler—Feeding—Transportation table—Cutting—Auto stacker



Specifications:

Item NO



Description



Offered specification

1 Roll Forming Machine

Cut to Length Machine



2 Coil width 1000mm
3 Rolling Speed 20m/min
4 Rolling Thickness 0.15-0.5mm GI, color steel
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 6T hydraulic de-coiler
7 Leveling Two rollers over three
8 Roller Stations 1 station for feeding
9 Roller Material Rubber roller
10 Slitting 1 station, three sets blades of cutters
11 Shaft Material and DIA ¢85mm, material is 45# forge steel
12 Post cutting Hydraulic cutting
13 Transportation table 3kw, 4 meters
14 Maim Motor Power 3kw servo motor
15 Hydraulic Station Power 5.5kw
16 Hydraulic Pressure 12-16Mpa adjustable
17 Material Of Cutting Cr12Mov quenching 58-62℃
18 Structure Of The Stations Wall panel
19 Tolerance 3m+-1.5mm
20 Electric Source

380V, 60HZ,3 phase

According to customer’s require



21 Way Of Drive By chain
22 Color Of The Machine Yellow and blue
23 Size of the machine L*W*H about 11.8m*1.7m*1.2m
24 Container Need 1x40 feet




Main Features

1. Simple structure in linear type ,easy in installation and maintenance.

2. Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

3. Running in a high automatization and intellectualization, no pollution

4. No need foundation, easy operation
