| Brand Name: | HENGFU |
| MOQ: | 1 Piece |
| Payment Terms: | 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment |

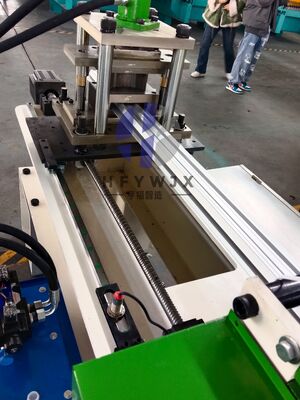

Dongguang Hengfu Roll Forming Machine Co., Ltd. brings you a professionally designed, heavy‑duty Fence Roll Forming Machine built for consistent, high‑quality fence panel production. Combining years of roll forming expertise, precision engineering, and robust construction, this machine delivers reliable performance for continuous industrial use.
This machine achieves an efficient rolling speed of up to 25 meters per minute, supporting high‑volume output without compromising precision. Powered by a 12 kW system and compatible with 380V 50Hz power supply, it balances strong driving force and energy efficiency. With a compact footprint of 9m × 1m × 1.3m and a solid 3100kg structure, it offers excellent rigidity, stability, and space efficiency for most factory layouts.
The machine supports both automatic and manual debugging modes, adapting flexibly to small‑batch customization and large‑scale mass production. Backed by reliable quality and professional service, this fence roll forming machine is built to last and easy to maintain.
| Parameter | Specifications |
|---|---|
| Rolling Speed | ≤ 25 m/min (excluding downtime) |
| Installed Power | 12 kW |
| Power Supply | 380 V, 50 Hz ± 0.4 Hz |
| Inlet Width | 156.2 mm / 125 mm |
| Material Thickness Range | 0.35 mm - 0.5 mm |
| Overall Size (L×W×H) | 9 × 1 × 1.3 m (excl. receiving table) |
| Equipment Weight | ~3100 kg |
| Required Operators | 1-2 persons |
| Uncoiler Type | Cantilever (manual tensioning) |
| Operation Modes | Debugging / Automatic |
