Hengfu Fence Panel Roll Forming Machine With 25 M/Min Rolling Speed 14 Groups Precision Rollers

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Max. Rolling Speed:

≤ 25 M/min

Installed Power:

12 KW

Voltage/Frequency:

380V / 50Hz ±0.4Hz

Inlet Width:

156.2mm / 125mm

Material Thickness:

0.35mm – 0.5mm

Overall Dimensions:

9m × 1m × 1.3m

Net Weight:

3100 Kg

Required Operators:

1–2 Persons

Uncoiler:

Cantilever, Manual Tension

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

25 m/min plate forming machine

25 m/min panel roll forming machine

380v plate forming machine

Product Description

High Performance Fence Post Manufacturing Line Automatic Steel Profile Forming Machine

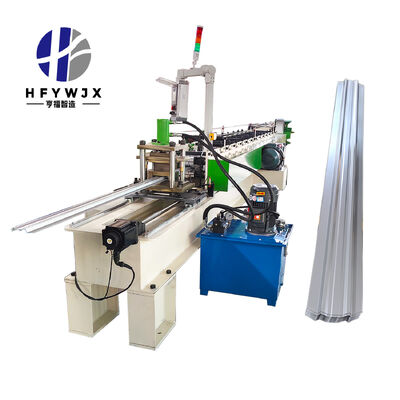

Dongguang Hengfu Roll Forming Machine Co., Ltd. presents a fully automated fence panel roll forming machine, engineered to redefine efficiency and precision in metal fence production. This integrated production line streamlines every step from coil uncoiling and servo-guided feeding to roll forming, punching, and hydraulic cutting—eliminating manual intervention and ensuring consistent quality across every unit.

Built with decades of roll forming expertise, the machine stands out for its robust performance, long service life, and adaptability to diverse fence styles, making it a top choice for fence manufacturers, construction firms, and infrastructure projects globally.

Key Features & Applications

Processes galvanized steel coils and color-coated steel sheets for outdoor fencing
Produces fence panels with exceptional structural integrity
Supports customizable panel dimensions and hole patterns
Ideal for residential boundary fencing, industrial security enclosures, highway isolation barriers, and garden decorative fences
Cold roll forming process preserves material's corrosion resistance and surface finish
Withstands harsh weather conditions including heavy rain, strong winds, and extreme temperatures

Robust Construction

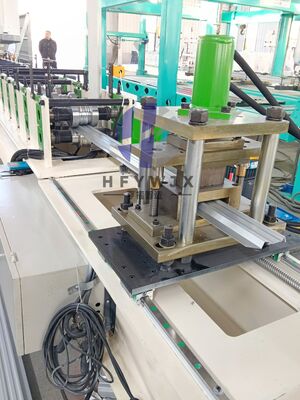

The machine features a heavy-duty welded steel frame reinforced with thickened vertical plates, providing unmatched rigidity to minimize vibration during high-speed operation. The forming system uses 14 groups of precision-machined rollers crafted from CR12MOV alloy steel, which undergo hard chrome plating to enhance wear resistance and prevent material scratches.

The Φ56mm main spindle, forged from tempered 45# steel, ensures stable power transmission, while the chain-driven mechanism guarantees smooth, low-noise operation even during 24/7 continuous production.

Intelligent Control System

Controlled by an industrial PLC system paired with a 7-inch touchscreen, allowing operators to set parameters (like panel length, punching positions, and forming speed) with one click and monitor production in real time. The hydraulic flying shear system delivers clean, burr-free cuts with a length error of less than 2mm.

With a maximum forming speed of 25m/min, it boosts output by 30% compared to semi-automatic equipment, directly cutting labor costs for manufacturers.

Quality Assurance & Support

Backed by Dongguang Hengfu Roll Forming Machine Co., Ltd.'s strict quality control and comprehensive after-sales support. The machine undergoes rigorous factory testing before shipment to ensure zero defects. The company offers a 1-year warranty covering all core components, plus on-site installation guidance, free operator training, and lifelong technical consultation.

Technical Specifications

Rolling Speed	≤ 25 m/min (excluding downtime)
Installed Power	12 kW
Power Supply	380 V, 50 Hz ± 0.4 Hz
Inlet Width	156.2 mm / 125 mm
Material Thickness Range	0.35 mm - 0.5 mm
Overall Size (L×W×H)	9 × 1 × 1.3 m (excl. receiving table)
Equipment Weight	~3100 kg
Required Operators	1-2 persons
Uncoiler Type	Cantilever (manual tensioning)
Operation Modes	Debugging / Automatic

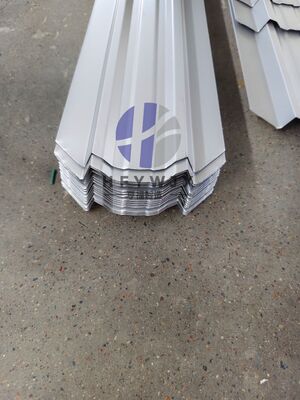

Product Images

Frequently Asked Questions

Is the electrical system susceptible to moisture damage?

The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.

Will the machine scratch the surface coating of the color-coated steel sheets during production?

With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.

Can the machine produce stainless steel sheets? What are the requirements for the equipment?

Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.

Can you provide semi-automatic or fully automatic receiving tables?

Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.

What checks need to be performed before starting the machine?

Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
