| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/IS09001/SGS |
| Model Number: | 0.2-2.5X1600mm |
| Minimum Order Quantity: | 1 set |
| Price: | negotiable |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 100 working days after received deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 380 sets per year |
| Steel Thickness: | 0.2-2.5mm | Coil Material: | CRS And GI |
|---|---|---|---|
| Product Name: | Steel Coil Slitting Machine | Steel Width: | 500-1600（Max） |
| Knife Pivot Diameter: | φ200mm | Knife Pivot Material: | 40Cr |
| Blade Specification: | φ200×φ340×20mm | Blade Material: | 6CrW2Si |
| Power: | 380V/50Hz/3Ph | Line Speed: | 0-120m/min |
| High Light: | Coil Cutting Machine,Coil Slitting Machine |
||

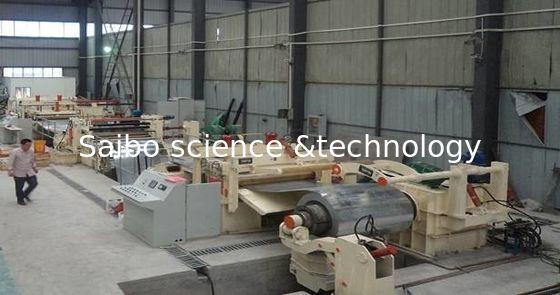

Steel Coil Slitting Machine
I. Main technical parameters
|
1.
|
Material | CRS and GI |
|
2.
|
Tensile strength | δb≤450Mpa,δS≤260Mpa |
|
3.
|
Steel thickness | 0.3-2.5mm |
|
4.
|
Steel width | 500-1600(Max) |
|
5.
|
Steel coil I.D | φ480-520 mm |
|
6.
|
Steel coil O.D | φ1600mm |
|
7.
|
Steel coil weight | 20T |
|
8.
|
Knife pivot diameter | φ200mm |
|
9.
|
Knife pivot material | 40Cr |
|
10.
|
Blade specification | φ200×φ340×20mm |
|
11.
|
Blade Material | 6CrW2Si |
|
12.
|
Max slit quantity | 50 pcs(0.3mm) |
|
13.
|
Slitting width precision | ≤±0.05mm/2M |
|
14.
|
Power | 380V/50Hz/3Ph |
|
15.
|
Line speed | 0-120m/min |
|
16.
|
Production | About 100T/day |
|
17.
|
Capacity | About 190 Kw |
|
18.
|
Whole line Dimension | 25m(L)X8m(W) |
|
19.
|
Operator needed | 1.mechanical engineer ,2.common workers |
|
20.
|
Line direction | From right to left(Face to machine) |
II. Overflow
From right to left are: Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter→Looper 1→Side guide device→ Slitter→Scrap winder→Looper 2→Tension stand →Recoielr→Exit coil car
III. Composed device
|
NO
|
Name | Quantity |
|
1
|
Entry coil car | 1 unit |
|
2
|
Hydraulic Decoiler | 1 pair |
|
3
|
Press and pinch device | 1 unit |
|
4
|
Hydraulic cutter | 1 unit |
|
5
|
Looper 1 | 1 unit |
|
6
|
Side guide device | 1 unit |
|
7
|
Slitter | 1 unit |
|
8
|
Scrap winder | 1 unit |
|
9
|
Looper 2 | 1 unit |
|
10
|
Tension stand | 1 unit |
|
11
|
Recoiler | 1 unit |
|
12
|
Exit coil car | 1 unit |
|
13
|
Hydraulic system | 1 set |
|
14
|
Electrical system | 1 set |
