Hengfu 1.3m Stainless Steel Leveling Machine With 15–25m/Min Working Speed

Brand Name: HENGFU
MOQ: 1 Piece
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Machine Model:
1.3m Stainless Steel Leveling Machine
Applicable Material:
Stainless Steel
Material Thickness:
1–2mm (Standard: 2mm)
Feeding Width:
1300mm
Effective Forming Width:
1250mm
Forming Passes:
7 Upper, 6 Lower
Main Shaft:
Φ90mm Solid Shaft
Motor Power:
7.5KW
Working Speed:
15–25m/min
Packaging Details:
Plastic Film & Steel Wire Fixed
Highlight:

stainless steel leveling machine

,

1.3m plate leveling machine

,

1.3m steel leveling machine

Product Description
High Speed 1.3M Stainless Steel Sheet Leveling Machine
Dongguang Hengfu Roll Forming Machine Co., Ltd. presents the 1.3m Stainless Steel Leveling Machine, a professional and high-efficiency solution built for precision sheet leveling and cutting. This complete production line combines uncoiling, feeding, roll forming, fixed-length cutting and finished sheet output in one stable workflow.
Key Features
  • Heavy-duty frame structure with rigid square tube main frame for maximum stability
  • Thickened wall panels and 90mm solid main shafts to reduce vibration
  • 7 upper and 6 lower roller passes with high-strength chrome-plated rollers
  • Intelligent PLC touch screen control system with high-precision length counter
  • Electric shearing system with high-grade Cr12 blades for burr-free cutting
  • Remote control included for safer and more flexible operation
Technical Specifications
Machine Model 1.3m Stainless Steel Leveling Machine
Applicable Material Stainless Steel
Material Thickness 1-2mm (Standard: 2mm)
Feeding Width 1300mm
Effective Forming Width 1250mm
Forming Passes 7 upper, 6 lower
Main Shaft Φ90mm solid shaft
Roller Material 45Cr, quenched, tempered, chrome-plated
Motor Power 7.5KW
Working Speed 15-25m/min
Cutting System Electric shearing, burr-free, remote control
Blade Material Cr12
Control System PLC + touch screen
Length Accuracy ±1mm
Voltage Three-phase 380V 50Hz
Product Images

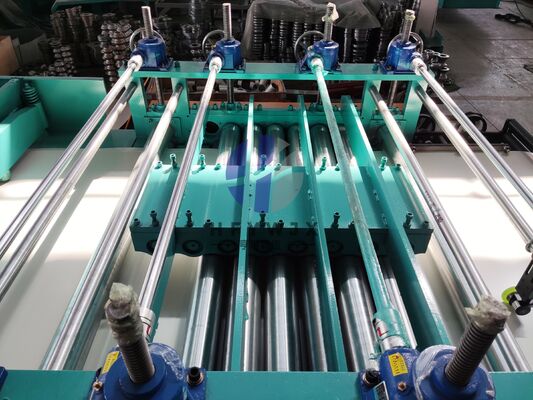

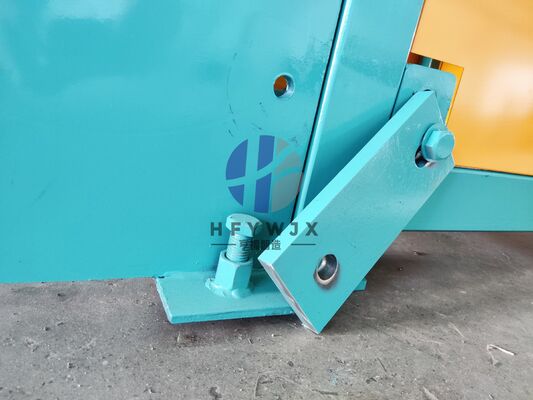

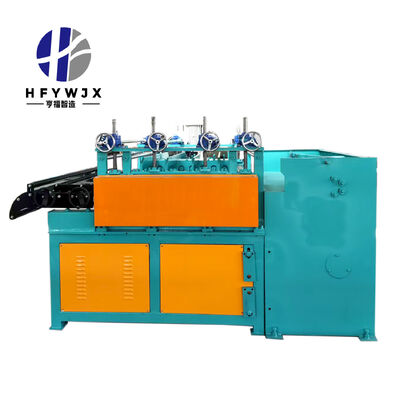

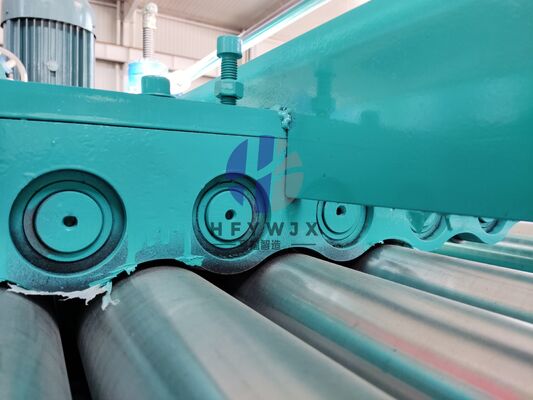

Hengfu 1.3m Stainless Steel Leveling Machine With 15–25m/Min Working Speed 0 Hengfu 1.3m Stainless Steel Leveling Machine With 15–25m/Min Working Speed 1 Hengfu 1.3m Stainless Steel Leveling Machine With 15–25m/Min Working Speed 2
Frequently Asked Questions
Is there a leveling device at the material inlet?
It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
Is the electrical system susceptible to moisture damage?
The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
Will the machine scratch the surface coating of the color-coated steel sheets during production?
With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.
Can the machine produce stainless steel sheets? What are the requirements for the equipment?
Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
Hengfu 1.3m Stainless Steel Leveling Machine With 15–25m/Min Working Speed 3
