Large Solar Roll Forming Machine Wire - electrode cutting system 0.9 - 2.0mm

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Omega size
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: High Speed Omega Roll Forming Machine Shaft Diameter: 65mm Solid Shaft
Steel Thickness: 0.9-2.0mm, Galvanized Steel Station: 14 Stations(according The Final Design)
Roller Material: Gcr15,chrome Plated Surface With Chrome Speed: 40-50m/min
Chang Size: Flange And Width Is Adjust By Hand Wheel Main Motor: 18.5kw
Hydraulic Motor: 11kw

Product Description

High Speed Roll Forming Machine Wire-electrode cutting system 0.9-2.0mm



1. Main speficication:



1



Suitable Material Galvanized steel

2



Width of the raw material Base on profile
3 Thickness 0.9-2.0 mm

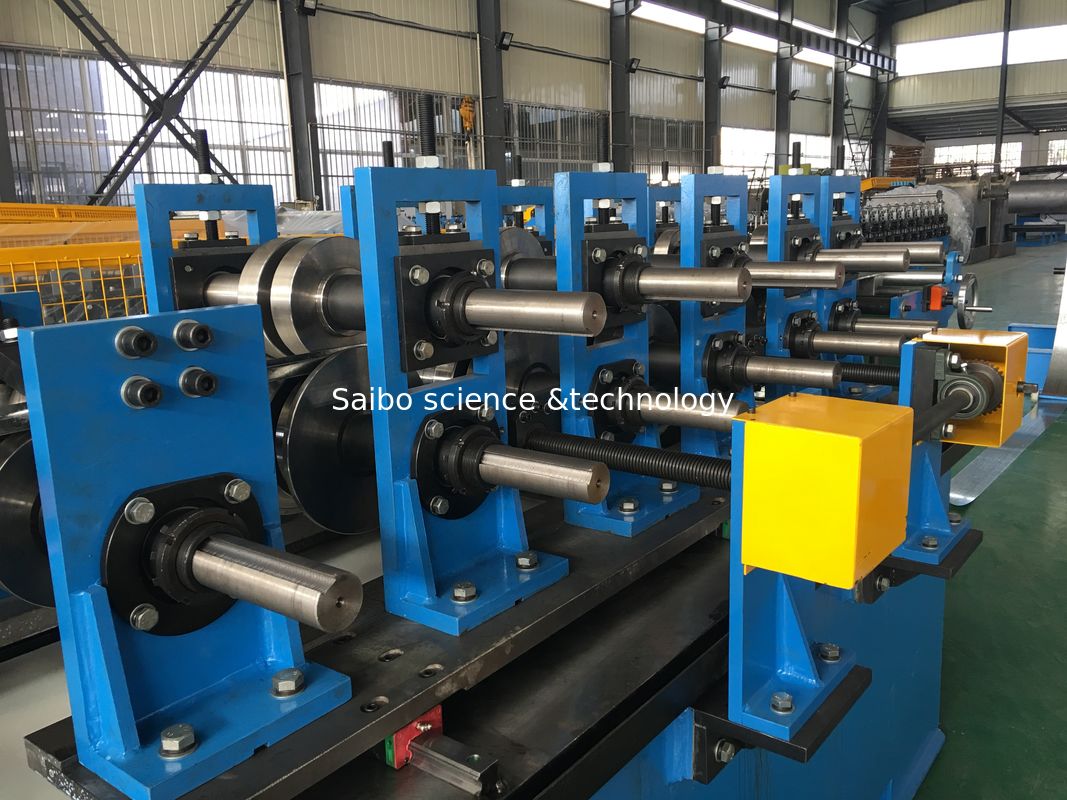

Large Solar Roll Forming Machine Wire - electrode cutting system 0.9 - 2.0mm



2.  The Chart of Process Flow

Hydraulic decoiler— Feeding roll formingrectifytrack cuttingstacker



Specification

No   Technical Specification & Remark
1

5T hydraulic decoiler



  • Steel coil width: 550mm;
  • Internal diameter of coil: variable, from 380 mm to 520 mm
  • Maximum coil weight: 5000 Kg;
  • Main motor power: 5.5KW
  • Hydraulic power: 4kw
2

Main Roll Forming Machine



  • Thickness range: 0.9-2.0mm
  • Main motor power:18.5kw
  • Roller material: Gcr15 surface with chrome, quenching 58-62
  • Roll station: 14 stations
  • Shaft diameter: ¢65mm
  • Chain driving system, 1.5 inch single chain

4

Track cutting system







  • Adopt the hydraulic track cutting
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade: Cr12, 58-62 HRC hardness
  • Cutting power byhydraulic,11KW
  • Servo power: 3KW Yaskawa
  • Working pressure: maximal 25Mpa
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



5















Correction adjust system











  • Correction of the product sheet to be straight.
6









Hydraulic System











  • Hydraulic power: 11kw
  • Working pressure: 20Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil
  • Quantity :1
7

Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
8











Auto stacker













  • Lemgth: 6m







4. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one

year.



5. Installation and training

a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
