1.6 - 1.2mm Omega Purlin Roll Forming Machine Adjust by hand wheel

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Omega
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: High Speed Omega Roll Forming Machine Shaft Diameter: 65mm Solid Shaft
Steel Thickness: 0.85,Galvanized Steel(550MPa) Station: About 14 Stations
Roller Material: Gcr15 Mian Power: 18.5kw
Hydraulic Power: 11kw

Product Description

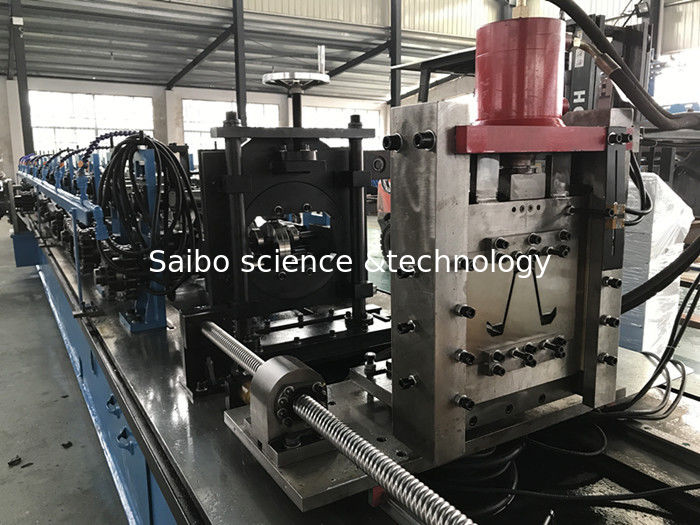

 1.6 - 1.2mm Omega Purlin Roll Forming Machine Adjust by hand wheel


1. Main speficication:


1


Suitable Material Galvanized (345MPa)/Galvalume (550MPa)

2


Width of the raw material Base on profile
3 Thickness 0.85mm



1.6 - 1.2mm Omega Purlin Roll Forming Machine Adjust by hand wheel

2.  The Chart of Process Flow

Un-coiler( double head)—Feeding—Roll Forming—Rectify—Track Cutting—Auto stacker



3.Machine Detailed Parameters

1 Machine structure Wire-electrode cutting structure
2 Total power

Main power: 18.5kw

Hydraulic power: 11kw

3 Roller stations About 14 stations + one station for rectify (according the final design)
4 Productivity About 50m/mi
5 Drive system By chain
6 Diameter of shaft ¢65mm solid shaft
7 Voltage 380V 50Hz 3phases



4. Specification of Components

No   Technical Specification & Remark
1

5T hydraulic decoiler(double head


  • Steel coil width: 550 mmx2;
  • Internal diameter of coil: 380 mm- 520 mm
  • Maximal out diameter:1200mm
  • Maximum coil weight: 5000 Kgx2;
2

Main Roll Forming Machine


  • Roller material:ASTM52100 chrome plated surface with chrome, HRC58-62 degree
  • Shaft diameter: ¢65mm material: SAE1045 with tempering
  • Main motor: 18.5KW
4

Machine structure:


  • Main frame by steel plate welding
  • By chain
5

Hydraulic cutting system


  • Adopt the hydraulic track cutting
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
6

Hydraulic System




  • Hydraulic power: 11kw with storage tank and cooling system
  • Working pressure: maximal 25Mpa
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil
  • Quantity :1
7

Computer Control Cabinet




  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • Control panel: Button-type switch and touch screen
  • Unit of length: millimeter
8

Stacker




  • Length in 6m





5. FAQ

1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .



2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.



3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.



5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.



6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.
