High Speed Angle Roll Forming Machine Wire - electrode cutting By chain

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Angle
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: High Speed Angle Roll Forming Machine Shaft Diameter: 85mm Solid Shaft
Steel Thickness: 2.0-3.0,Galvanized Steel(550MPa) Station: About 7 Stations + One Station For Rectify
Roller Material: Gcr15 Mian Power: 15kw
Hydraulic Power: 7.5kw Speed: About 30-40m/min

Product Description


1. Main speficication:


1


Suitable Material Galvanized (345MPa)/Galvalume (550MPa)

2


Width of the raw material Base on profile
3 Thickness 2.0-3.0mm



High Speed Angle Roll Forming Machine Wire - electrode cutting By chain

2.  The Chart of Process Flow

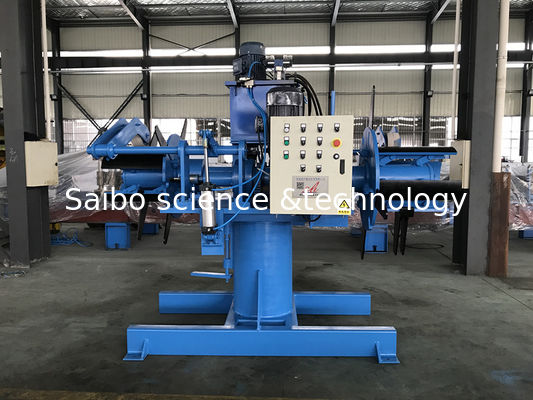

Un-coiler( double head)—Feeding—Roll Forming—Rectify—Track Cutting—Auto stacker



3. Specification of Components

No   Technical Specification & Remark
1

5T hydraulic decoiler(double head


  • Steel coil width: 550 mmx2;
  • Internal diameter of coil: 380 mm- 520 mm
  • Maximal out diameter:1200mm
  • Maximum coil weight: 5000 Kgx2;
2

Main Roll Forming Machine


  • Roller material:ASTM52100 chrome plated surface with chrome, HRC58-62 degree
  • Shaft diameter: ¢85mm material: SAE1045 with tempering
  • To avoid accidents, the driven parts will be covered with the protective cover
  • Cooling system is consider
  • Main motor: 15KW
4

Machine structure:


  • Main frame by steel plate welding
  • By chain
5

Hydraulic cutting system


  • Adopt the hydraulic track cutting
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,7.5KW
  • Servo power: 4KW Yaskawa
  • Working pressure: maximal 25Mpa
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product
6

Stacker




  • Length in 6m





4. FAQ

1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .



2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.



3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.



5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.



6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.




Contact Details
Ms.Nancy

WhatsApp : 8613921223200
