3 Rows Guide Rail Solar Roll Forming Machine for solar stands continues punching

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX20.6-41.3/YX41.3-41.3/YX72-41.3
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Supply Ability: 300 sets per year
Detail Information
Product Name: Guide Rail Roll Forming Machine Shaft Diameter: 45# Forge Steel ¢76mm
Steel Thickness: 1.5-3.0mm Structure: Wall Panel Structure
Mian Power: 30KW Roll Station: 20 Stations
Speed: 15m/min Punching Machine: JH21-63
High Light:

roll forming equipment

,

roll forming machine


Product Description

  3 Rows Guide Rail Roll Forming Machine for solar stands continues punching




1. Main speficication:


1


Suitable Material GI

2


Width of the raw material Base on profile
3 Thickness 1.5-3.0mm

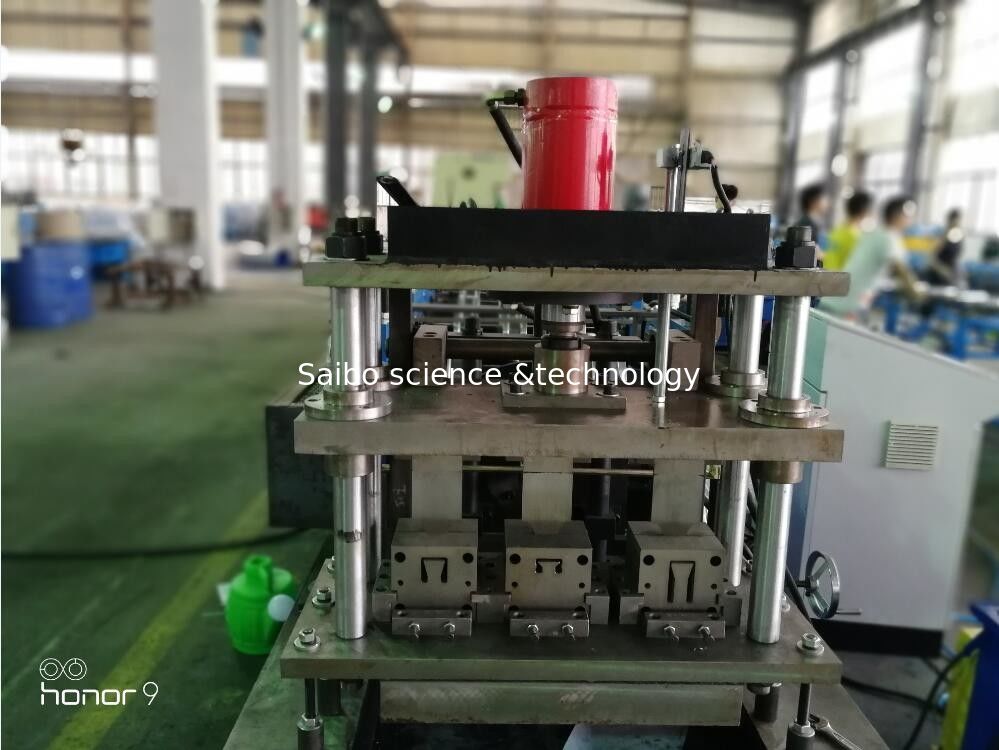

3 Rows Guide Rail Solar Roll Forming Machine for solar stands continues punching 03 Rows Guide Rail Solar Roll Forming Machine for solar stands continues punching 1

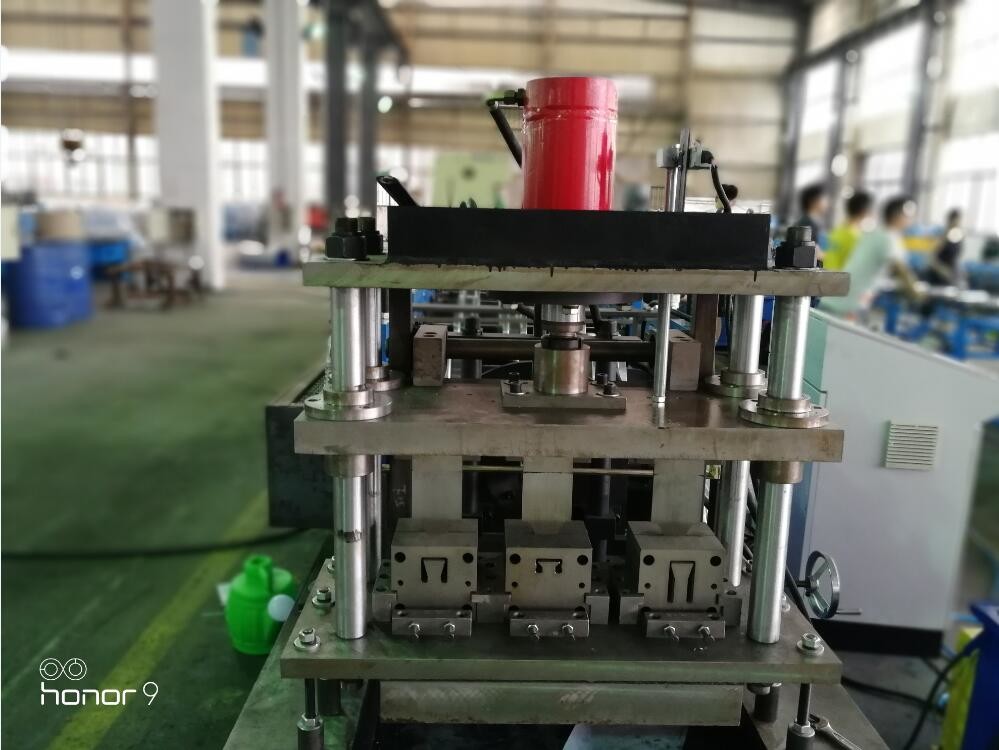

3 Rows Guide Rail Solar Roll Forming Machine for solar stands continues punching 2



2.  The Chart of Process Flow

Uncoiler— Flatten—Servo Feeding& punching—Roll Forming—Rectify—Cutting—Out table



3 Rows Guide Rail Solar Roll Forming Machine for solar stands continues punching 3





3. Specification of Components

No   Technical Specification & Remark
1

3T manual un-coiler





  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
2

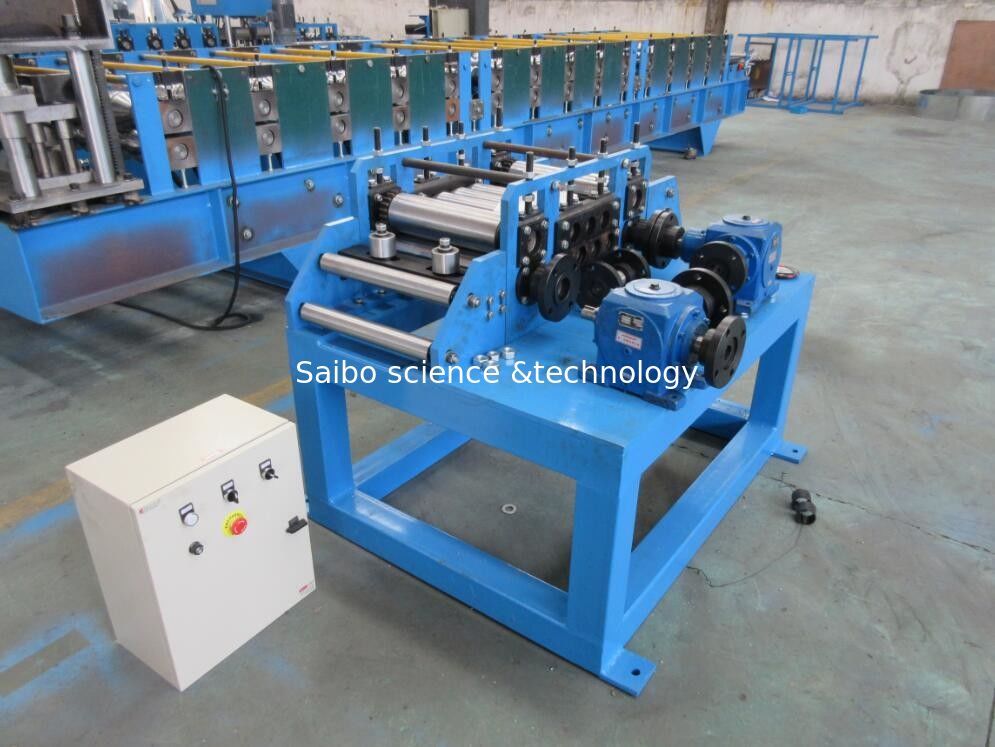

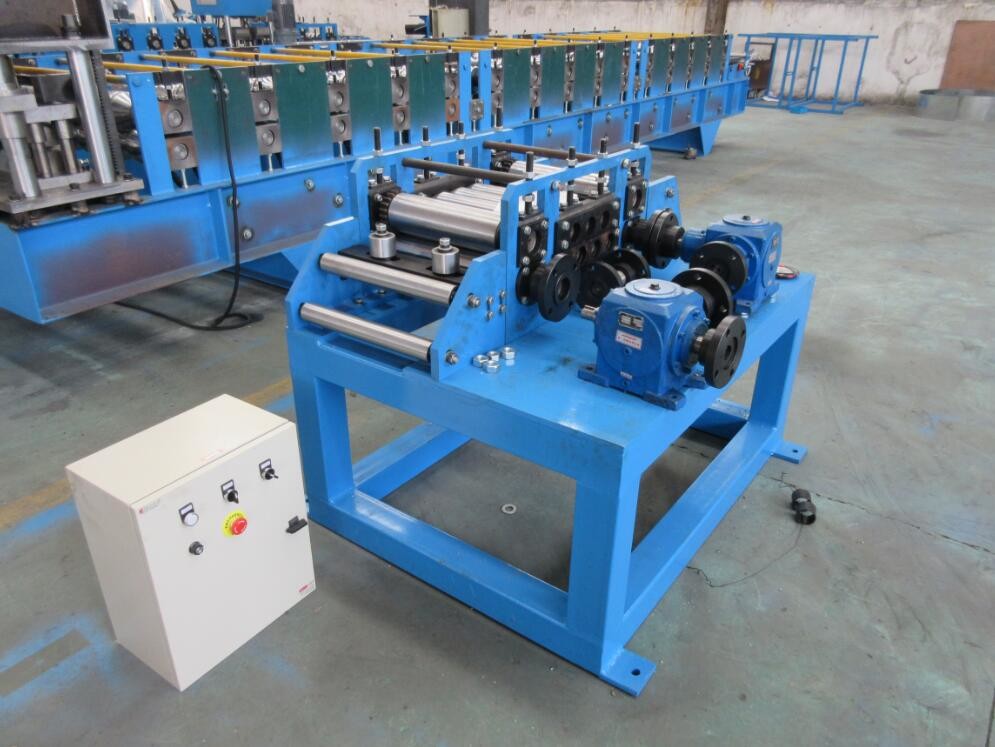

Leveling part





  • Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
3

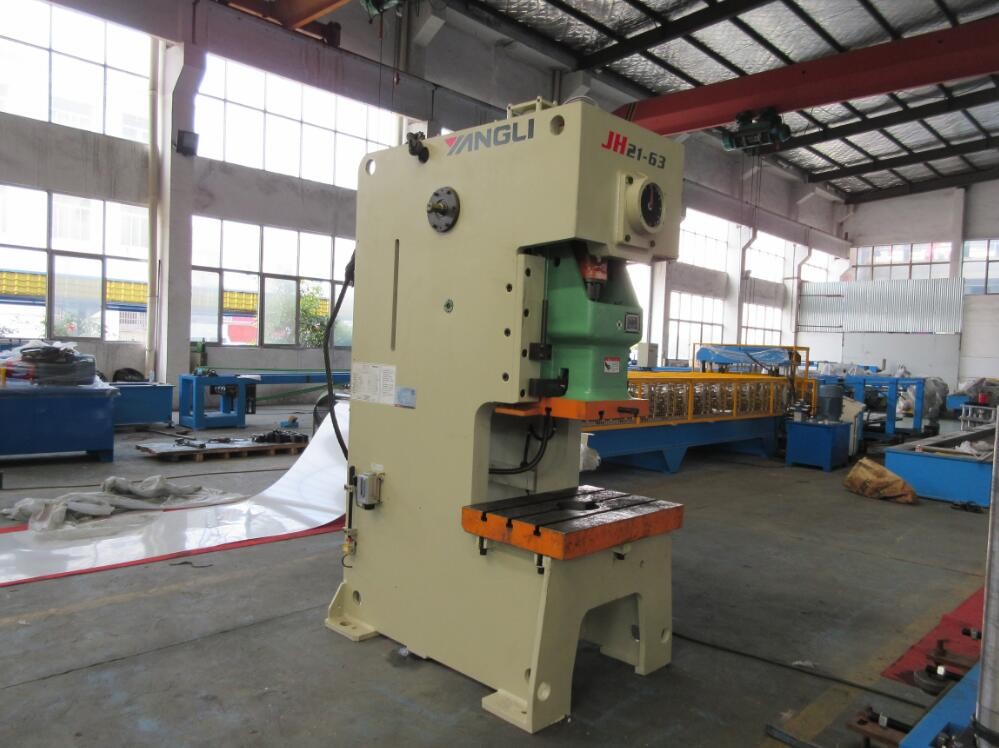

Servo feeding& punching machine



  • Machine adopt servo feeding and punching machine to make high speed and accuracyer: 3kw
  • Punching machine carrying capacity 63T
  • punching machine model: JH21-63
  • Punching machine adopt continue punching
  • Brand of punching machine: Yang Li
4

Roll forming





  • Roller material: Gcr15, 58-62,HRC hardness and chrome plated surface
  • Shaft diameter: ¢100mm material: 45# forge steel
  • three rows of rollers to make the 3 different sizes.
  • Drive: by chain
5

Cuttings system









  • Cutting after forming: Cut the sheet after roll forming to required length
  • Cutting Type: hydraulic stop cutting
  • 3 sets of cutting blade
  • Length measuring: Automatic encoder length measuring, brand: Omron
6

Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved



4. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one
year.
