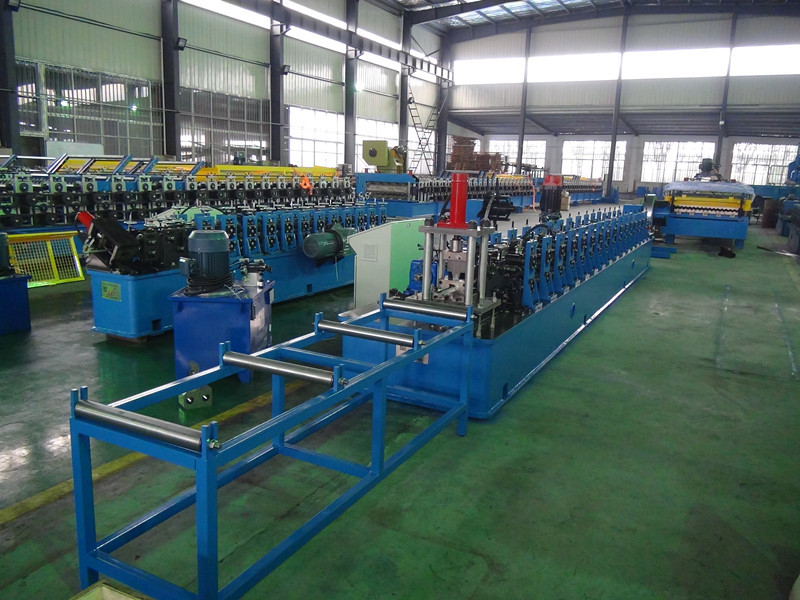

Hydraulic Ceiling Channel Roll Forming Machine Steel Plate Welding Structure 7.5KW

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Stud Panel Roll Forming Machine Power: 7.5KW+5.5kw
Steel Thickness: 1.4mm Decoiler: Manual Or Hydraulic
Station: 16 Stations + One Station For Rectify Roller Material: Gcr15
Structure: Steel Plate Welding Drive: By Chain

Product Description

1. Specification of the material

1 Suitable Material Galvanized steel
2 Width of the raw material Acording to the final profile
3 Thickness 1.4mm



2. Machine Detailed Parameters

1 Roll Forming



Steel stud roll forming machine



2 Machine structure



Wire-electrode cutting structure
3 Total power

Motor power-7.5kw

Hydraulic power-5.5kw
4 Roller stations



bout 18 stations + one station for rectify >



5

Productivity



0-15m/min
6

Drive system



By chain
7

Diameter of shaft



¢70mm solid shaft
8

Voltage





Customized

9

Color Of The Machine



Yellow and blue

10

Deliver Time



70 days
11

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

Hydraulic Ceiling Channel Roll Forming Machine Steel Plate Welding Structure 7.5KW



4. The Chart of Process Flow

Hydraulic Ceiling Channel Roll Forming Machine Steel Plate Welding Structure 7.5KW





5. Specification of Components

(1) 3T Manual Un-coiler

  • Adopt automatic hydraulic system for expand
  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual



(2) Main Roll Forming Machine

  • Roller material: Gcr15
  • Shaft diameter: ¢70mm material: 40CR with quenching and tempering
  • Main frame by steel plate welding
  • Machine structure: Wire-electrode cutting

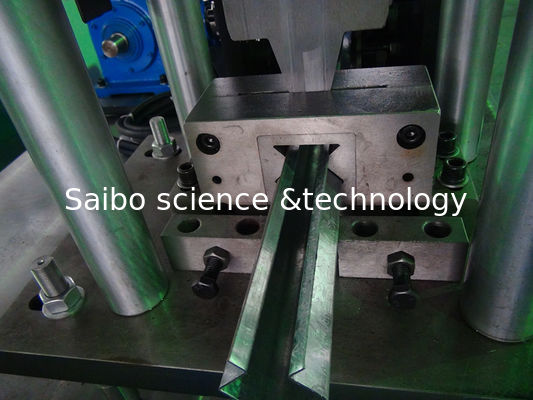

(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
