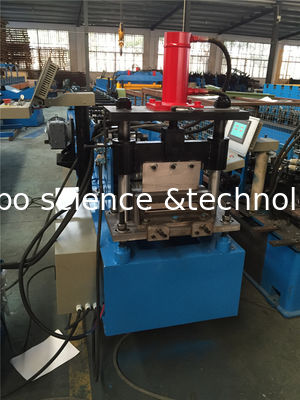

Blue Ceiling Sheet Metal Roll Forming Machines Australia Standard Fencing Frame

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Four size
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Steel Stud Roll Forming Machine Hydraulic Power: 5.5kw
Steel Thickness: 0.4-1.0mm Decoiler: Manual
Station: 18-20 Stations Roller Material: 45# Forge Steel
Structure: 350H Steel Welding Drive: By Chain

Product Description

YX51-60 Stud Roll Forming Machine Australia standard fencing frame 40GP container



1. Specification of the material

1 Suitable Material GI, PPGI
2 Width of the raw material According to the final
3 Thickness 0.4-0.8mm



2. Machine Detailed Parameters

Roll Forming



Fencing frame roll forming machine



Machine structure



Wall panel structure
Total power

Motor power-5.5kw

Hydraulic power-4kw



Roller stations



 18 stations

Productivity



0-15m/min

Drive system



By chain,1.0 inch

Diameter of shaft



¢56mm solid shaft

Voltage





380V 50HZ, 3 PHASE

Color Of The Machine



Yellow and blue

Deliver Time



70 days

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

Blue Ceiling Sheet Metal Roll Forming Machines Australia Standard Fencing Frame



4. The Chart of Process Flow

Blue Ceiling Sheet Metal Roll Forming Machines Australia Standard Fencing Frame





5. Specification of Components

(1) 3T Manual Un-coiler

  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Bound of expand &fight: 380mm—520mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual



(2) Main Roll Forming Machine

  • Roller material: #45
  • Shaft diameter: ¢56mm material: 45# forge steel
  • Machine structure: Wall panel cutting



(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
  • Touch screen: MCGS

6. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
