7.5kw Corrugated Sheet Metal Roll Forming Machine With Electrical Decoiler

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: YX19-76-684
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Corrugated Roll Forming Machine Power: 7.5KW+4kw
Size Of Purlin: YX19-76-684 Steel Thickness: 0.3-0.8mm
Decoiler: Electrical Station: About 16 Stations
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Container: 20GP

Product Description

7.5kw Corrugated Roll Forming Machine electrical decoiler 20m/min speed



YX19-76-684 Corrugated Roll Forming Machine



1. Specification of the material

1 Suitable Material PI/ PPGI
2 Width of the raw material 845mm
3 Thickness 0.3-0.8mm




2. Machine Detailed Parameters

1

Roll Forming Machine



YX19-76-684
2

Machine structure



Wall board structure
3 Total power

Motor power-7.5kw

Hydraulic power-4kw

4

Roller stations



About 16 stations
5

Productivity



0-20m/min
6

Drive system



By chain
7

Diameter of shaft



¢70mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Color Of The Machine



Bule and yellow
10

Deliver time



60 days
11

Terms Of Payment



30%T/T 70% pay before shipment



3. Profile drawing

7.5kw Corrugated Sheet Metal Roll Forming Machine With Electrical Decoiler

4. The Chart of Process Flow



Manual Decoiler—Roll Forming—Cutting—Out table

7.5kw Corrugated Sheet Metal Roll Forming Machine With Electrical Decoiler





5. Specification of Components

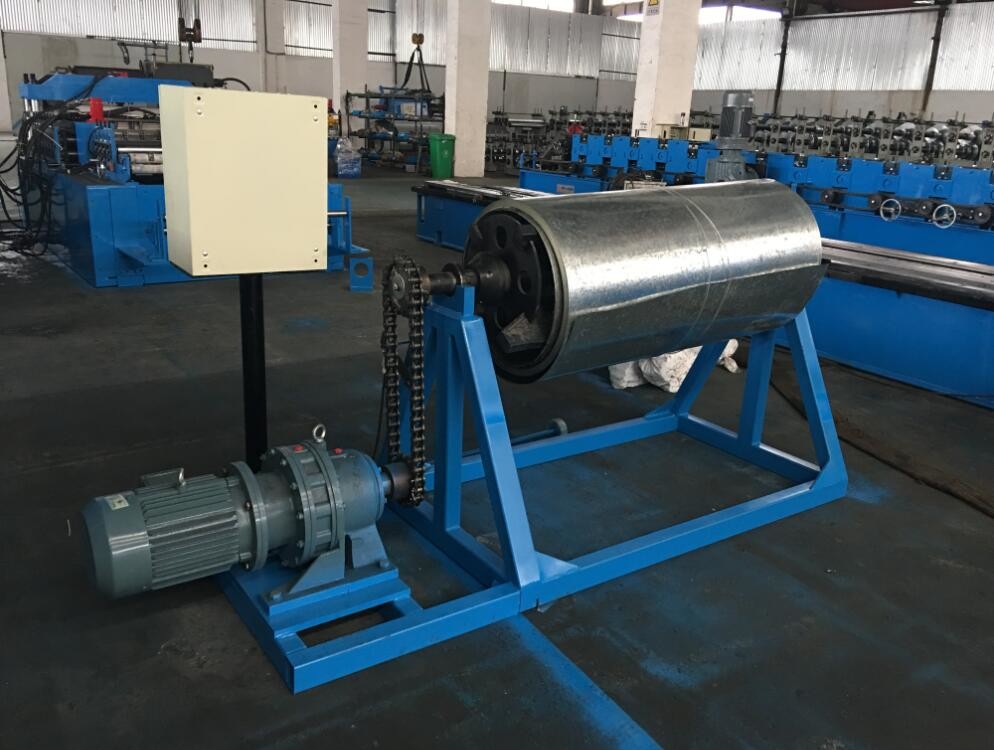

(1) 5T electrical Un-coiler

  • Width of feeding: 1000mm
  • Capability: 5 Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: motor, 5.5kw

(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering



(3) Machine Structure

  • Main frame by 350H beam welding
  • Machine structure: wall board



(4) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization
  • Touch screen: MCGS
  • Inverter: YASKAWA
