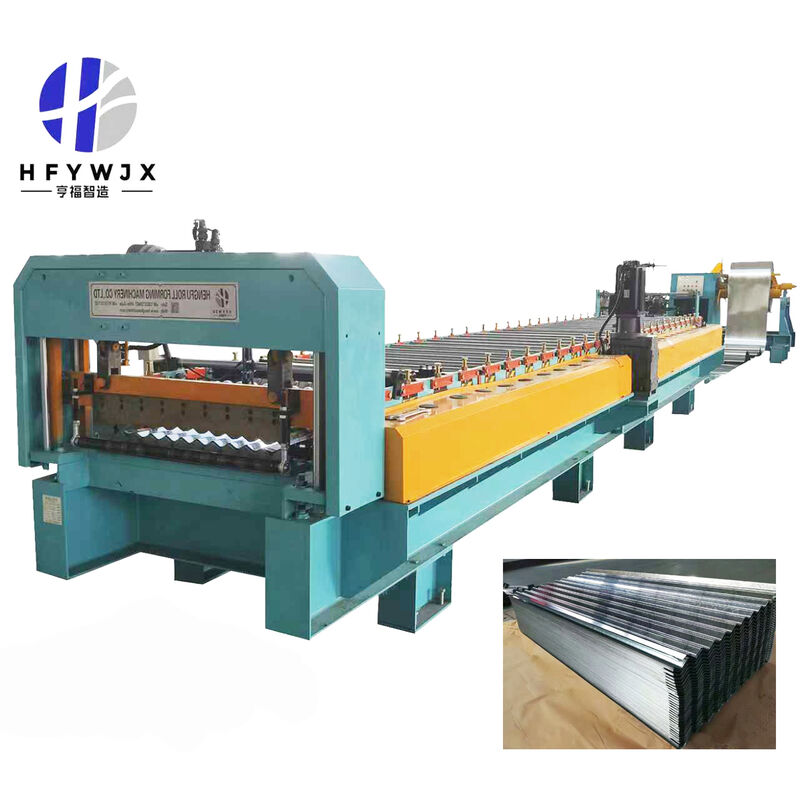

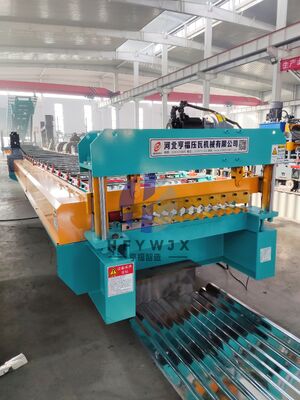

Corrugated Sheet Roll Forming Machine With Intelligent PLC Control

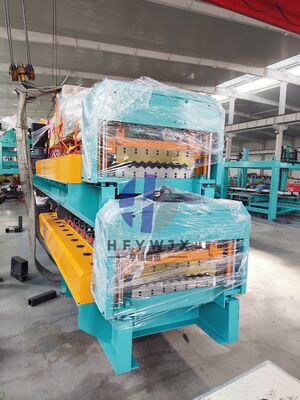

The Corrugated Galvanized Steel Step Tile Double Layer Roll Forming Machine is an advanced, space-saving solution designed for producing two different roofing profiles on a single machine. By integrating double-layer forming technology, it enables manufacturers to efficiently switch between corrugated sheets and step tiles, significantly improving production flexibility while reducing equipment investment.

Suitable for processing galvanized steel and color-coated steel, this machine delivers high-quality roofing panels widely used in industrial and residential construction.

• Robust Construction: Built with strong 300H steel frame and equipped with 13-11 forming stations for upper and lower layers, ensuring excellent structural stability and precise forming performance
• Premium Components: Rollers made of high-grade 45# steel with chrome plating treatment provide superior wear resistance and ensure smooth, scratch-free sheet surfaces
• Enhanced Durability: Φ70mm solid shaft enhances durability and guarantees stable operation even under continuous production conditions
• Efficient Transmission: Chain-driven transmission system ensures synchronized rotation of all rollers and uniform force distribution during forming
• High Production Speed: Forming speed of up to 35 meters per minute offers high production efficiency while maintaining consistent profile accuracy
• Intelligent Control: PLC intelligent control system enables fully automated operation, allowing easy parameter setting and precise workflow monitoring
• Precision Cutting: Equipped with hydraulic system and guide column shearing device for precise, clean cutting without damaging coating surfaces

Manufactured by Dongguang Hengfu Roll Forming Machine Co., Ltd., this machine reflects strong engineering expertise and strict quality control standards. The company is recognized for its advanced R&D capabilities, high-precision manufacturing, and comprehensive after-sales service.

With advantages such as multifunctional design, stable performance, and long service life, this double-layer roll forming machine is a professional and cost-effective choice for customers seeking to expand production capacity and improve competitiveness in the roofing sheet industry.
