Full Automatic Horizontal Barrel Corrugation Machine PLC Control System And 750mm-1250mm Rolling Width

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Tile Type:

Colored Steel

Certification:

CE, SGS

Condition:

New

Customized:

Customized

Usage:

Roof, Wall, Floor

Transmission Method:

Electric

Electronic Control System:

PLC

Transport Package:

Plastic Film & Steel Wire Fixed

Specification:

6000mmx4000mmx1500mm

Package Size:

600.00cm * 400.00cm * 150.00cm

Package Gross Weight:

Package Gross Weight

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

barrel corrugation machine plc

automatic plate forming machine

automatic barrel corrugation machine

Product Description

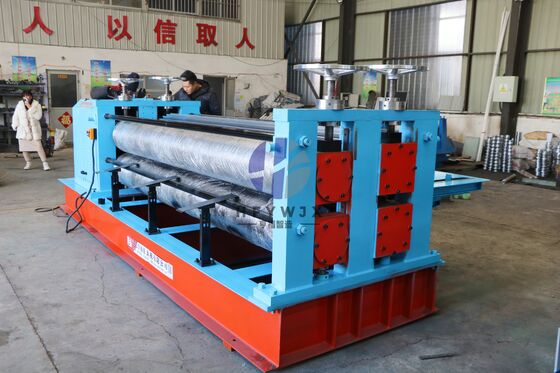

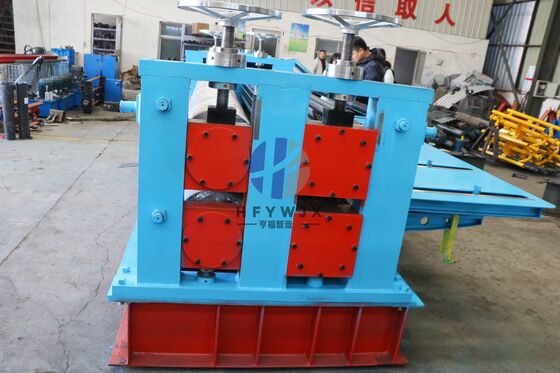

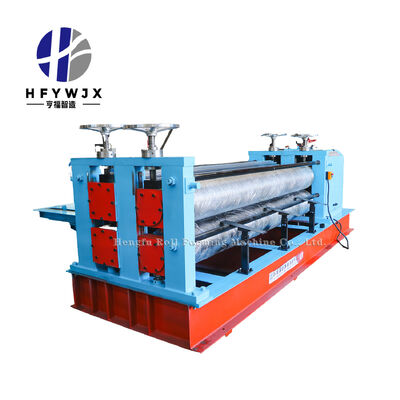

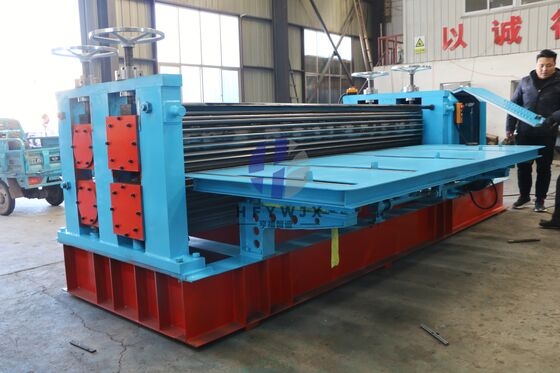

Full Automatic Horizontal Barrel Corrugated Machine

The Horizontal Barrel Corrugated Machine is a professional roll forming device engineered for high-precision processing of thin metal sheets. Its core specifications include a rolling width range of 750mm to 1250mm and compatibility with 0.14-0.3mm thick galvanized or color steel sheets. Powered by a 11kw motor with a 380V voltage supply, the machine adopts a welded sheet structure, ensuring robust mechanical performance for long-term operation.

Equipped with a PLC control system, the machine delivers intelligent and automated production capabilities. The chain transmission system, combined with motor reducer drive, ensures stable and efficient power transfer. The chrome-plated rollers play a critical role in maintaining the smooth surface of the molded panels, preventing any marks or scratches during the high-speed corrugation process.

Designed for full-automatic operation, this machine significantly boosts production efficiency while reducing labor costs. It is widely applied in the construction industry for manufacturing roofing, wall, and floor panels. The electric transmission method simplifies operation and maintenance, making it suitable for both small-scale workshops and large manufacturing factories.

Technical Specifications

Model NO	Horizontal Barrel Corrugated machine
Control System	PLC
Rolling width	750mm-1250mm
Material	Galvanized steel sheet, color steel sheet
Motor	11kw
Voltage	380V
Thickness	0.14-0.3mm
Transmission	Chain
Transmission Method	Electric
Usage	Roof, wall, Floor
Automation	Full-Automatic
Origin	Cangzhou, Hebei

Product Gallery

Frequently Asked Questions

How many people are required to operate the machine?

It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.

Do you have customers for your equipment in our country?

Yes, we have established customers in the Middle East, North Africa, and various European countries.

What service can you provide before order?

We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Does the machine require disassembly for transport?

The core structure remains intact; only the auxiliary components are removed to ensure that precision is maintained.

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
