Sheet Metal Forming Equipment / Top Hat Roll Forming Machine 16 Stations with Rectify

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Hat profile
Minimum Order Quantity: 1 set
Packaging Details: Suitable for ocean shipment
Delivery Time: 60 working days after received deposit
Supply Ability: negotiation
Contact Now
Detail Information
PLC Brand: Mitsubishi Motor Brand: Siemens
Encoder: Omron Solenoid Valve: Yuken
Transducer: YASKAWA Touch Screen: Mitsubishi
Limited Switch: Panasonic Servo Motor: Misubishi
Button: Panasonic

Product Description

With Framous Electric elements Top Hat Roll Forming Machine 16 Stations with Rectify

High Speed Hat roll forming machine

Spectification

1Roller materialGcr15
2Roller station16 stations+ one station of rectify
3Shaft diameter¢70mm
4Machine structurewire electrode cutting
5Machine framewhole plate welding
6Feeding modeFeeding is adjustable by hand wheel
7Machine power30kw+11kw
8Servo power4kw
9Material of blade mouldCr12, 58-62 HRC hardness
10Cutting systemhydraulic track cutting system
11Suitable materialGi, 0.8-2.0mm
12Driven systemby gear box
13Speed50m/min
14Flatten system7 rollers, Up 3 rollers, down 4 rollers
15Machine include auto stacker
16Machine include 3T double head hydraulic un-coiler
17Machine include cooling system





Work flow
3T Double head hydraulic de-coiler→ Flatten→ Roll forming→ Track cutting→ finished supporter.
Sheet Metal Forming Equipment / Top Hat Roll Forming Machine 16 Stations with Rectify
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.

6) Q: Do you have this roof panel roll forming machine in stock?
A: No, machine is made to order.


Components details

De-coiler:
3T hydraulic double head de-coiler, maximal take 3Tons x2, Inner diameter 380-520mm, coil width: 590mm, hydraulic motor power: 4kw:

Leveling part
Adopt single flatten system, 7 rollers (upper is 3 rollers, down is 4 stations) to make the material flatten. Feeding roller diameter: 40Gr, ¢100mm, power: 11kw. Max feeding width: 700mm.

Feeding device
Adjust center of the forming rollers and sufficient length to prevent lateral movement of the strip on its entry to forming section.

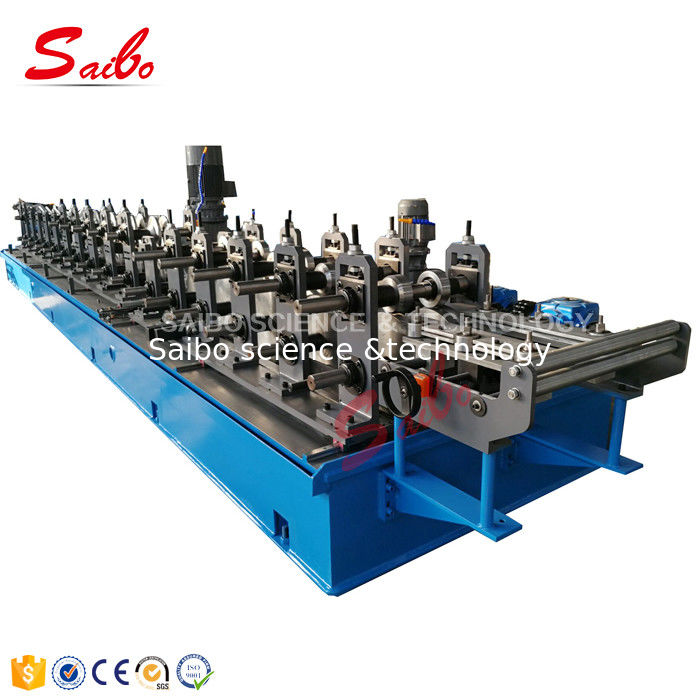

Roll forming system
Roll forming system consist of machine frame, transmission parts and roll forming rollers etc. The frame consists of base frame and wire-electrode cutting stations, base with welded sections; ensure the equipment rigidity and beautiful appearance. The main frame provided the base to the whole transmission and roll model, ensure the rolling action in a relatively stable framework. The transmission consist of the power source and transmission components, the power source is reduced motor, transmission part is composed by gear box, from the power out of the motor through the chain and wheel to the lower roller in the roll forming machine, and then through the gear box to achieve the mold’s accordingly action. Roll model consist of rollers, axles and adjustments, forming roll by the CAD software specifically optimized design and precision machining by the CNC machine tools to ensure the panel’s and size’s accuracy. Upper and lower roller use screw and spring adjustment, make the production of the material with different thickness within the limits prescribed range, as long as the adjustment screw that can be easily reached. The profile’s height and width can adjust by PLC.

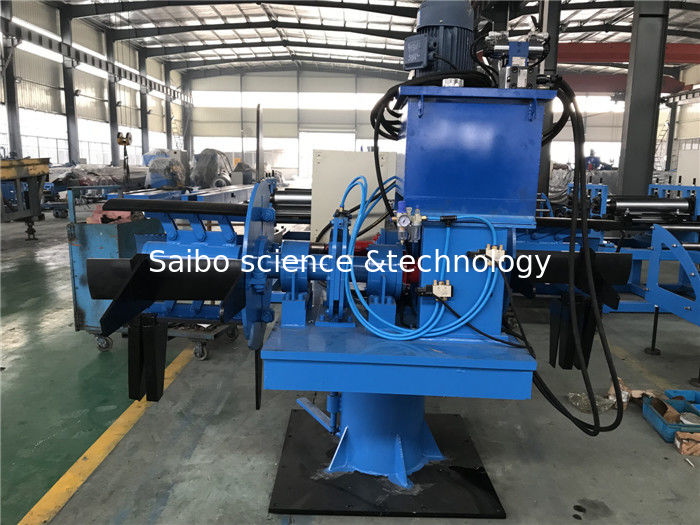

Track cutting system
Profile transversal cutting device units allowing to cut the bent profile without damaging the metal coating and to assure a smooth cut included. Cut the sheet after roll forming to required length. The cutting length is controlled by PLC. Change the cutter to realize cutter different profiles.

Rectify device
Function: make the end product in straight, left and right, up and down

The protect cover
To avoid accidents, the machine will be covered with the protective mesh. It is easy to take off when need adjust machine.

Electric system

  • Adopts PLC control technology, frequency adjust speed technology, realize the automatic production.
  • System provides touch screen, which can set the order, for example length, and quantities and so on.
  • Operation type: Touch screen + button
  • Encoder calculates the number, which has calculation and measure the length function.
