| Place of Origin: | China |
|---|---|
| Brand Name: | Saibo |
| Certification: | CE/ISO |
| Model Number: | Hat profile |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Suitable for ocean shipment |
| Delivery Time: | 60 working days after received deposit |
| Supply Ability: | negotiation |
| PLC Brand: | Mitsubishi | Motor Brand: | Siemens |
|---|---|---|---|
| Encoder: | Omron | Solenoid Valve: | Yuken |
| Transducer: | YASKAWA | Touch Screen: | Mitsubishi |
| Limited Switch: | Panasonic | Servo Motor: | Misubishi |
| Button: | Panasonic | Container Need: | 40GP |
| Machine Color: | For Customer Request | ||
| High Light: | Rolling Shutter Strip Making Machine,Corrugated Iron Sheet Making Machine |
||

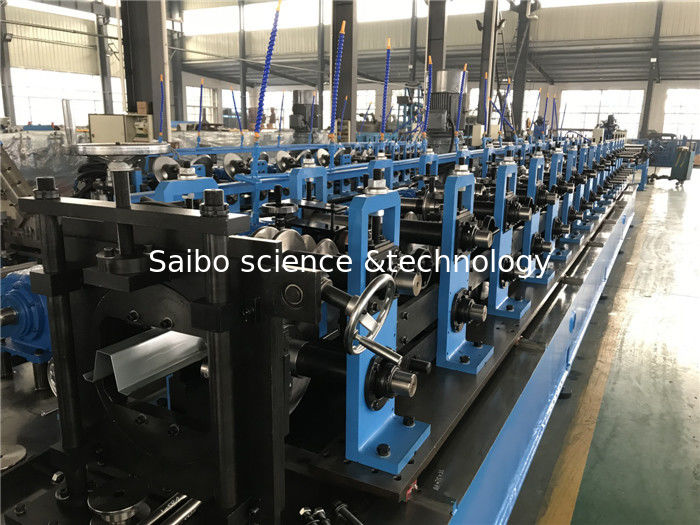

16 Stations with Rectify Top Hat Roll Forming Machine With Framous Electric elements
How to maintain the machine
1. Gear box
① Every three months check the oil in the gear box if it is enough.
② Every six months check the oil in the gear box if it is dirty, if dirty please replace all. Noted, before you change the oil, put away the old oil first, then add new gear oil.
③ Gear oil No: 330# gear oil.
④ How much gear oil you need to add: when add the gear oil, added to the viewport position is ok.
2. Reducer
① Every three months check the oil in the reducer if it is enough.
② Every six months check the oil in the reducer if it is dirty, if dirty please replace all. Noted, before you change the oil, put away the old oil first, then add new gear oil.
③ Gear oil No: 330# gear oil.
④ How much gear oil you need to add: when add the gear oil, added to the viewport position is ok.
3. Screw of cutting system
① Add high speed grease.
② According the attrition of the grease, usually 30 days add one time.
Spectification
| 1 | Roller material | Gcr15 |
| 2 | Roller station | 16 stations+ one station of rectify |
| 3 | Shaft diameter | ￠70mm |
| 4 | Machine structure | wire electrode cutting |
| 5 | Machine frame | whole plate welding |
| 6 | Feeding mode | Feeding is adjustable by hand wheel |
| 7 | Machine power | 30kw+11kw |
| 8 | Servo power | 4kw |
| 9 | Material of blade mould | Cr12, 58-62 HRC hardness |
| 10 | Cutting system | hydraulic track cutting system |
| 11 | Suitable material | Gi, 0.8-2.0mm |
| 12 | Driven system | by gear box |
| 13 | Speed | 50m/min |
| 14 | Flatten system | 7 rollers, Up 3 rollers, down 4 rollers |
| 15 | Machine include auto stacker | |
| 16 | Machine include 3T double head hydraulic un-coiler | |
| 17 | Machine include cooling system | |
Work flow
3T Double head hydraulic de-coiler→ Flatten→ Roll forming→ Track cutting→ finished supporter.
After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one
year.
Machine loading,packing and shipping
Usually the machies will be transported to the customer's workshop by shipping in containers. Sometimes, it aslo can be deliveried by train containers.
The container that we are use are commonly 20 feet and 40 feet containers. 2 feet and 40 feet high containers and top open containers are used as well.
It depends on the machines the customer ordered. We will try our best to find a most economical way for you.
Machine lodaing pictures
Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
