Automatic Wire Cut To Length Machine 0.3-1.5mm Thickness 20GP Container

China Automatic Wire Cut To Length Machine 0.3-1.5mm Thickness 20GP Container supplier

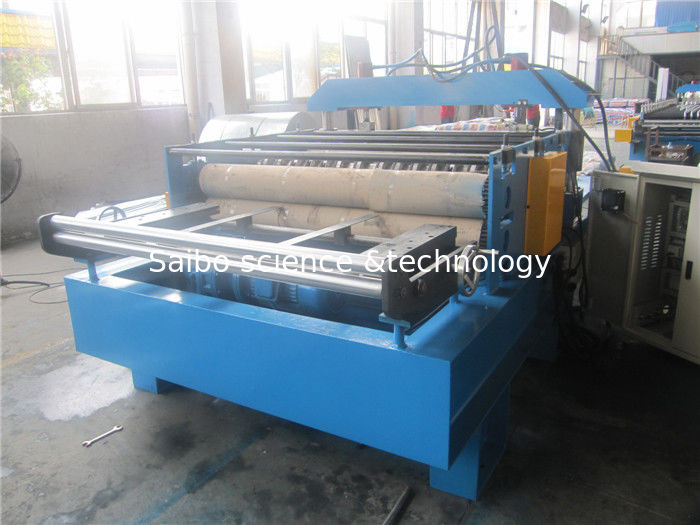

Large Image :  Automatic Wire Cut To Length Machine 0.3-1.5mm Thickness 20GP Container

Product Details:

Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX1250

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 50 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400 sets per year
Detailed Product Description
Product Name: Cut To Length Machine Steel Thickness: 0.3-1.5mm
Decoiler: Manual Power: 7.5KW+5.5KW
Roller Material: #45 Forged Steel With Chrome Station: 2 Stations
Drive: Single Chain Container Need: 1X20GP

Cut To Length Machine



Raw Material:

All of our machine profile is customized, above raw material is only for your reference.

1. Coil width: 1250mm

2. Thickness: 0.3-1.5mm



Layout:

Automatic Wire Cut To Length Machine 0.3-1.5mm Thickness 20GP Container

Manual de-coiler—Feeding—Cutting—Out table



Specifications:

Item NO



Description



Offered specification

1 Roll Forming Machine

Cut to Length Machine



2 Coil width 1250mm
3 Rolling Speed 12-15m/min(not include cutting time)
4 Rolling Thickness 0.3-1.5mm GI
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 5T manual de-coiler
7 Roller Stations 2 stations for feeding
8 Roller Material Rubber roller
9 Shaft Material and DIA ¢85mm, material is 45# forge steel
10 Post cutting Hydraulic cutting slitting
11 Maim Motor Power 7.5kw
12 Hydraulic Station Power 5.5kw
13 Hydraulic Pressure 12-16Mpa adjustable
14 Material Of Cutting Cr12Mov quenching 58-62℃
15 Structure Of The Stations Wall panel
16 Tolerance 3m+-1.5mm
17 Electric Source

380V, 50HZ,3 phase

According to customer’s require



18 Way Of Drive By chain
19 Color Of The Machine Yellow and blue
20 Size of the machine L*W*H about 2.0m*1.7m*1.2m
21 Container Need 1x20 feet


Main Features

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

4. It is very easy to install the equipment and suitable for producing in the factory.

5. The machine has features of low noise and high efficiency.
