High Speed Fly Cutting Purlin Roll Forming Machine With Two Sides Gear Box Driving

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: 100-300
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Supply Ability: 300 sets per year
Detail Information
Product Name: C/Z Purlin Roll Forming Machine Power: 18.5KW+7.5KW+1.5kwX3+2.2kw Servo Motor
Size Of Purlin: 100-300 Steel Thickness: 1.5-3.0mm
Decoiler: Manual Or Hydraulic Station: 16 Stations
Roller Material: Cr12 With Chrome Or Black Treatment Drive: 2 Sides Of Gear Box
Container Need: 1X40GP+1X20GP
High Light:

Rolling Shutter Strip Making Machine

,

Corrugated Iron Sheet Making Machine


Product Description

main speficication:

  • Steel thickness (t): 1.5-3,0 mm;
  • Profile height (h): 100-30000 mm;
  • Flange width (b): 40-100 mm;
  • Flange height (c): 12-20 mm;
  • Maximum hole diameter deviation: +2 mm/-0 mm

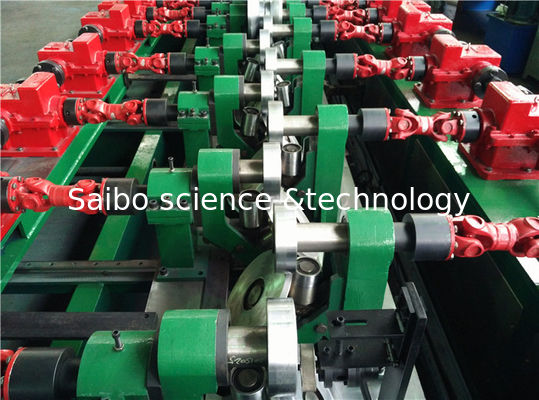

High Speed Fly Cutting Purlin Roll Forming Machine With Two Sides Gear Box Driving 0

1. The Chart of Process Flow

High Speed Fly Cutting Purlin Roll Forming Machine With Two Sides Gear Box Driving 1



Specification

No   Technical Specification & Remark
1

5T hydraulic decoiler



  • Steel coil width: 550 mm;
  • Internal diameter of coil: variable, from 470 mm to 520 mm
  • Maximum coil weight: 5000 Kg;
  • Main motor power: 5.5KW
  • Hydraulic power: 4kw
2

Leveling part



  • Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
  • Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
  • Flattener roller: material is SAE 1045, hardening and tempering
3

     Main Roll Forming Machine



  • Thickness range: 1.5-3.0mm
  • Main motor power:18.5kw
  • Adjust flange and width: by 1.5kwX3
  • Roll station: 16 stations
  • Shaft diameter: ¢76mm material: SAE1045 with quenching and tempering
  • Gear box driving system

4

Fly cutting







  • machine with fly cutting, when cut, the main machine no stop to get the high speed.
  • Hydraulic power: 7.5kw
  • The fly cutting is powered by servo motor, which power is 2.2kw.



5

Correction adjust system



  • Correction of the product sheet to be straight.
6

Hydraulic System



  • Hydraulic power: 7.5kw
  • Working pressure: 20Mpa adjustable
  • Solenoid valve: 2 groups
  • Hydraulic oil: 46# hydraulic oil
  • Quantity :1
7

Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC brand: Panasonic
8

Out table



  • Support the product come out from the machine
  • Quantity: 2 units



4. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
