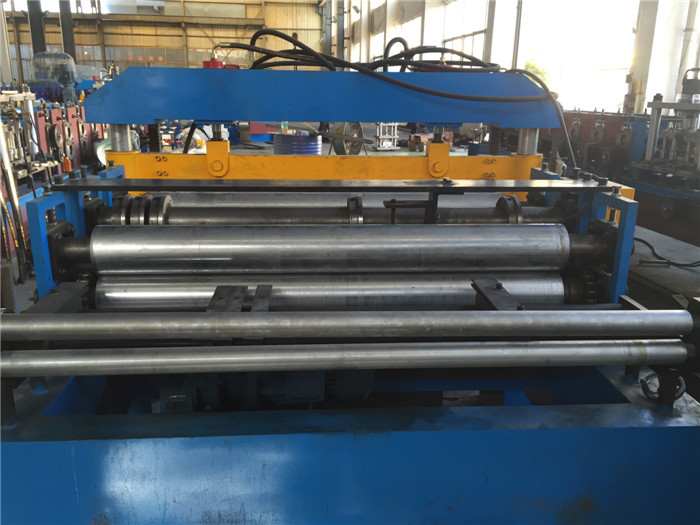

Stainless Steel Coil Slitting Machine 5.5KW PLC Control 5 Ton Manual Decoiler

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/IS09001/SGS
Model Number: YX1250
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Suitable for ocean shipment
Delivery Time: 50 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400 sets per year
Detail Information
Product Name: Steel Coil Slitting Machine Steel Thickness: 0.3-1.5mm
Coil Wicth: 1250mm Power: 5.5KW+4KW
Roller Material: SAE1045 Steel With Chrome Station: 2 Rubber Stations
Container Need: 1X20GP Color: Blue And Yellow
High Light:

Coil Cutting Machine

,

Metal Slitting Machine


Product Description

Steel Coil Slitting Machine



Raw Material:

All of our machine profile is customized, above raw material is only for your reference.

1. Coil width: 1250mm

2. Thickness: 0.3-1.5mm



Layout:

Stainless Steel Coil Slitting Machine 5.5KW PLC Control 5 Ton Manual Decoiler 0

Manual de-coiler—Feeding—Slitting—Cutting—Out table



Specifications:

Item NO



Description



Offered specification

1 Roll Forming Machine

Steel Coil Slitting Machine



2 Coil width 1250mm
3 Rolling Speed 12-15m/min(not include cutting time)
4 Rolling Thickness 0.3-1.5mm GI
5 Control System PLC (Panasonic) as list in the note
6 Un Coiler 5T manual de-coiler
7 Roller Stations 2 stations for feeding
8 Roller Material Rubber roller
9 Shaft Material and DIA ¢85mm, material is 45# forge steel
10 Slitting Maximum in 6 strips
11 Blades of slitting 5 sets of slitting
12 Post cutting Hydraulic cutting slitting
13 Main Motor Power 5.5kw
14 Hydraulic Station Power 4kw
15 Hydraulic Pressure 12-16Mpa adjustable
16 Material Of Cutting Cr12Mov quenching 58-62℃
17 Structure Of The Stations Wall panel
18 Tolerance 3m+-1.5mm
19 Electric Source

380V, 50HZ,3 phase

According to customer’s require



20 Way Of Drive By 1.0inch single chain
21 Color Of The Machine Yellow and blue
22 Size of the machine L*W*H about 2.0m*1.7m*1.2m
23 Container Need 1x20 feet


Main Features

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.

2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

4. It is very easy to install the equipment and suitable for producing in the factory.

5. The machine has features of low noise and high efficiency.
