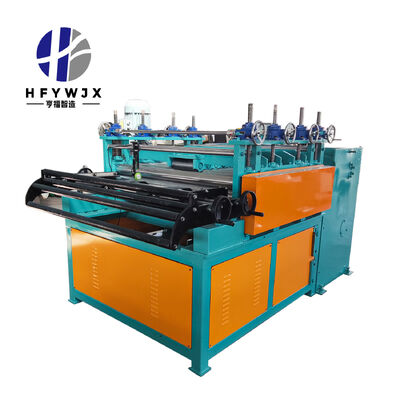

1300mm Stainless Steel Leveling Machine with 7.5KW Motor and PLC Touch Screen Control

Dongguang Hengfu Roll Forming Machine Co., Ltd. specializes in designing and manufacturing the 1.3m Stainless Steel Leveling Machine for high-precision sheet metal leveling and forming. This integrated production line combines uncoiling, guided feeding, roll forming, fixed-length cutting, and finished product output, delivering a complete, stable, and efficient stainless steel processing solution.

With years of manufacturing experience and strict quality control, Hengfu ensures each machine features robust construction, reliable performance, and extended service life.

The machine employs a heavy-duty mechanical design to guarantee stable operation during extended working periods. Built with a 100×100×6mm square tube frame, 40mm thick wall plates, and 90mm solid main shafts, it delivers exceptional rigidity and minimal vibration.

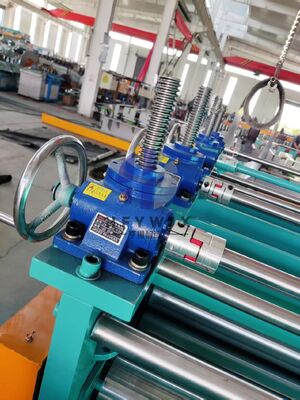

The forming system utilizes 7 upper and 6 lower roller passes with full pressing capability. Rollers are manufactured from 45Cr steel with quenching, tempering, chrome plating, and precision grinding, ensuring smooth surfaces, high wear resistance, and perfect leveling results for stainless steel sheets.

This leveling machine is professionally suited for stainless steel sheets with thicknesses of 1-2mm. It supports a maximum feeding width of 1300mm and an effective forming width of 1250mm, meeting production requirements for most sheet metal processing facilities.

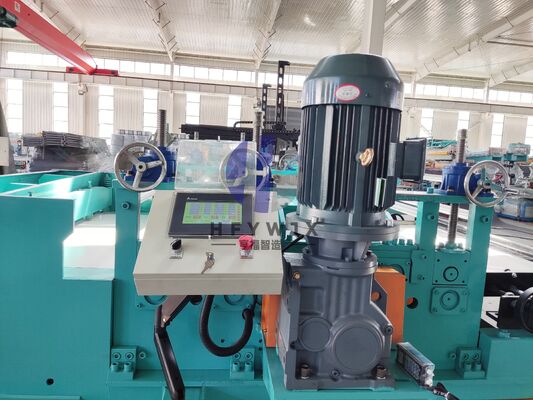

Powered by a 7.5KW high-performance motor and gear transmission system, the machine achieves working speeds of 15-25m/min, significantly enhancing production efficiency while maintaining superior forming quality.

For enhanced precision and operational ease, the equipment features a PLC touch screen control system and rotary counter, achieving length accuracy within ±1mm. The electric shearing system incorporates high-quality Cr12 quenched blades, providing burr-free cutting, low noise operation, and minimal maintenance requirements.

A remote controller is included for flexible and safe operation. All electrical components meet industrial-grade standards to ensure stable and secure performance.

Choose the 1.3m Stainless Steel Leveling Machine by Dongguang Hengfu Roll Forming Machine Co., Ltd., and benefit from stable performance, high precision, low failure rates, and long-term value. This industrial equipment is ideal for metal sheet leveling, cutting, and forming operations, helping customers improve product quality and enhance market competitiveness.
