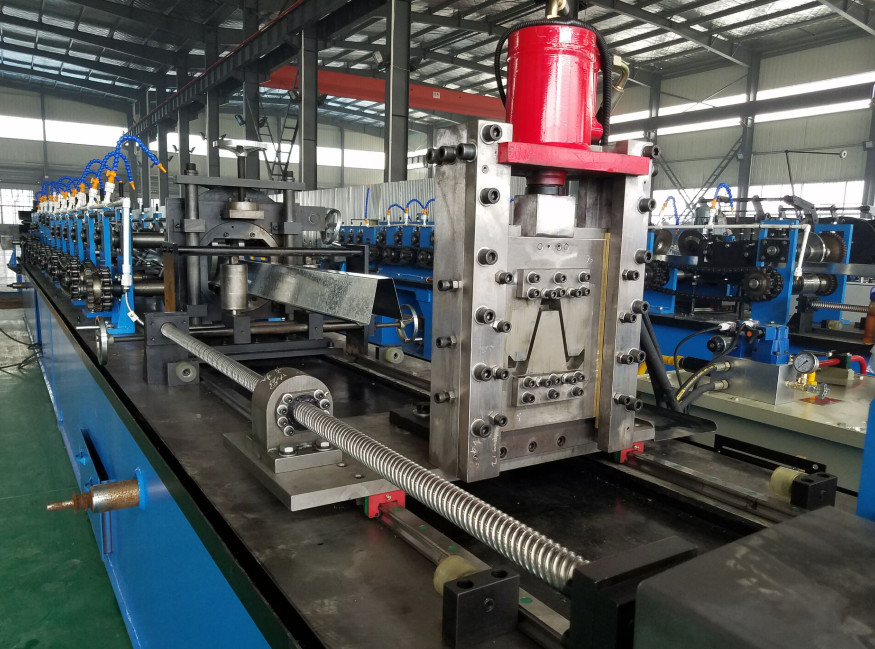

High Speed Omega Solar Roll Forming Machine Drive by Chain 40-50m/min

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Omega
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 90 days
Supply Ability: 300 sets per year
Contact Now
Detail Information
Product Name: Omega Purlin Roll Forming Machine Shaft Diameter: 70mm
Steel Thickness: 2.0mm Decoiler: Hydraulic
Station: 14 Stations+ On Station Of Rectify Roller Material: Gcr15
Cutting System: Track Cutting System Speed: 40-50m/min

Product Description

main speficication:

High Speed Omega Solar Roll Forming Machine Drive by Chain 40-50m/min



1. The Chart of Process Flow

Hydraulic decoiler— Feeding roll formingrectifytrack cuttingstacker



Specification

No   Technical Specification & Remark
1

5T hydraulic decoiler



  • Steel coil width: 550mm;
  • Internal diameter of coil: variable, from 380 mm to 520 mm
  • Maximum coil weight: 5000 Kg;
  • Main motor power: 5.5KW
  • Hydraulic power: 4kw
2

Main Roll Forming Machine



  • Thickness range: 2.0mm
  • Main motor power:18.5kw
  • Roller material: Gcr15 surface with chrome, quenching 58-62
  • Roll station: 14 stations
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Chain driving system

4

Fly cutting







  • Machine with fly cutting, when cut, the main machine no stop to get the high speed.
  • Hydraulic power: 11kw
  • The fly cutting is powered by servo motor, which power is 3kw.



5















Correction adjust system











  • Correction of the product sheet to be straight.
6









Hydraulic System











  • Hydraulic power: 11kw
  • Working pressure: 20Mpa adjustable
  • Solenoid valve: 1 groups
  • Hydraulic oil: 46# hydraulic oil
  • Quantity :1
7

Computer Control Cabinet





  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC brand: Panasonic
8











Auto stacker











  • Main power: 1.5kw
  • Lemgth: 6m



4. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.



5. FAQ

1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .



2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.



3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.



5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.



6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.
